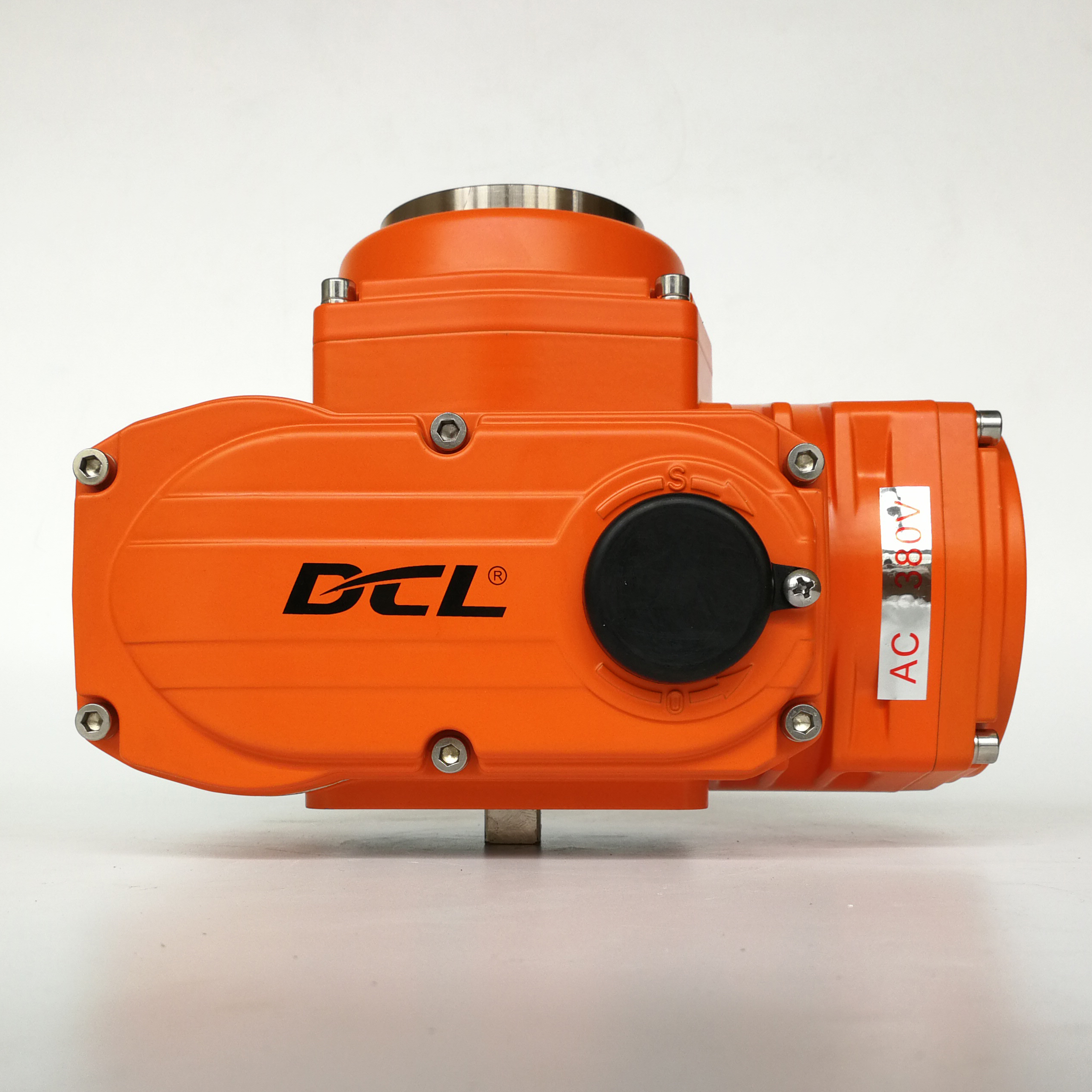

Exd II CT4Gb Explosion Proof 100Nm 30S IP67 Valve Actuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Explosion Proof Fail Safe Electric Actuator | Standard Torque | 50Nm To 600Nm |
|---|---|---|---|
| Standard Time | 20s To 45s | Package | Small Package |
| Type | Quarter Turn Actuator | Feature | Over Torque Protection |
Product Description
Explosion proof fail safe electric actuator with small package / installation at any angle
The DCL-Ex series fire-safe electric actuators are designed with a fail-safe function. Following an explosion or emergency shutdown, once backup power is restored, the actuator will automatically drive the valve to a pre-set safe position—such as full open or full close—even if the external control signal is unavailable. In addition, the self-locking mechanism ensures the valve remains securely at its last known position without hunting or unintended movement.
The DCL-Ex series actuators are suitable for more than 90% of explosive gas environments, excluding coal mine (colliery) applications. With proven field performance, over 10,000 DCL explosion-proof actuators have been operating safely for more than a decade in hazardous industrial environments.
All DCL-Ex actuators have undergone rigorous testing conducted by CSA, covering both Zone and Division systems in full compliance with UL and CSA standards. ATEX certification has been obtained, while CE and RoHS 3 compliance have been verified through testing by SGS.
Specification:
| Type | Ex05E | Ex10E | Ex20E | Ex40E | Ex60E |
|---|---|---|---|---|---|
| Power | AC110V/AC220V | ||||
| Output Torque | 50Nm | 100Nm | 200Nm | 400Nm | 600Nm |
| Acting Time | 20S | 30S | 30S | 30S | 45S |
| Turning Angle | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Motor Power | 10W | 25W | 40W | 90W | 90W |
| Rated Current | 0.24/0.15A | 0.57/0.30A | 0.63/0.35A | 1.12/0.64A | 1.18/0.67A |
| Total Weight | 3.0kg | 5.0kg | 5.5kg | 9.5kg | 10.0kg |
| Input Signal | 4-20mADC,1-5VDC,2-10VDC | ||||
| Output Singal | 4-20mADC | ||||
| Basic Error | not more than ±1% | ||||
| Reciprocating Error | not more than 1% | ||||
| Dead Space | 0.5%-5.0% adjustable | ||||
| Damping Characteristic | 0 times | ||||
| Repeating Error in Actuator | ≤1% | ||||
| Insulating Resistance | 100MΩ/500VDC | ||||
| Withstand Voltage Class | 1500VAC 1minutes | ||||
| Protection Class | IP67 | ||||
| Explosive-proof grade | Exd II BT4Gb | ||||
| Installation Angle | 360°at any angle | ||||
| Electric Interface | 2-M20*1.5 explosion-proof plug,clients should install corresponding explosion-proof cable connector when using according to the cable selected. | ||||
| Ambient Temperature | -20℃~+60℃ | ||||
| Optional Function | Over-torque protector/Dehumidify Heater/Passive contact switch | ||||
| Remark | Any other input or output signal needed, please specified in purchase order. | ||||
Features:
- Quarter turn operation with mechanical limits
- Heavy duty motor with thermal overload protection
- Rugged IP68/NEMA 4X aluminum alloy housing
- C3 level corrosion resistance with powder coated, 1000 hours salt spray
- Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
- Over torque protection is available
- Self-locking high strength gear train to keep last known position
- Standard ISO5211 direct installation
- Manual override with Allen wrench or handwheel
- CSA certification in process per UL and CSA standard/CE marked/ATEX
