Heavy Duty Rate 80% Valve Bracket For Multi Turn Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-MZZ
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Total Weight 1.2KG Power Supply 24VDC
Motor Power 6W To 10W Protection Grade IP67 NEMA4/4X
Installation Angle 360° Ambient Temperature -25℃~+55℃ / -13°F~+131°F
High Light

80% Multi Turn Actuator

,

RoHS multi turn Actuator

,

DCL Multi Turn Actuator

Leave a Message
Product Description

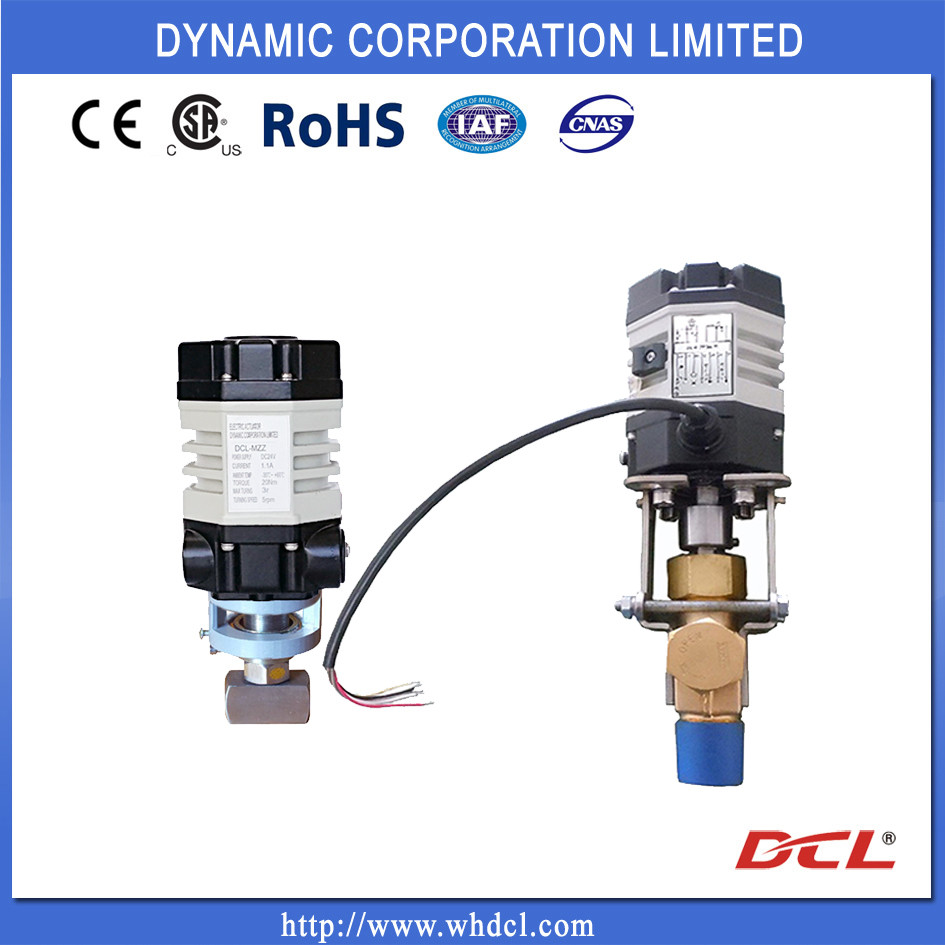

Customized design valve bracket for multi-turn actuator/heavy duty rate 80%



DCL-MZZ dimension and parameters.pdf



Features

  • 3D design valve bracket for different sizes of linear stroke valves smaller than DN65
  • Heavy duty rear earth permanent magnet DC brushless motor with duty rate 80%
  • Super small size with aluminum alloy housing for protection from dust and water
  • Thermal bonded polyester coating to protect against corrosion
  • Manual override with Allen handle
  • Maximum 7 turns can be set and adjusted flexible
  • CE marked and tested by SGS



Description



DCL provide customized valve bracket design service for both quarter turn and multiturn valve. Automatic diaphragm valves or needle valves, are commonly actuated by pneumatic actuators or linear electric actuators, and integral designed with actuators. While for some manual valve that needs to upgrade to control valve, there is no need to change whole valve. DCL can help customer to design and manufacture a suitable valve bracket per valves’ CAD drawings.

DC brushless motor’s speed is proportional to voltage and inversely proportional to output torque. Its output torque is proportional to current. So current value is used to precisely show real-time torque value and do over torque protection. This motor provides large start-up torque with strong overload capability. Permanent magnet rotor has lower temperature rise during operation than AC motor.





Specification:



Type DCL-MZZ
Power DC24V
Motor Power 20W
Rated Current 1.1A
Standard Time/Torque 18Nm
Optional Time/Torque
Turning Angle 3r
Total Weight 1.2Kg
Insulating Resistance 100MΩ/250VDC
Withstand Voltage Class 500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25℃~+55℃
Fuse 2A



Heavy Duty Rate 80% Valve Bracket For Multi Turn Actuator 0

Heavy Duty Rate 80% Valve Bracket For Multi Turn Actuator 1
