Valve Position Feedback Signal IP67 60S Fail Safe Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-05C/10C/20C/40C/60C/100C/160C/250C
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Fail Safe Electric Actuator Standard Torque 50Nm To 2500Nm/442in.lbs To 22125in.lbs
Standard Time 20S To 75S Power Supply 24VAC/110VAV/220VAC
Installation Angle 360° Total Weight 2.5KG To 20KG
Motor Power 8W To 140W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Protection Grade IP67 NEMA4/4X Certificated CE Marked
Operation Quarter Turn Type Self-locking
High Light

60S Fail safe actuator

,

400Nm Fail Safe Electric Actuator

Leave a Message
Product Description

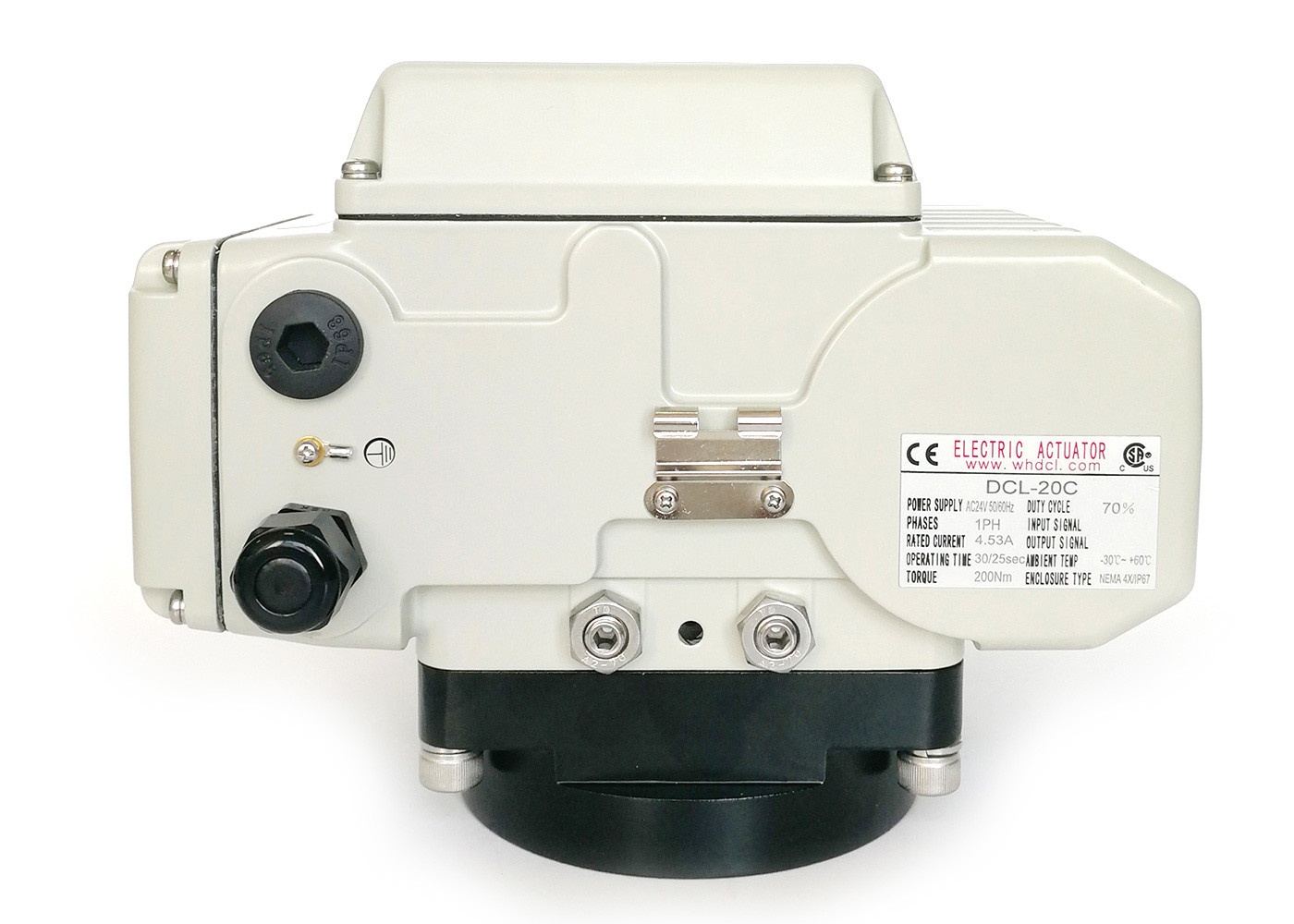

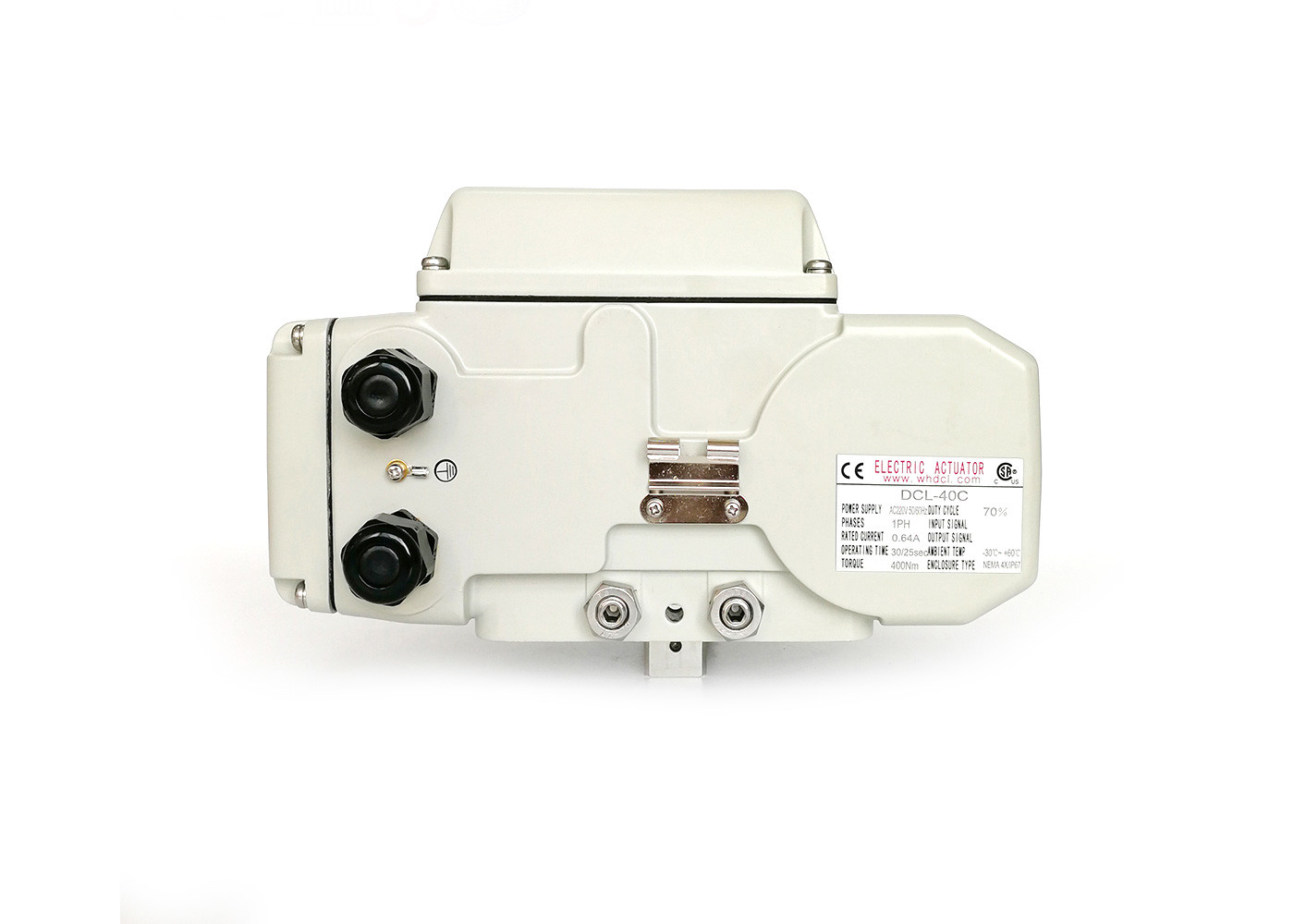

Fail safe electric actuator with valve position feedback signal/potentiometer / CE marked



Features

  • Quarter turn operation
  • Torque from 50Nm to 2500Nm/442in.lbs to 22125 in.lbs
  • Precision conductive plastic potentiometer made by Sakae Japan with ≤ 0.5% error, for continuous resistance output signal of valve position
  • Strong corrosion resistant with external powder coated aluminum alloy housing cover
  • Heavy duty motor with thermal overload protection
  • Anti-off bolt, alloy steel spur gears and final stage aluminum bronze worm sector gear
  • Self-locking at any position when power off
  • An electro-mechanical brake is NOT required
  • Limit switches to confirm valve position/potentiometer or position transmitter optional
  • ISO 5211 multi-flange mounting
  • manual handle is safe, reliable, labor-saving, small
  • All parts are certified by CSA, complied to UL 429 and CSA C22.2



Specification:


Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm   10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm   19.5Kg
DCL-250 75S/2500Nm   20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm   3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg



Actuator Type Butterfly Valve(PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200





Description



DCL C model electric actuator is equipped with potentiometer to feedback continuous resistance signal. Always used for some control system that can transfer resistance signal to current signal or voltage signal outside actuator. The resistance value output is proportional to valve position, 500Ω and 1000Ω range are optional. Two auxiliary micro limit switches can be added to feedback passive signals of full open and full close position.

All DCL common series electric actuator have got CSA certification both per USA’s UL standard and Canadian CSA standard from year 2013. Explosion proof electric actuator is on process of CSA testing and certification and estimated to passed all tests and get certified on Q3 or Q4 year 2020. Moreover, DCL’s products passed all CE tests and complied to RoHS 3.0, tested by SGS. DCL’s products are both CSA and CE marked.
