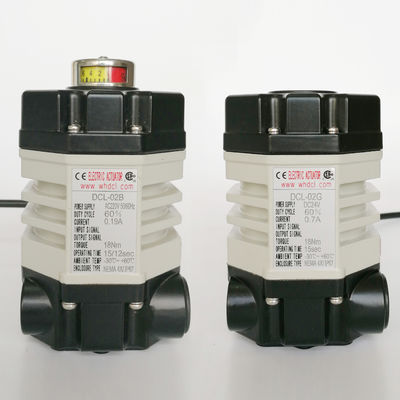

Electric Positioning 1.2KG 6W DCL Quarter Turn Actuator

  • Electric Positioning 1.2KG 6W DCL Quarter Turn Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL E model
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 3000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Quarter Turn Electric Actuator Motor Power 6W To 140W
Protection Grade IP67 NEMA4/4X Feature Corrosion Resistant Actuator
With Electric Positioning System Total Weight 1.2KG To 20KG
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Color Grey/Black Or Customized
High Light

IP67 Smart Electric Actuator

,

DCL Quarter Turn Actuator

,

6W valve Actuator
Leave a Message
Product Description

DCL-05E~250E parameters.pdf



Corrosion-resistant quarter turn electric actuator with electric positioning system


Specification

Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-160E DCL-250E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 1600Nm 2500Nm
Acting Time 20S 30S 30S 30S 45S 30S 48S 75S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20℃~+55℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.



Features

  • Unique integral motor/control pack/ housing design with very small size and beautiful appearance
  • 1000 hours salt spray and C3 level corrosion resistance
  • Valve position indicator/flat indicator or convex indicator available
  • Quarter turn with proportional to input control signal, mechanical limits
  • Over torque protection by torque test function of smart full potted controller
  • Heavy duty motor with thermal overload protection
  • All metal gears with self-locking worm gear
  • Auto-calibrating with continuously output position monitoring signal as standard
  • Multi input signal switchable in one smart control pack
  • Fully potted resin plastic packaged controller resistance to vibration and moisture
  • Standard ISO5211 multi-flange valve mounting
  • Manual override with wrench or handwheel
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested



Description



DCL modulating type electric actuator is controlled by a smart compact controller that can choose two type input signals for different applications. Commonly, 4-20mA and 2-10V optional, special, 4-20mA and 1-5V optional.

In some industry fields those exists two types of input signals, or faces system upgrades, DCL smart modulating type electric actuator can be replacement without changing control pack.

Actuators are rigorous tested and certified by CSA per UL and CSA standard. It can suffer 1200 times starts per hour and over total 200000 times starts for whole life cycle with rated torque.



Weather Proof 360° CSA Quarter Turn Electric Actuator

Weather Proof 360° CSA Quarter Turn Electric Actuator

Tags:

DCL smart electric actuator

IP67 Smart Electric Actuator

CSA Quarter turn electric actuator
