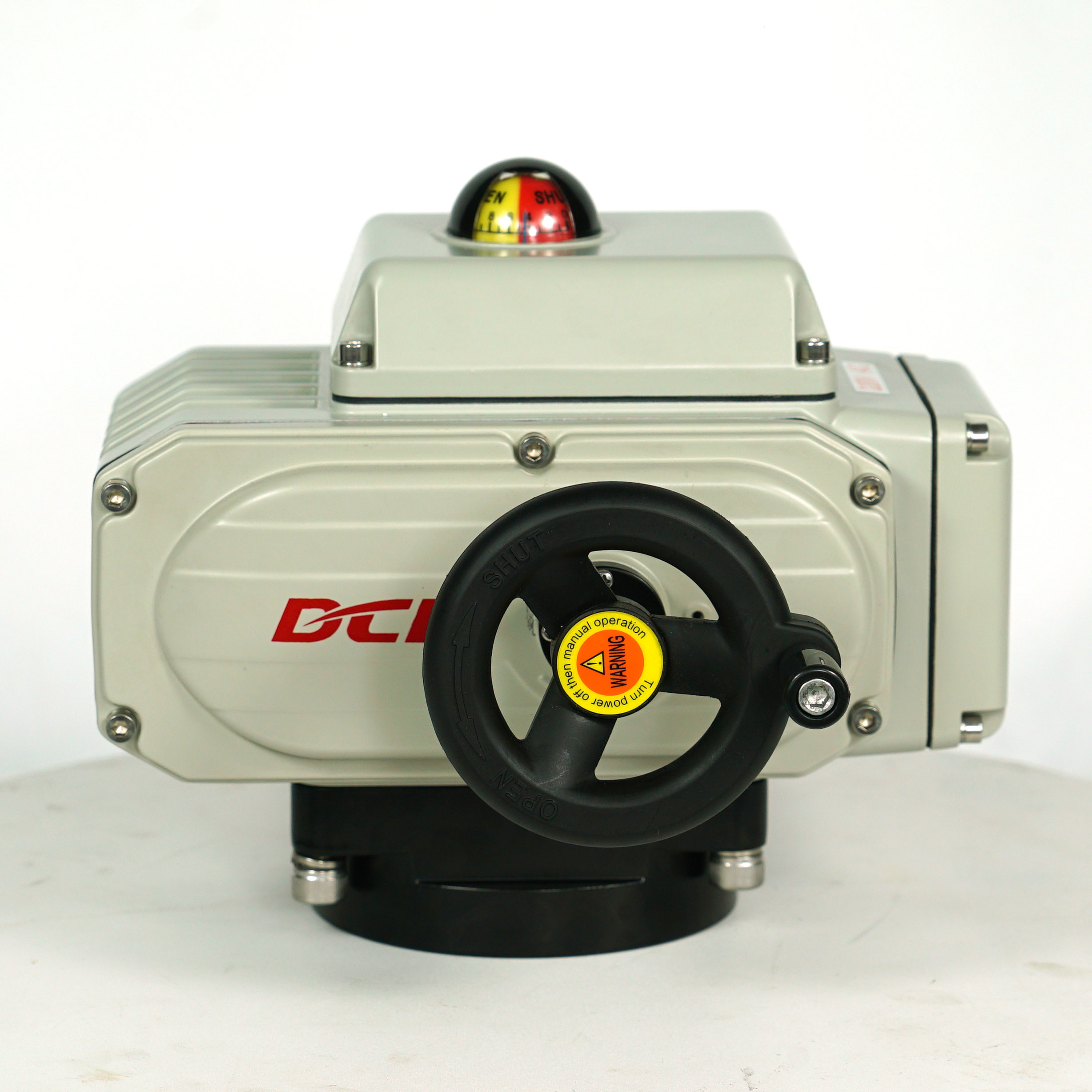

Small Modulating 90° Turn 442in.Lbs Smart Electric Actuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protection Grade | IP67 Weatherproof | Output Signal | 4-20mA |
|---|---|---|---|
| Motor Power | 10W To 140W | Power Supply | 24VAC/110VAV/220VAC/24VDC |
| Use For | Burner Fuel Control | Power | Electric |
| Certificated | CE/ROHS/CSA/IP67 | ||
| High Light | IP67 Smart Electric Actuator,160in.Lbs Smart Electric Actuator |
||
Product Description
Burner fuel control used smart electric actuator/resistance to electromagnetic interference
Features
- 90° turn with proportional to input control signal
- Modulating type for proportional control with 4-20mA/1-5V/2-10V input signal
- Self-calibrating with continuously output position monitoring signal as standard
- Mechanical over torque protection optional
- Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
- World-leading EMC, 100% passed EFT, ESD and Surge tests
- Stable operation on extra high/low temperature with high humidity
- Hard die cast aluminum alloy enclosure with powered coated to resistance corrosion
- All metal gear train with self-locking worm gear
- CSA listed/UL complied/CE marked/RoHS 3.0 tested
- Visual valve position indicator
Specification:
| Standard Time/Torque: | 15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs |
| Input Signal: | 4-20mA Or 2-10V / 1-5V Optional |
| Ambient Temperature: | -25℃~+55℃ / -13°F~+131°F |
| Motor Power: | 10W To 140W |
| Power Supply: | 24VAC/110VAV/220VAC/24VDC |
| Power: | Electric |
| Installation Angle: | 360° |
| Output Signal: | 4-20mA |
| Total Weight: | 2.5KG To 20KG |
| Protection Grade: | IP67 Weatherproof |
| Use For: | Burner Fuel Control |
| Certificated: | CE/ROHS/CSA/IP67 |
| Name: | Smart Electric Actuator |
Description
DCL small size modulating type electric actuators are widely used in combustion system, especially for burners, both in China and USA. Actuators are installed on the fuel intake duct/pipe to control flame or installed on ventilation valve to control temperature. Since the boiler is always in very high temperature and always has strong electromagnetic interference to surroundings, so the actuator must suffer very severe applications.
Though the controller is very small, but its electric clearance creep distance satisfies the UL standard. It can suffer 2500V surge test, 4000V EFT test, 4000V ESD test to ensure world leading EMC performance. Moreover, it also passed 85/85 test, which is continuously working in 85℃ and 85% humidity for over 600 hours. So it serves top 2 air conditioning companies ,Gree and Midea, in China, and also some top world famous brands such as McQuay, Danfoss, Dunham-bush etc.
