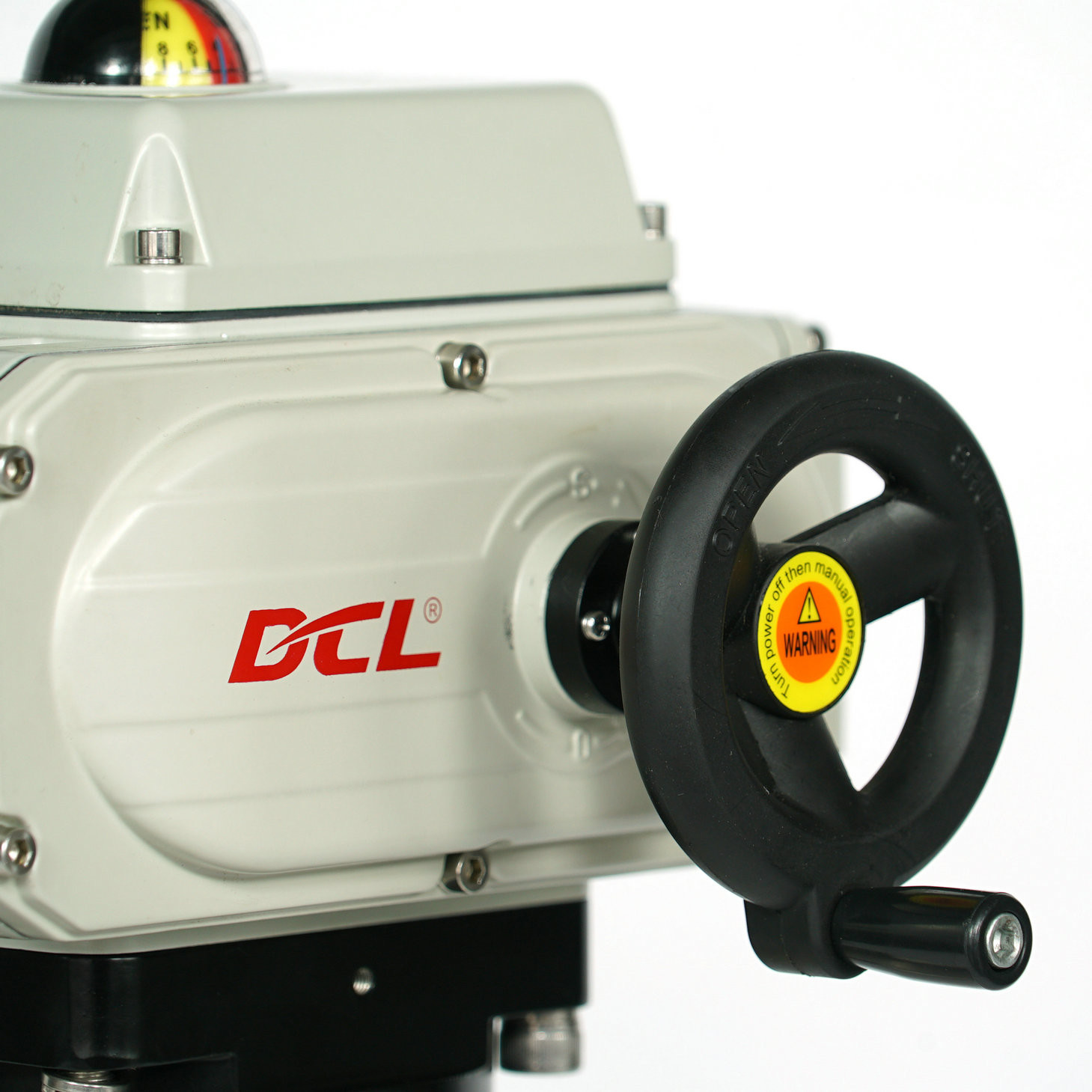

Refrigeration high moisture and temparature testing 442in.Lbs Smart Electric Actuator

  • Refrigeration high moisture and temparature testing 442in.Lbs Smart Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL E model
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Protection Grade IP67 Waterproof Name Smart Electric Actuator
Use For Cooling System Warranty One Year
Type 1/4 Turn Operation Actuator Feature Self Locking
High Light

DCL smart electric actuator

,

442in.Lbs Smart Electric Actuator
Leave a Message
Product Description

Smart electric actuator for cooling system/refrigeration equipment with 85 / 85 testing



Description

DCL compact electric actuators are most commonly used in HVAC field with butterfly valve. In many building automation systems, electric actuators are widely used to control indoor temperature, air conditioner air volume, water flow, condensate flow and hydraulic balance etc.Sometimes, opening cover to do wiring and adjustment is unavoidable for customer. Thermostatically controlled heater is necessary for humid environment with big day/night temperature difference.

Patented one-way breathing apparatus can avoid repeated condensation after heater powered off, since it only allows water molecules go from inside to outside of actuator while reverse movement is not possible. Thus, actuator is perfectly protected from damage of condensation.





Specification:



Name: Smart Electric Actuator
Standard Torque: 50Nm To 2500Nm/442in.lbs To 22125in.lbs
Input Signal: 4-20mADC/1-5VDC/2-10VDC
Power Supply: 24VAC/110VAV/220VAC/380VAC
Protection Grade: IP67 Waterproof
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Warranty: One Year
Standard Time: 20S To 75S
Output Signal: 4-20mADC
Motor Power: 6W To 140W
Total Weight: 1.2KG To 20KG
Installation Angle: 360°
Use For: Cooling System





Features

  • 1/4 turn operation with self-locking
  • 640 hours continuous operation tests in 85℃ and 85% humidity environment.
  • Automate ball valve and butterfly valve to adjust or cut off flow
  • One-way breathing apparatus is optional
  • Insulating class F induction Motor with overheating protection
  • High performance EMC with EFT, ESD and high voltage surge tested for control pack
  • De-clutchable manual handwheel
  • Over 10000 times full range life cycle with full rated load
  • Heavy duty motor with thermal overload protection
  • Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
  • Self-locking worm gear train, no additional brake needed
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested
  • Standard ISO 5211 multi-flange valve mounting



Weather Proof 360° CSA Quarter Turn Electric Actuator

Weather Proof 360° CSA Quarter Turn Electric Actuator
