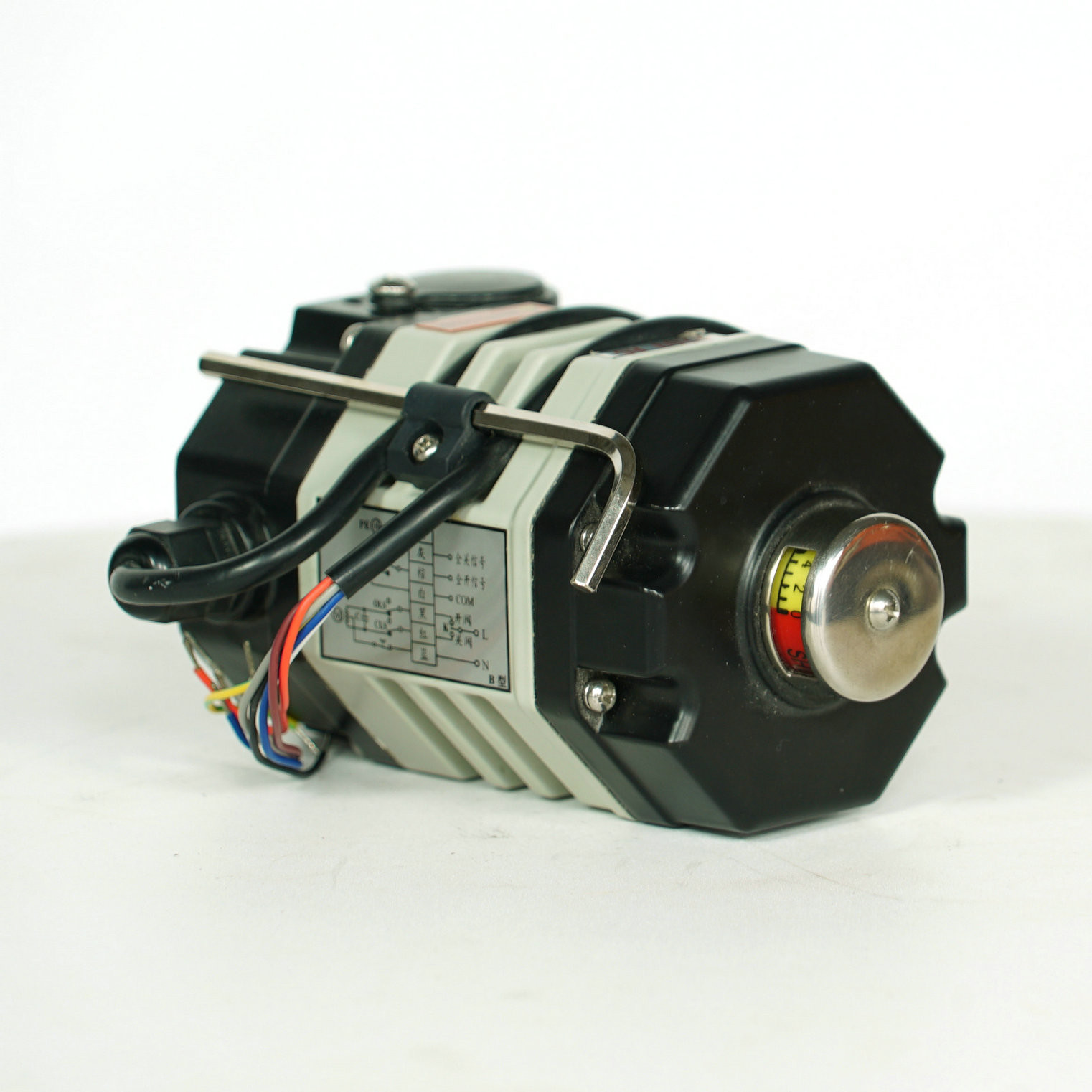

CE Torque Closed Valve IP67 18Nm Multi Turn Electric Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-MZZ
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Electric Actuator Standard Torque 5Nm To 18Nm
Standard Speed 2r/min Power Supply 24VDC
Motor Power 6W To 10W Name Multi Turn Actuator
High Light

18Nm multi turn electric actuator


NEMA 4X Valve Actuator


DCL Multi Turn Actuator

Leave a Message
Product Description

Torque closes valve used multi-turn electric actuator/highly sealed in close position


DCL-MZZ dimension and parameters.pdf


Power DC24V
Motor Power 20W
Rated Current 1.1A
Standard Time/Torque 18Nm
Optional Time/Torque
Turning Angle 3r
Total Weight 1.2Kg
Insulating Resistance 100MΩ/250VDC
Withstand Voltage Class 500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25℃~+55℃
Fuse 2A




DCL-MZZ multi-turn electric actuator uses over torque protection type to close valve to make sure valve is fully sealed. Since diaphragm valve and small globe valve linear move by rotate drive, and these valves commonly need to be sealed by an over normal torque which is like screwing cap to a bottle.

So for closing direction, an large over torque protection is set, to make sure valve is totally sealed. While, we can see that if the torque of the closing direction and the opening direction is the same, then valve can not be opened, which is also same as that when unscrewing the cap from a bottle, we need even larger torque than screw it. So the opening direction over torque protection is 1 second later than motor starts moving to avoid motor stuck on the fully close position.




Torque closes valve used multi-turn electric actuator/highly sealed in close position


Type: Electric Actuator
Standard Speed: 5r/min
Total Weight: 1.2KG
Motor Power: 6W To 10W
Installation Angle: 360°
Name: Multi Turn Actuator
Standard Torque: 5Nm To 18Nm
Turns: 3r/5r/7r Optional
Power Supply: 24VDC
Protection Grade: IP67 NEMA4/4X
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F



  • Over torque protection type valve closing instead of turns setting type valve closing
  • Rugged IP67 and type 4X aluminum alloy enclosure
  • Corrosion resistance with thermally bonded polyester coating
  • Torque can be set and adjusted by internal potentiometer on mini control board
  • Turns can be set and adjusted through Hall element position
  • 2 LED lights with different colors to confirm valve position
  • Continuous mode and inching mode available
  • CE marked/RoHS 3.0 complied
