Compact 3 Way Electric Actuated ISO5211 PVC Ball Valve

  • Compact 3 Way Electric Actuated ISO5211 PVC Ball Valve
  • Compact 3 Way Electric Actuated ISO5211 PVC Ball Valve
  • Compact 3 Way Electric Actuated ISO5211 PVC Ball Valve
  • Compact 3 Way Electric Actuated ISO5211 PVC Ball Valve
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Electric actuated PVC Control Valve

,

ISO5211 PVC Control Valve
Leave a Message
Product Description

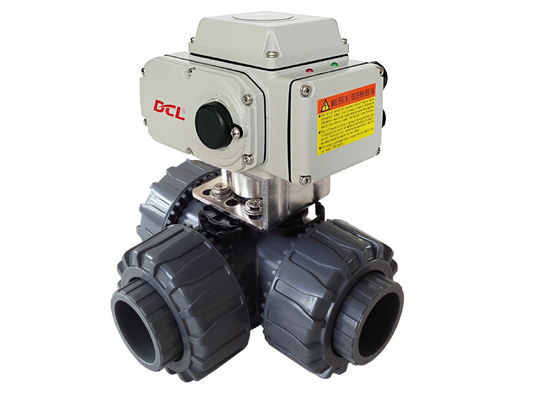

Electric actuated 3-way compact PVC control ball valve / T-port or L-port



Features



3-way PVC ball valve

  • PVC or CPVC body
  • PTFE or EPDM seats
  • Replaces valve/tee connection combinations
  • Quick, easy to install
  • Double O-ring stem seal
  • Pressure rating: 232 psi at 25℃,77F non-shock
  • Maximum Temperature: 140°F for PVC & 190°F for CPVC
  • Top ISO5211 flange for easy automation



Electric actuators

  • 1/4 turn operation with self-locking
  • Automate ball valve and butterfly valve to adjust or cut off flow
  • Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
  • Heavy duty motor with thermal overload protection/duty rate 80%
  • Over 10000 times full range life cycle with full rated load
  • Resistance to extra low and high temperature and high moisture environment
  • Standard manual handle
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested



Description

DCL electric actuated 3-way PVC ball valves are used as a diverter valve to control water and other media compatible with the materials of construction. Advantages of electric actuated ball valves over other type valves may include: higher flows, higher pressures, and wider media compatibility. Includes IPS glue sockets and NPT end connectors.



Specification

Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200
