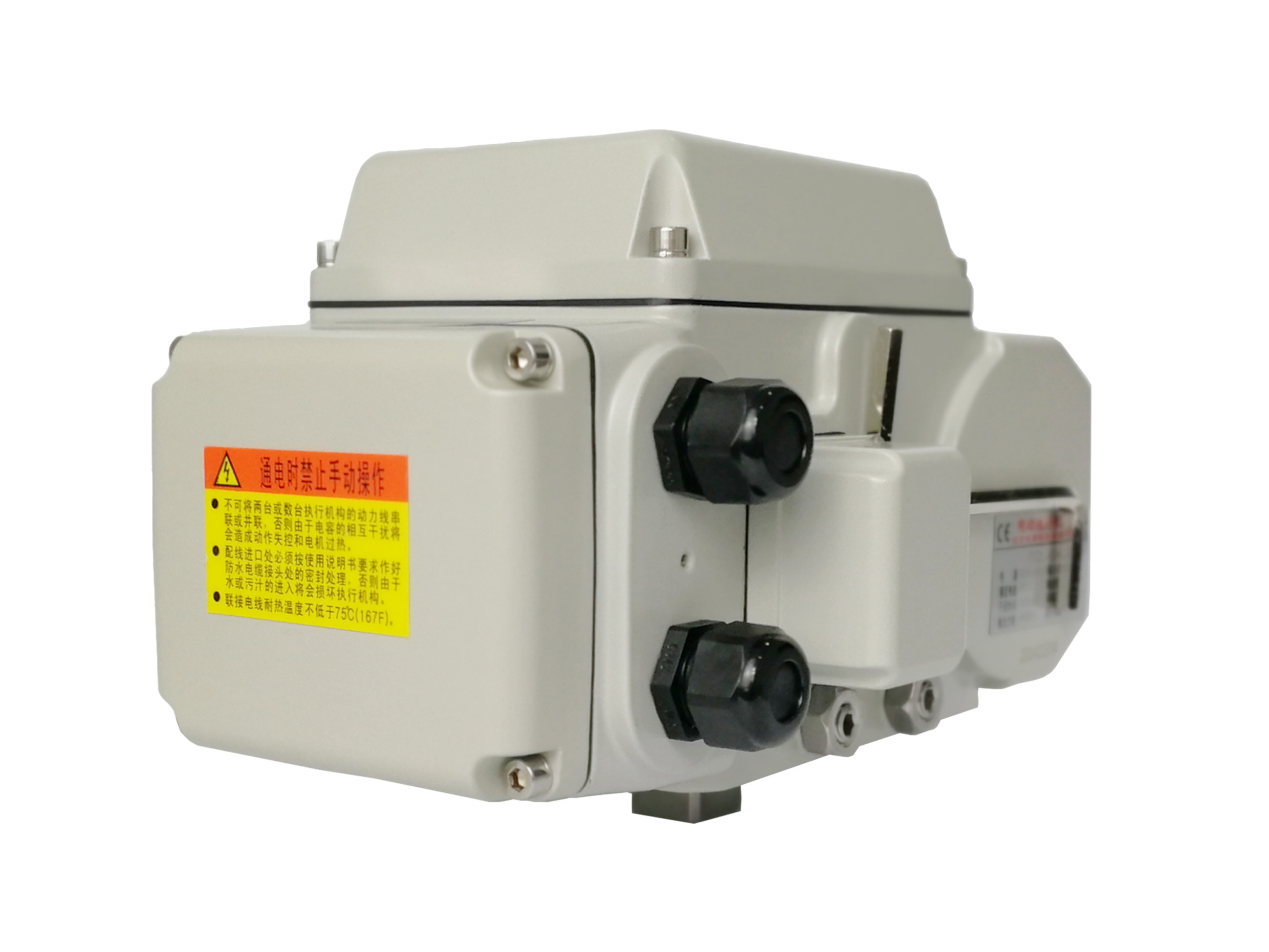

Modulating 30S 200Nm Quarter Turn Electric Actuator

High performance EMC smart electric actuator pasted EFT / ESD / surge impact testing

Features

• Quarter turn with proportional to input control signal, mechanical limits
• Super mini smart programmable control pack with LED lights for problem self-checking
• Control pack is located in in the same cavity of actuator, no extra box needed
• Full potted control server to protect the electronics from vibration and moisture
• World leading anti-interference ability, control accuracy and sensitivity
• Multi input signal switching and self-calibrating
• High performance EMC with EFT, ESD and high voltage surge tested for control pack
• C3 level corrosion resistance with 1000 hours salt spray test
• Heavy duty motor with thermal overload protection
• Visual valve position indicator
• Standard ISO5211 multi-flange valve mounting
• CSA certificated complied to UL and CSA standard/ CE marked

Specification

Description

DCL modulating type electric actuator is integral design of motor/control pack and housing. Unlike other type electric actuator that add an extra cavity to put controller for electric positioning, which makes the actuator’s appearance become weird and not compact, DCL actuator designed a very small multifunctional control pack that is similar size as terminal block of on-off type. So it can be put on the wiring cavity to replace the terminal block.

DCL smart electric actuator’s dead space is adjustable. Dead space determines the actuator’s sensitivity to input signal. Smaller dead space means more sensitive. But more sensitive does not always mean better. Actually, if input signal is susceptible to external interference, a larger dead space can avoid frequently error starts of actuator and extend its life cycle and stability. On the other hand, if input signal is pure and accuracy control is also required, then a smaller dead space is better.

Another fact to influence valve positioning accuracy is the gap between gears, especially the machining accuracy of the worm gears. Our SQE uses professional testing equipment to detect and ensure every gear’s quality from supplier. Moreover, many special designs and assembling process controls are insisted to make sure no oscillation of gears and low noise with different loads. DCL set the benchmark of compact electric actuator industry of China.

Actuator has been rigorous tested by CSA per UL and CSA standard. The duty rate can be over 70% for all series. The EPS system is self-calibrating which virtually eliminates "hunting" and provides an output position monitoring signal as standard.
