Weather Proof Modulating 18Nm 160in.Lbs Smart Valve Actuator

  • Weather Proof Modulating 18Nm 160in.Lbs Smart Valve Actuator
  • Weather Proof Modulating 18Nm 160in.Lbs Smart Valve Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number All modulating type electric actuators（Except DCL-02E）
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Time/Torque 15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs Installation Angle 360°
Input Signal 4-20mA Or 2-10V / 1-5V Optional Output Signal 4-20mA
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Total Weight 2.5KG To 20KG
Motor Power 10W To 140W Protection Grade IP67 NEMA4/4X
Power Supply 24VAC/110VAV/220VAC
High Light

CSA Quarter turn electric actuator

,

160in.Lbs Smart Valve Actuator

,

18Nm Valve Actuator
Leave a Message
Product Description

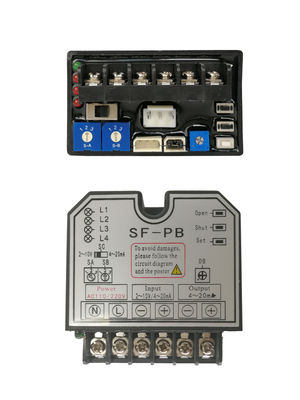

Resin plastic packaged control server equipped smart electric actuator/weather proof



DCL-05E~250E parameters.pdf



Features

  • Quarter turn with proportional to input control signal, mechanical limits
  • Self-calibrating with continuously output position monitoring signal as standard
  • Heavy duty motor with thermal overload protection
  • Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
  • Fully potted resin plastic packaged controller to insure high performance EMC
  • 1200 starts/hour and 200000 starts life cycle, type tested by DCL and CSA
  • Self-locking bronze alloy worm gear to resistance to abrasion
  • CSA certification per UL and CSA standard/CE/RoHS 3

Description

DCL modulating type electric actuator uses fully potted resin plastic packaged control pack. For intrusive electric actuators, fully potted control pack is more reliable and safer than the bare control board. If without fully potted package, the electronics on the control board are easily touched by mistaken operation when doing wiring or checking, then increase the failure rate of control board and actuator. If actuator works in high humidity environment or suffers big shock during transportation, resin plastic package is indispensable for controller.

The package can also help to shield some electromagnetic interferences. Our control pack can suffer 2500V surge test, 4000V EFT test, 4000V ESD test to ensure world leading EMC performance. Moreover, it also passed 85/85 test, which is continuously working in 85℃ and 85% humidity for over 600 hours stably.



Specification



Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-160E DCL-250E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 1600Nm 2500Nm
Acting Time 20S 30S 30S 30S 45S 30S 48S 75S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20℃~+55℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.



Weather Proof 360° CSA Quarter Turn Electric Actuator
