DC Brushless Motor ISO5211 24VDC Smart Electric Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-10GE/40GE
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Action Time 15S/30S Output Torque 0~600Nm
Input Signal 4-20mADC Output Signal 4-20mADC
Power Supply 24VDC Installation Angle 360°
Motor Power 30W/70W Total Weight 4.5KG/9.5KG
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
High Light

CSA Quarter turn electric actuator

,

24VDC Smart Electric Actuator

,

ISO5211 Electric Actuator

Leave a Message
Product Description

Modulating smart electric actuator adopt DC brushless motor with a drive box



DCL-10GE 40GE dimension and parameters.pdf



Features

  • Quarter turn operation modulated by 24VDC power
  • Torque can be precisely setting within a certain range
  • Heavy duty DC brushless motor low temperature rising, longer life, provide high start torque and very small inertia force
  • Torque test control and over torque protection by current
  • Compact smart resin plastic packaged drive controller
  • Weatherproof IP 67 robust aluminum alloy enclosure, protection against dust and water
  • Manual override with Allen wrench or handwheel
  • ISO5211 direct installation
  • UL standard/CSA listed/CE marked/RoHS 3 complied



Description

DCL-10GE/40GE smart electric actuator is powered by 24VDC and proportional controlled by 4-20mA or 2-10V input control signal. DC brushless motor has lots of advantages for actuator. Permanent magnet rotor makes the motor’s temperature rising is 20℃ lower than AC motor. Its frequently start-up causes very few fever. Actuator can reach 1200 starts per hour operation with large start-up torque and strong overload capacity.

Moreover, DC brushless motor is non-mechanical friction and can provide reverse electromagnetic brake function. When positioning, the speed of motor will automatically slow down when set value is approaching, to improve positioning accuracy(error is less than ±1%) with lower vibration.

Integral designed smart control pack has functions of auto calibration, torque test and protection, failure self-test, automatic power failure etc. The small size can make this box can be put in the same cavity of wiring cavity. So the whole actuator looks very beautiful and compact.



Specification



Performance Parameters
Type DCL-10GE DCL-40GE
  DC24V±10% DC24V±10%
Motor Power 30W 70W
Max Current 3.3A 1.8A 8.9A 6.6A
Action Time 15S 30S 15S 30S
Output Torque 0100Nm Optional 100~400Nm Optional 100~600Nm Optional
Total Weight 4.5kg 9.5kg
Input Signal 420mADC
Output Signal 420mADC
Basic Error no more than ±1%
Reciprocating Error No more than 1%
Dead Space 0.5~5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator 1%
Turning Angle 0900 Adjustable
Insulating Resistance 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minutes
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -25+55
Optional Function Heater/Passive contact switch/Dome indicator

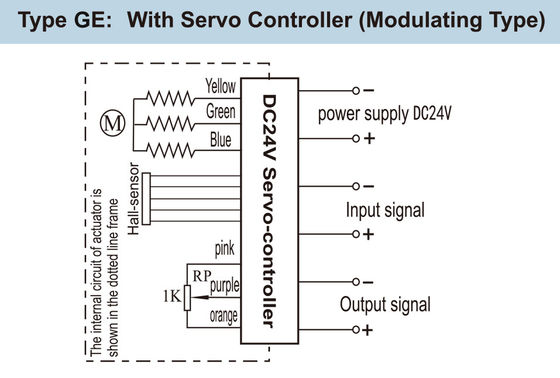

DC Brushless Motor ISO5211 24VDC Smart Electric Actuator 0
