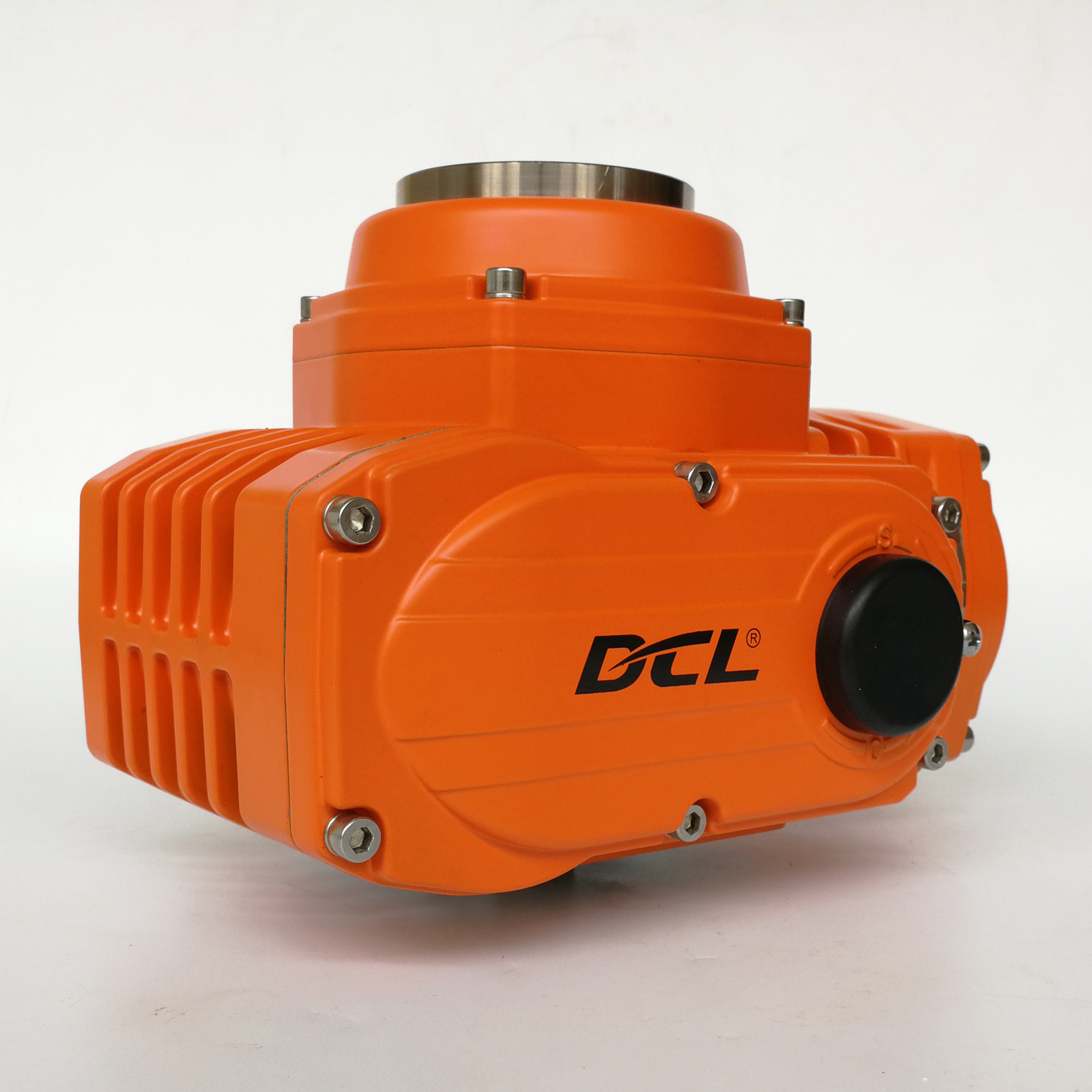

CSA ATEX IP68 Explosion-Proof Quarter-Turn Electric Actuator 50–3000 Nm

  • CSA ATEX IP68 Explosion-Proof Quarter-Turn Electric Actuator 50–3000 Nm
  • CSA ATEX IP68 Explosion-Proof Quarter-Turn Electric Actuator 50–3000 Nm
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP68/IECEx/ATEX/UL
Model Number DCL-Ex10/Ex20/Ex40/Ex60
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,
Supply Ability 2000PCS/month
Product Details
Standard Torque 100Nm To 600Nm Standard Time 30s To 45s
Total Weight 5kg To 10kg Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC
Motor Power 15W To 90W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Installation Angle 360° Sealing Grade IP68 NEMA4X
Highlight

CSA ATEX explosion-proof electric actuator

,

IP68 rated quarter-turn actuator

,

explosion-proof actuator 50-3000 Nm torque
Leave a Message
Product Description

Product Features

  • Standard output torque from 50 to 3000 Nm, with maximum torque from 65 to 3900 Nm.

  • IP68 enclosure and a stated ambient-temperature range of -25°C to +55°C.

  • Explosion-protection markings include Ex db h IIC T4 Gb and Ex h tb IIIC T135°C Db.

  • North American ratings include Class I, Division 1, Groups C and D, T5/T6, and Class I, Zone 1.

  • Available with on-off, position-feedback or modulating control.

  • Modulating versions accept 4–20 mA, 1–5 VDC or 2–10 VDC input and provide 4–20 mA position feedback.

  • Basic modulating error is no more than ±1%, with repeatability error no more than 1%.

  • ISO 5211 direct-mount options and model-dependent DC12V, DC24V, AC110V, AC220V or AC380V power supplies.

  • Optional over-torque protection, anti-condensation heating, Modbus RTU and fail-safe return.

Product Description

The DCL explosion-proof quarter-turn electric actuator is designed for valve automation in oil and gas, petrochemical, chemical, metallurgy and other industrial environments where flammable gases or combustible dust may be present. The range includes models from DCL-Ex05 to DCL-Ex300, with standard output torque from 50 to 3000 Nm.

The series is suitable for automating ball valves, butterfly valves, plug valves and other rotary valves. Its IP68 enclosure has a stated ambient-temperature range of -25°C to +55°C. ATEX/IECEx markings and North American Class I, Division 1 configurations are available for projects requiring hazardous-location compliance.

Control options include on-off operation, passive-contact feedback, resistance feedback and modulating position control. Modulating versions accept 4–20 mA, 1–5 VDC or 2–10 VDC commands and provide 4–20 mA valve-position feedback. The specified basic error is no more than ±1%, and repeatability error is no more than 1%.

Optional over-torque protection can interrupt the motor circuit when a jammed valve causes torque to reach a preset limit. An optional stored-energy fail-safe module can move the valve to a predefined open, closed or current position after power loss. Certification, voltage, operating time, control mode and optional functions must be confirmed for the selected model.

Specification:
Type Ex05E Ex10E Ex20E Ex40E Ex60E
Power AC110V/AC220V
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm
Acting Time 20S 30S 30S 30S 45S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W
Rated Current 0.24/0.15A 0.57/0.30A 0.63/0.35A 1.12/0.64A 1.18/0.67A
Total Weight 3.0kg 5.0kg 5.5kg 9.5kg 10.0kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance 100MΩ/500VDC
Withstand Voltage Class 1500VAC 1minutes
Protection Class IP68
Explosive-proof grade Exd II CT4Gb
Installation Angle 360°at any angle
Electric Interface

2-M20*1.5 explosion-proof plug,clients should install corresponding explosion-proof cable connector

when using according to the cable selected.
Ambient Temperature -20℃~+60℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch
Remark Any other input or output signal needed, please specified in purchase order.
