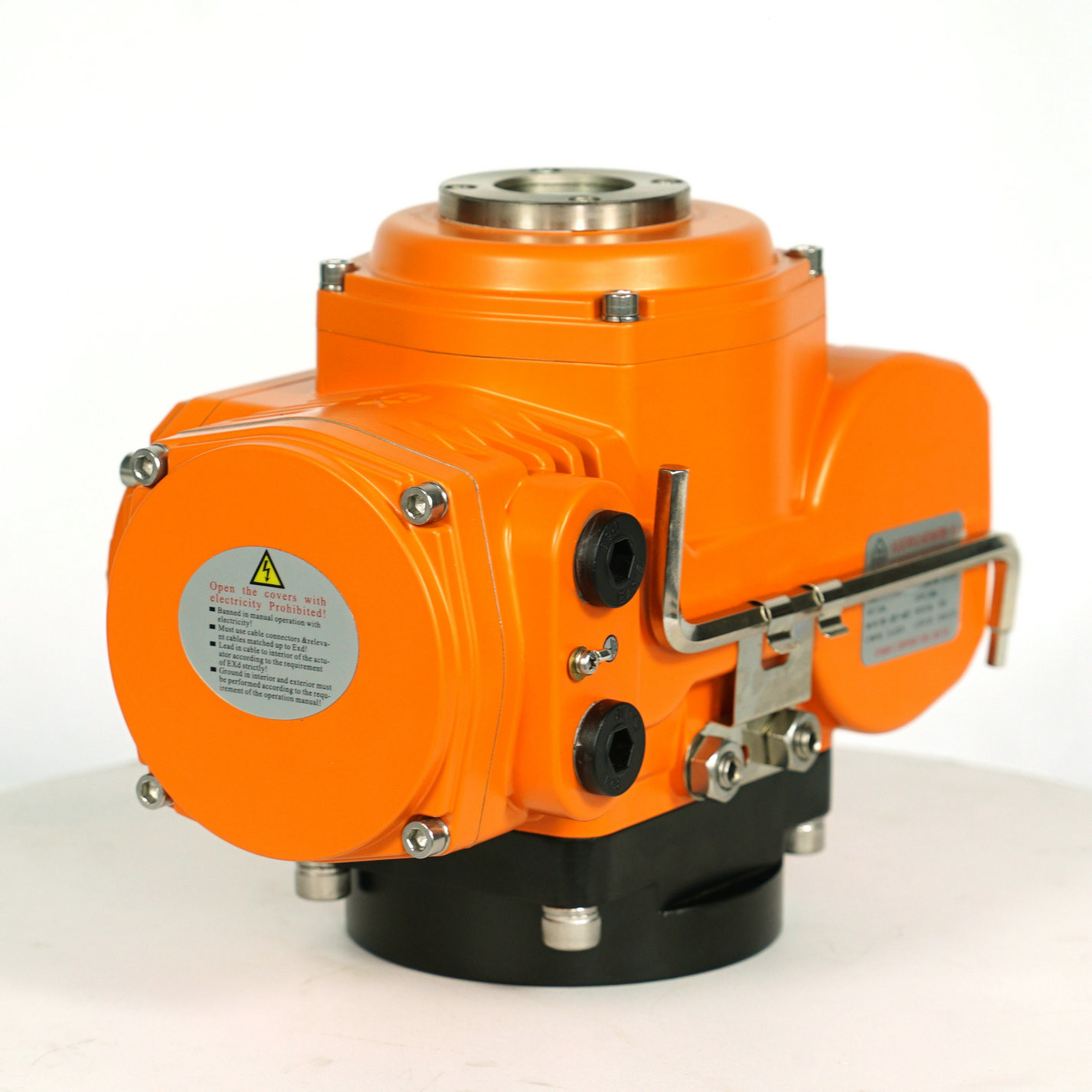

SIL3 Explosion Proof Electric Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-Ex05C/Ex10C/Ex20C/Ex40C/Ex60C
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
NAME Anti Explosion Electric Actuator Standard Torque 50Nm To 600Nm
Standard Time 20s To 45s Feature Waterproof Electric Actuator
Explosion Proof Grade ExdIIBT4 Total Weight 3kg To 10kg
Motor Power 6W To 90W Installation Angle 360°
High Light

ExdIIBT4 explosion proof valve actuator

,

IP68 explosion proof electric actuator

Leave a Message
Product Description

On-off type anti explosion electric actuator with potentiometer / SIL 3



Description

DCL C model explosion proof electric actuator is equipped with potentiometer to feedback continuous resistance signal. Always used for some control system that can transfer resistance signal to current signal or voltage signal outside actuator. The resistance value output is proportional to valve position, 500Ω and 1000Ω range are optional.

Actuator can be used in 90% explosive gas except mine with ExdIIBT4 and Group C, D T4 grade. Patented integral design of motor/housing makes the actuators very compact and light weighted. Actuator are ATEX marked and SIL 3 certified, now are on rigorous tests by CSA and will get CSA certification on Q3 2020.





Spefication:

Standard Torque: 50Nm To 600Nm
Explosion Proof Grade: ExdIIBT4
Total Weight: 3kg To 10kg
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Power Supply: 24VAC/110VAV/220VAC/380VAC/24VDC
Standard Time: 20s To 45s
Protection Grade: IP68 NEMA 4X
Motor Power: 6W To 90W
Installation Angle: 360°





Features

  • Quarter turn operation with mechanical limits
  • 1000Ω standard, 500Ω optional potentiometer outputs proportional resistance value for valve position
  • Permanent lubricated self-locking high strength bronze alloy worm gear
  • Two auxiliary limit switches to feedback dry contact signals of full open and close position
  • Cylinder stop type connection surface complied to ATEX, UL, IECEx standard
  • Rugged IP68 and type 7 robust die cast aluminum alloy housing with powder coated
  • Hard stainless steel valve position indicator with 10mm tempered glass
  • Manual override with wrench or handwheel
  • SIL 3 certified/ATEX marked/CSA tests on process for both Zone and Division system



Specification:



Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-Ex05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 3.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex10 30S/100Nm 15S/50Nm 60S/100Nm 0~90°Adjustable 5.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 5.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex40 30S/400Nm 15S/200Nm 60S/400Nm 0~90°Adjustable 9.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex60 45S/600Nm   0~90°Adjustable 10Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
Actuator Type Butterfly Valve(PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-Ex05 DN50~65 DN40 DN50~80
DCL-Ex10 DN80~100 DN50~65 DN100~200
DCL-Ex20 DN125~150 DN80~100 DN250~300
DCL-Ex40 DN200 DN125 DN350~450
DCL-Ex60 DN250 DN150 DN500~600
