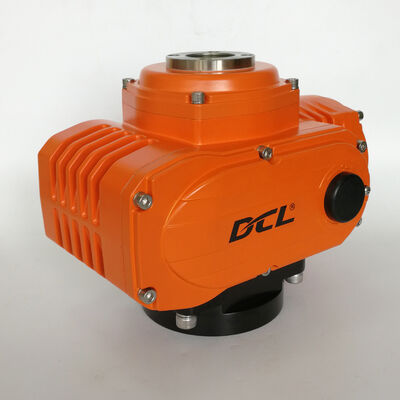

AC110V 90W 600Nm/45S 10.0kg ExdⅡC T4 Explosion Proof Valve Actuator

• Quarter turn operation with mechanical limits
• Cylinder stop type connection surfaces of every housing cover, flame proof gap and length complied to UL and CSA standard
• Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
• Rugged IP68/NEMA 4X aluminum alloy housing with powder coating
• 10mm high strength glass lens for valve position indicator, keep strong hardness both in low temperature(-22F) and high temperature(140F).
• Hard die cast aluminum alloy enclosure to ensure actuator's resistance of high explosion pressure(＞2.2 MPa).
• Non-ventilated motor with fire treatment.
• Heavy duty motor with thermal overload protection
• Duty rate is 70%, S2 short time duty with continuous operation less than 15mins and S4 intermittent type operation with 1200times/hour.
• ISO5211 multi flange mounting.
• Over torque protection is available
• Anti-condensation heater is optional
• Manual override with Allen wrench or handwheel
• CSA certification in process per UL standard/ATEX marked

The actuator is designed for use in most explosive gas environments, excluding coal mining applications. The motor and electronic components are specially treated with flame-retardant protection to enhance safety in hazardous areas.

The machining accuracy of all flameproof joint surfaces is strictly controlled and inspected throughout the supply chain to ensure the required flameproof gaps are maintained, effectively preventing internal sparks from igniting external explosive gases.

The aluminum alloy housing is manufactured through high-pressure die casting with higher casting pressure than conventional electric actuator housings. This process improves material density and enables the enclosure to withstand higher internal explosion pressure.

All enclosure joint surfaces are designed in accordance with ATEX and UL requirements. Each flameproof connection surface is precisely machined and tested before assembly to ensure compliance with explosion-proof protection standards.

The actuator features a standardized ISO5211 multi-flange mounting interface and double-square drive design, allowing quick and flexible installation with various quarter-turn valves.
