CSA 90° DC24V ExdIICT4 400Nm Explosion Proof Actuator

  • CSA 90° DC24V ExdIICT4 400Nm Explosion Proof Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP68/IECEx/ATEX/UL
Model Number All explosion proof electric actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 2000PCS/month
Product Details
Standard Torque 50Nm To 600Nm Standard Time 20s To 45s
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC Motor Power 6W To 90W
Protection Grade IP68 NEMA 4X Total Weight 3kg To 10kg
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Installation Angle 360°
Highlight

CSA explosion proof actuator

,

90° explosion proof electric actuator

,

DC24V explosion proof actuator with warranty
Leave a Message
Product Description
90° Turn ExdIICT4 Explosion Proof Electric Actuator, CSA certified 50Nm-600Nm
Features
  • Quarter turn with proportional to input control signal, mechanical limits
  • Auto-calibrating with continuously output position monitoring signal as standard
  • Multi input signal switchable in one smart control pack
  • Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
  • Fully potted resin plastic packaged controller resistance to vibration and moisture
  • Stable operation on extra high/low temperature with high humidity
  • All metal gears with self-locking worm gear
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested
Description

The enclosures of DCL explosion-proof electric actuators are produced using high-tonnage die-casting equipment, resulting in a denser structure free of micro-porosity. Compared with standard actuator models, the housing walls are designed with increased thickness to withstand internal explosion pressure.

The integrity of the flameproof joint surface (cylinder-stop mating surface) is critical to safety performance. Any scratches, dimensional deviations, insufficient flame path length, corrosion, or cracks are strictly unacceptable. To ensure full compliance, every enclosure undergoes 100% inspection upon receipt from suppliers.

DCL explosion-proof actuators have been officially tested by CSA and comply with ATEX, UL, and CSA standards, enabling certified use in Europe, North America, and other regions requiring explosion-proof equipment.

Specification
Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-Ex05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 3.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex10 30S/100Nm 15S/50Nm 60S/100Nm 0~90°Adjustable 5.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 5.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex40 30S/400Nm 15S/200Nm 60S/400Nm 0~90°Adjustable 9.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex60 45S/600Nm
0~90°Adjustable 10Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-Ex05 DN50~65 DN40 DN50~80
DCL-Ex10 DN80~100 DN50~65 DN100~200
DCL-Ex20 DN125~150 DN80~100 DN250~300
DCL-Ex40 DN200 DN125 DN350~450
DCL-Ex60 DN250 DN150 DN500~600

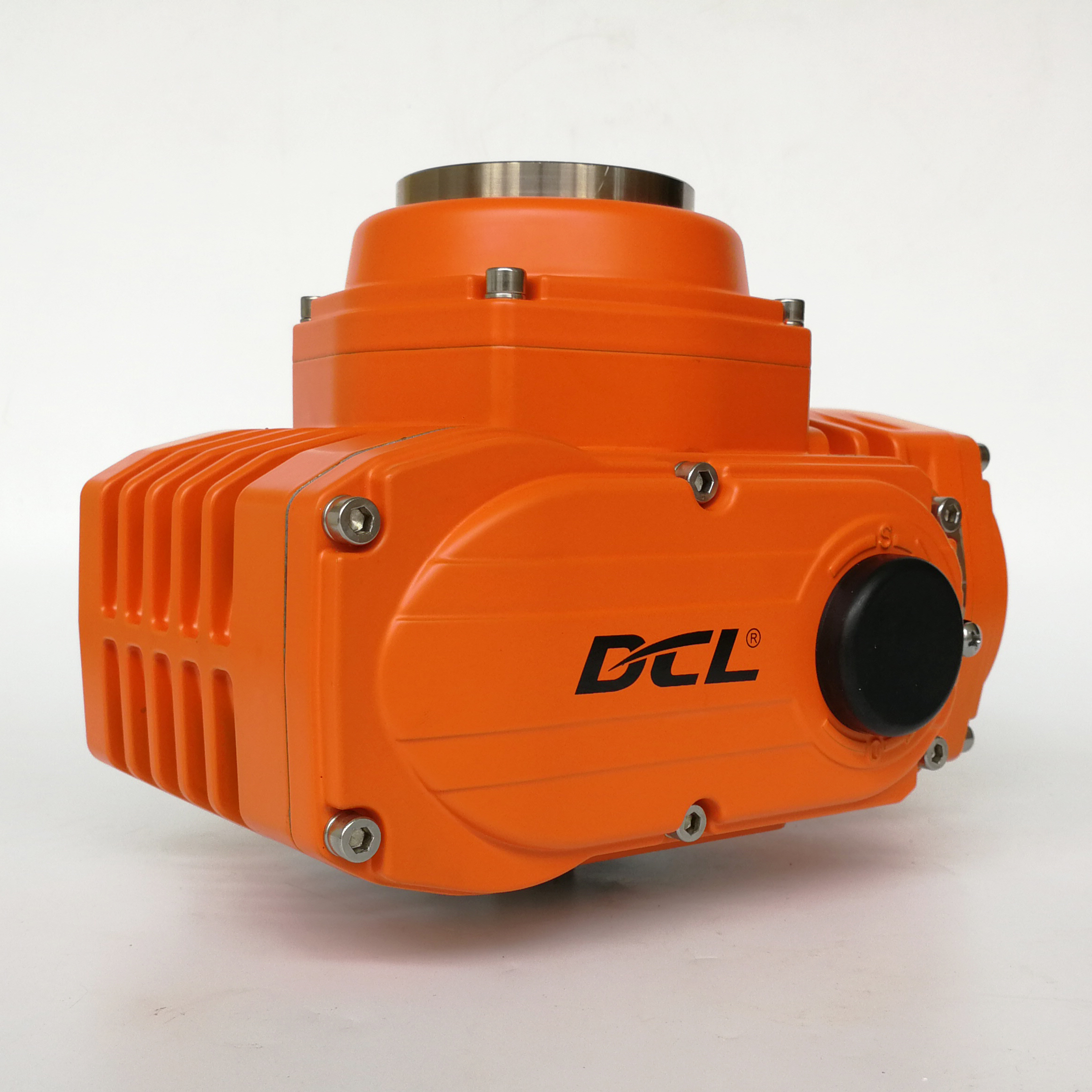

CSA 90° DC24V ExdIICT4 400Nm Explosion Proof Actuator 0
