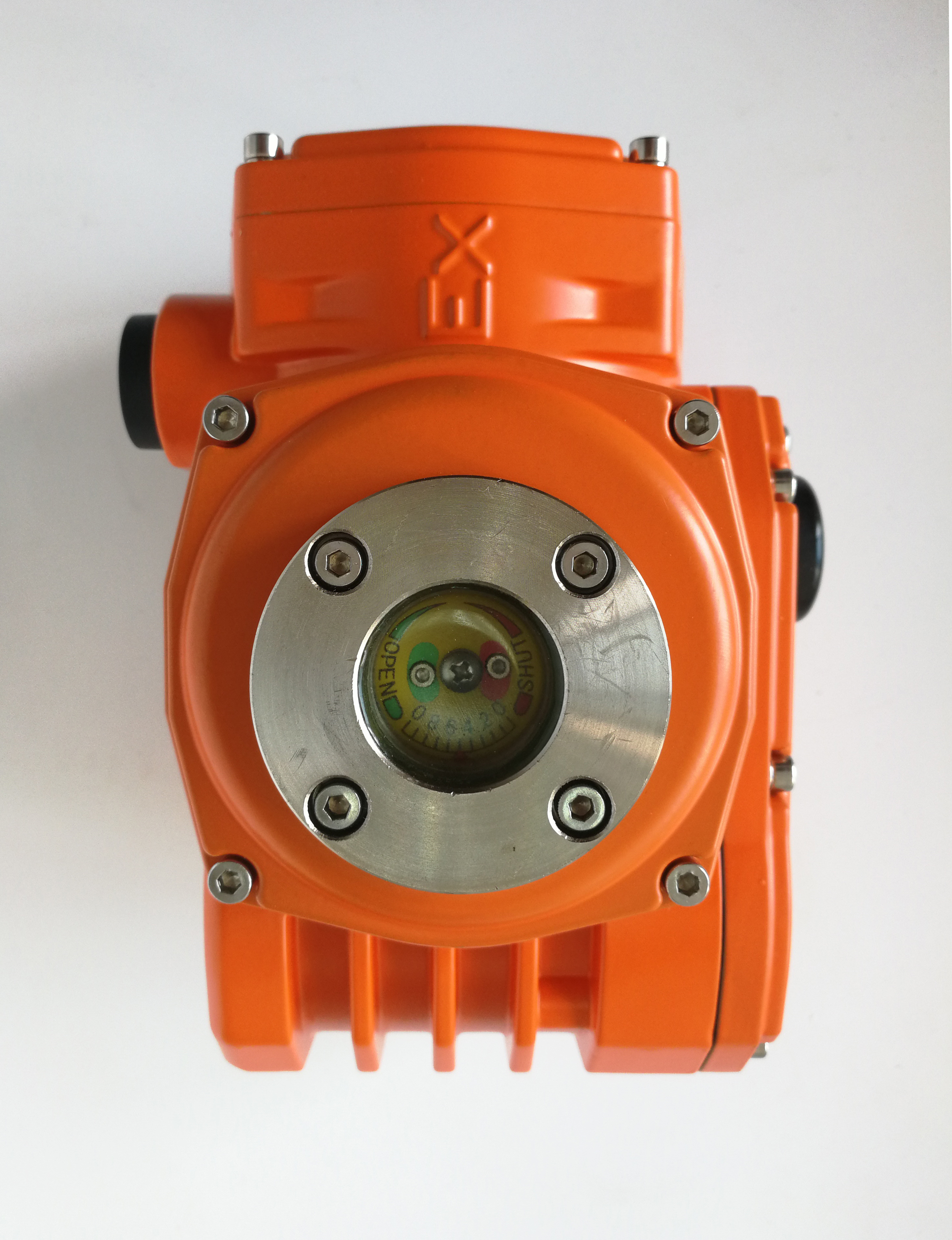

Adjustable ISO5211 DC24V 50Nm 20s Explosion Proof Valve Actuator

DCL-Ex05 dimension and parameters.pdf

• Turning angle ≤360° adjustable with electric limit switches
• Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
• Stainless steel visual valve position indicator with 10mm tempered glass lens
• Hard die cast aluminum alloy enclosure to resistance to high explosive pressure inside
• Heavy duty fully enclosed squirrel-cage asynchronous motor with fire treatment
• Manual override with Allen handle/handwheel optional
• Double lip skeleton oil seal and O-ring seal to ensure protection grade to IP68
• Standard ISO 5211 direct mounting

DCL-Ex05 Series: Extended Range Explosion-Proof Actuators

The DCL-Ex05 offers a unique extended turning angle of up to 340°, making it ideal for specialized industrial applications in explosive gas environments (e.g., Ethylene, Ethanol). Each housing joint features a cylinder-stop flameproof surface that meets and exceeds UL standards for gap and length. To ensure the highest explosion-grade integrity, DCL implements tighter machining tolerances than those required by UL. Every enclosure component undergoes rigorous individual testing before assembly.

Powered by DCL’s proprietary, non-ventilated, fully-enclosed motors, these actuators deliver high starting torque in a compact footprint. To maintain safety during heavy-duty cycles, our motor design strictly limits heat generation, ensuring the external shell temperature never exceeds 135°C (275°F / T4 Rating).
