IP67 CE RoHS Quarter Turn 380VAC Motorized Valve Actuator

  • IP67 CE RoHS Quarter Turn 380VAC Motorized Valve Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-H Series
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 5000PCS/month
Product Details
Standard Torque 50Nm To 2500Nm/442in.lbs To 22125in.lbs Standard Time 20S To 75S
Power Supply 380VAC/440VAC Installation Angle 360°
Total Weight 2.5KG To 20KG Motor Power 6W To 140W
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
Highlight

IP67 motorized valve actuator

,

3 phase quarter turn actuator

,

380VAC motorized valve with warranty
Leave a Message
Product Description

380VAC / 440VAC motorized 3 phase actuator / CE marked and RoHS complied

Features
  • Quarter turn operation with mechanical limits
  • Modulating type available with electric positioning system
  • Class F insulating heavy duty motor with thermal overload protection
  • Rugged IP67 hard die cast aluminum alloy enclosure/100% underwater test
  • Two auxiliary limit switches to confirm valve position
  • Visual valve position indicator, flat or convex available
  • Emergency local power off button optional
  • Self-locking all metal gear with soft nitriding treatment
  • CSA certified per UL and CSA standard/CE/RoHS 3.0
Description

DCL-H Series Actuators are powered by 3-phase 380VAC/440VAC (50Hz/60Hz), specifically engineered for heavy-duty industrial applications such as power plants and steel mills. To ensure maximum operational safety, the motor features Class F insulation. The robust all-metal gear train, paired with a self-locking bronze alloy worm gear, guarantees a service life exceeding 10,000 full-range cycles under rated load. Precision control is managed by internal cams and limit switches, providing an automatic motor stop and a full-open dry contact signal for remote monitoring. All units are rigorously certified by CSA (UL/CSA standards) and SGS (CE/RoHS 3 standards).

Specification
Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm 10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-200 90S/2000Nm 19.5Kg
DCL-300 110S/3000Nm 20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm 3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-200 DN350~400 DN250 DN900
DCL-300 DN450~600 DN300~350 DN1000~1200

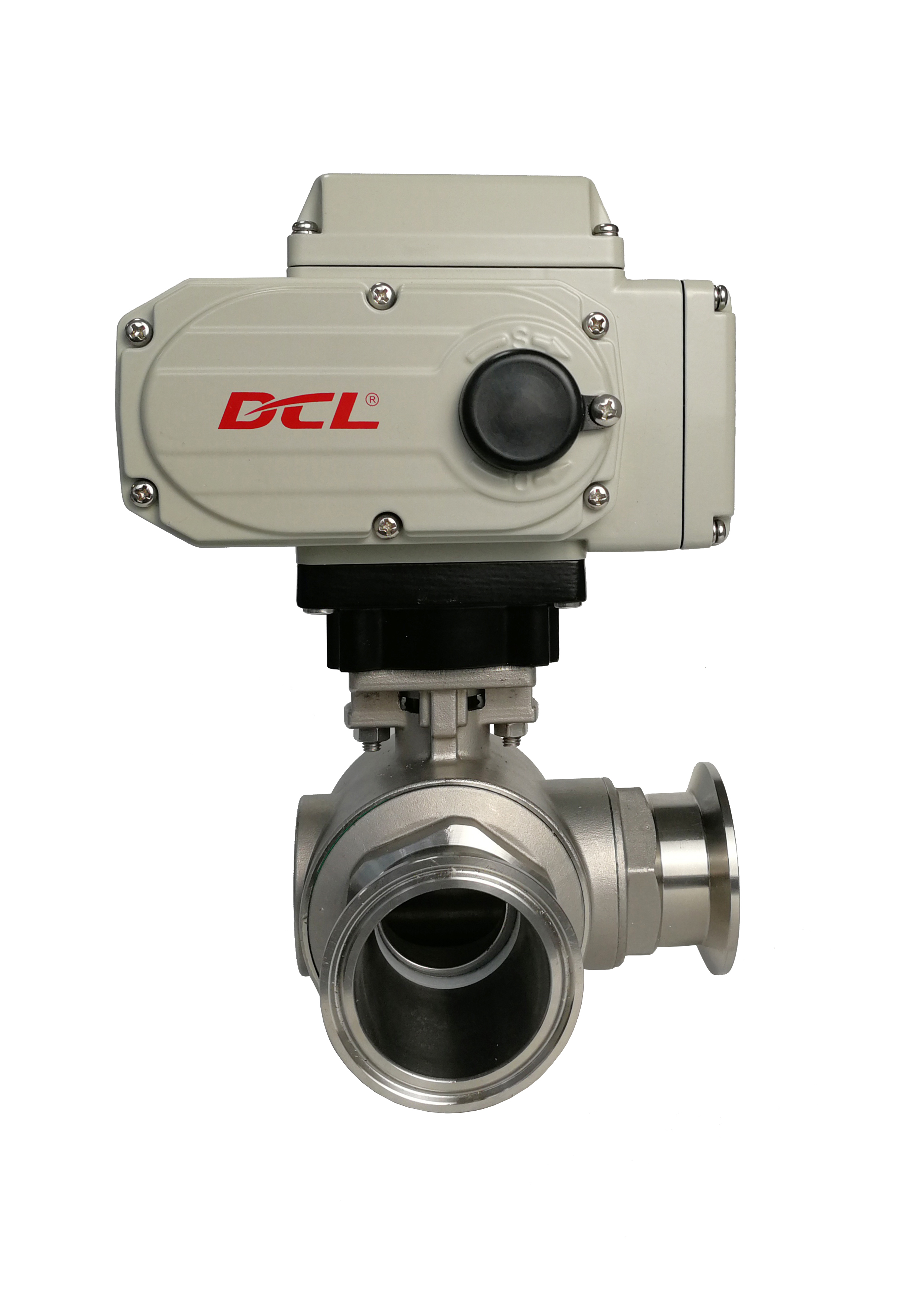

IP67 CE RoHS Quarter Turn 380VAC Motorized Valve Actuator 0

IP67 CE RoHS Quarter Turn 380VAC Motorized Valve Actuator 1
