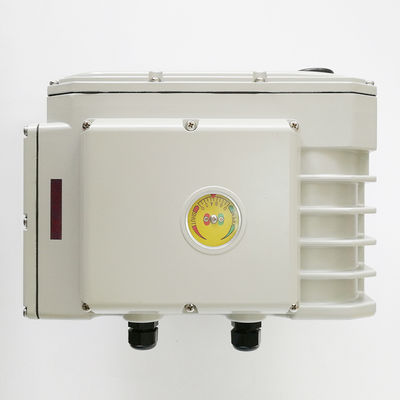

Motorized 3 Point Floating AC 380V 3 Phase Actuator
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Standard Torque||50Nm To 2500Nm/442in.lbs To 22125in.lbs||Standard Time||20S To 75S|
|Power Supply||380VAC/440VAC||Installation Angle||360°|
|Total Weight||2.5KG To 20KG||Motor Power||6W To 140W|
|Ambient Temperature||-25℃~+55℃ / -13°F~+131°F||Protection Grade||IP67 NEMA4/4X|
380V 3 Phase Actuator,
motorized 3 phase actuator,
DCL Waterproof Ball Valve Actuator
3 phase 380VAC motorized quarter turn actuator with 3 point floating control function
- 90° operation with mechanical limits
- Heavy duty fully enclosed squirrel-cage asynchronous motor with thermal overload protection
- All metal gear train with self-locking bronze alloy worm gear
- Rugged IP67 and NEMA 4X hard die cast aluminum alloy enclosure with powder coated
- Visual position indicator
- Manual operation with handle or handwheel
- Over torque protection and emergency power off button optional
- Standard ISO5211 direct mounting
- CSA certified per UL/CSA standard/CE marked/RoHS 3
The DCL-H series actuators motorized by 3 phase AC power. Actuators can have both clockwise (CW) and counter-clockwise (CCW) control inputs. One drives the actuator to its open, the other to its close position. If there is no signal (Null point) on either input the actuator simply stays in its last position.
Unique integral motor/housing design provides higher torque in a very small package. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation. Actuators are tested to rigorous UL and CSA standards and certified by CSA.
|Actuator Type||Standard Time/Torque||Optional Time/Torque||Turning Angle(Max.range)||Total Weight||Power Supply||Selected Control Circuit|
|DCL-02||15S/18Nm||7S/9Nm 60S/18Nm||0~90°Adjustable||1.2Kg||DC24V/AC24V AV110V/AC220V||Types of A/B/E/G|
|DCL-05||20S/50Nm||4S/20Nm 10S/30Nm 60S/50Nm||0~360°Adjustable||2.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-10||30S/100Nm||15S/50Nm 60S/100Nm||0~360°Adjustable||4.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-20||30S/200Nm||15S/100Nm 60S/200Nm||0~90°Adjustable||9Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-100||30S/1000Nm||15S/500Nm||0~90°Adjustable||19Kg||AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/H|
|Performance Parameters List of Adjusting type(Type E)|
