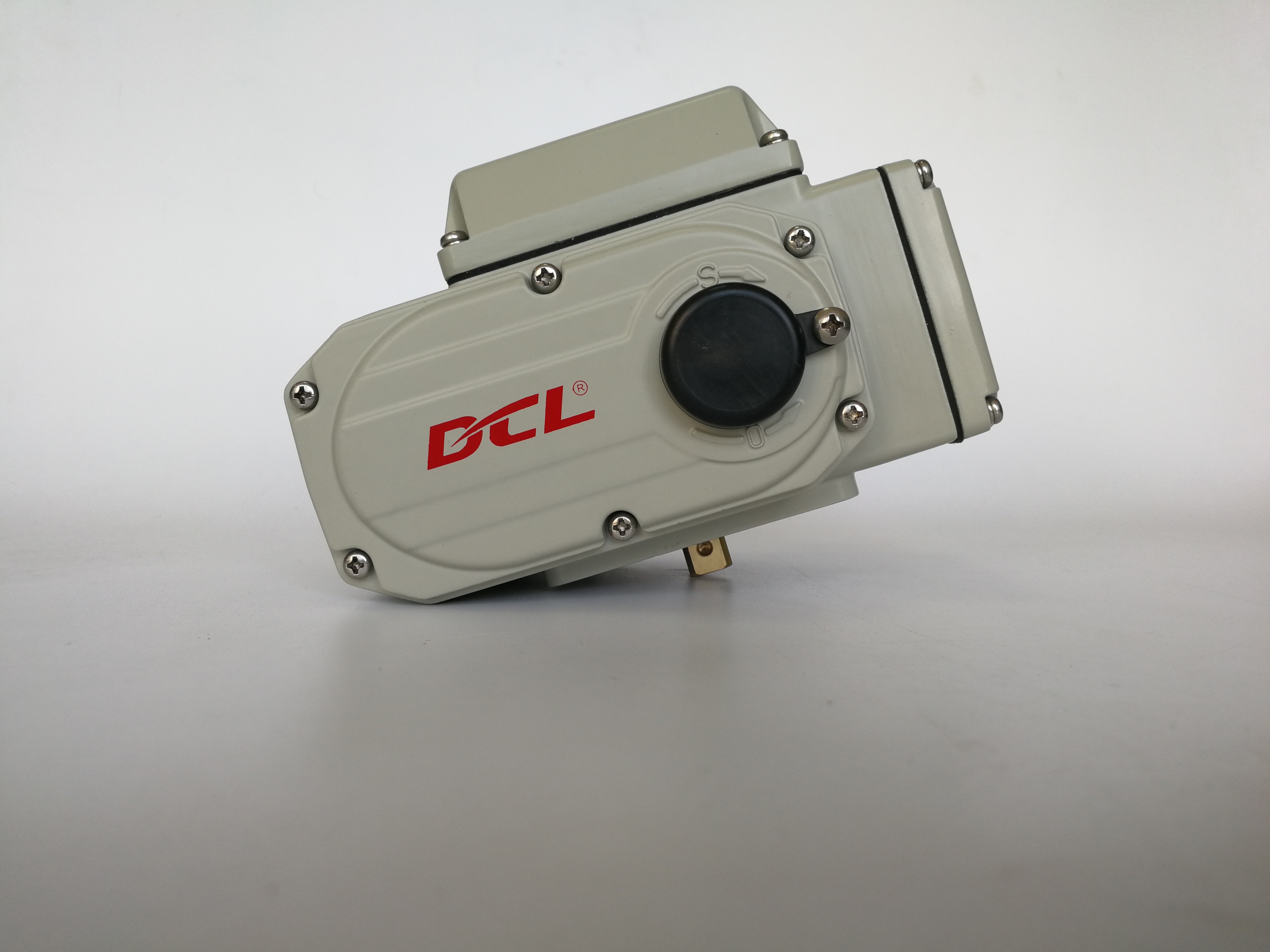

3 phase 1/4 Turn 400Nm DC24V HVAC Butterfly Valve Actuator

  • 3 phase 1/4 Turn 400Nm DC24V HVAC Butterfly Valve Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-05H/10H/20H/40H/60H/100H/160H/250H
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 3 Phase Actuator Installation Angle 360°
Total Weight 2.5KG To 20KG Power Supply 380VAC/400VAC/415VAC
Operation 1/4 Turn Operation Type Quarter Turn Actuator
Highlight

3 phase butterfly valve actuator

,

24V HVAC actuator with warranty

,

400Nm quarter turn actuator
Leave a Message
Product Description
3 phase actuator powered by 3 phase AC with passive contact switch for valve position
Description
DCL compact electric actuators are widely applied in HVAC systems, particularly for use with butterfly valves. Within building automation systems, they play a pivotal role in regulating indoor temperature, air-handling unit airflow, chilled and hot water flow, condensate drainage, and overall hydraulic balancing.
The DCL H-type control circuit, paired with a three-phase AC motor, is specially designed for actuators powered by 380 VAC or 440 VAC (50/60 Hz)—power supplies commonly utilized in heavy-duty industrial environments such as power plants and steel mills. Like single-phase actuators, when a continuous voltage control signal is applied, the motor drives a robust all-metal gear train to rotate the output shaft by 90°. Travel is precisely regulated by internal cams that actuate limit switches, automatically stopping the motor and delivering a dry-contact signal at the fully open position. Upon receiving a reverse continuous signal, the motor operates in the opposite direction, returning the actuator to the closed position.
The actuator is easy to install and fully complies with the ISO 5211 multi-flange mounting standard, equipped with a double-square output drive for secure valve coupling.
Specification:
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200
Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm
10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm
19.5Kg
DCL-250 75S/2500Nm
20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm
3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg
Features
  • 1/4 turn operation with self-locking
  • Modulating type available with electric positioning system
  • Automate ball valve and butterfly valve to adjust or cut off flow
  • Class F insulating motor
  • Heavy duty motor with thermal overload protection/duty rate 80%
  • Over 10000 times full range life cycle with full rated load
  • Resistance to extra low and high temperature and high moisture environment
  • Two auxiliary limit switches to confirm valve position
  • Standard manual handle
  • Emergency local power off button optional
  • Self-locking all metal gear with soft nitriding treatment, no additional brake needed
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested
