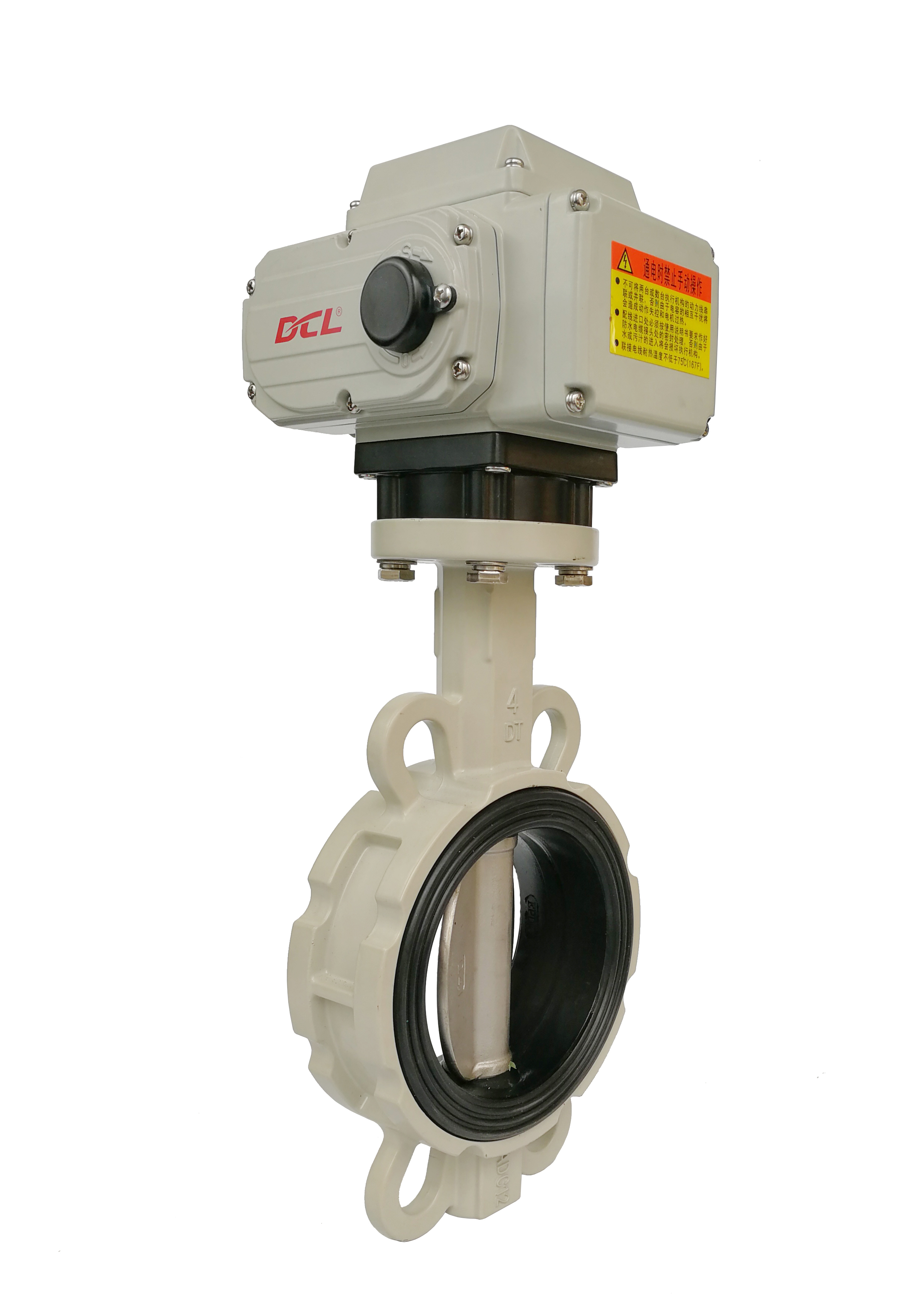

Compact 1/4 Turn 400Nm DC24V HVAC Butterfly Valve Actuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 3 Phase Actuator | Installation Angle | 360° |
|---|---|---|---|
| Total Weight | 2.5KG To 20KG | Power Supply | 380VAC/400VAC/415VAC |
| Operation | 1/4 Turn Operation | Type | Quarter Turn Actuator |
Product Description
3 phase actuator powered by 3 phase AC with passive contact switch for valve position
Description
DCL compact electric actuators are widely used in HVAC applications, particularly with butterfly valves. In building automation systems, these actuators play a critical role in regulating indoor temperature, air-handling unit airflow, chilled and hot water flow, condensate drainage, and overall hydraulic balancing.
The DCL H-type control circuit combined with a three-phase AC motor is specifically designed for actuators powered by 380 VAC or 440 VAC at 50/60 Hz—power supplies commonly found in heavy-duty industrial environments such as power plants and steel mills. Similar to single-phase actuators, when a continuous voltage control signal is applied, the motor drives a rugged, all-metal gear train that rotates the output shaft through 90°. Travel is precisely controlled by internal cams that actuate limit switches, automatically stopping the motor and providing a dry-contact signal at the fully open position. When a reverse continuous signal is received, the motor runs in the opposite direction, returning the actuator to the closed position.
The actuator is easy to install and fully compliant with ISO 5211 multi-flange mounting standards, featuring a double-square output drive for reliable valve coupling.
Specification:
| Actuator Type | Butterfly Valve(≤PN1.0MPa) | Ball Valve(≤PN1.6MPa) | Vent Valve(≤PN0.1MPa) |
|---|---|---|---|
| DCL-02 | ≤DN40 | ≤DN32 | |
| DCL-05 | DN50~65 | DN40 | DN50~80 |
| DCL-10 | DN80~100 | DN50~65 | DN100~200 |
| DCL-20 | DN125~150 | DN80~100 | DN250~300 |
| DCL-40 | DN200 | DN125 | DN350~450 |
| DCL-60 | DN250 | DN150 | DN500~600 |
| DCL-100 | DN300 | DN200 | DN700~800 |
| DCL-160 | DN350~400 | DN250 | DN900 |
| DCL-250 | DN450~600 | DN300~350 | DN1000~1200 |
| Actuator Type | Standard Time/Torque | Optional Time/Torque | Turning Angle(Max.range) | Total Weight | Power Supply | Selected Control Circuit |
|---|---|---|---|---|---|---|
| DCL-02 | 15S/18Nm | 7S/9Nm 60S/18Nm | 0~90°Adjustable | 1.2Kg | DC24V/AC24V AV110V/AC220V | Types of A/B/E/G |
| DCL-05 | 20S/50Nm | 4S/20Nm 10S/30Nm 60S/50Nm | 0~360°Adjustable | 2.5Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-10 | 30S/100Nm | 15S/50Nm 60S/100Nm | 0~360°Adjustable | 4.5Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-20 | 30S/200Nm | 15S/100Nm 60S/200Nm | 0~90°Adjustable | 9Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-40 | 30S/400Nm | 15S/200Nm 60S/400Nm | 9.5Kg | |||
| DCL-60 | 45S/600Nm | 10Kg | ||||
| DCL-100 | 30S/1000Nm | 15S/500Nm | 0~90°Adjustable | 19Kg | AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/H |
| DCL-160 | 48S/1600Nm | 19.5Kg | ||||
| DCL-250 | 75S/2500Nm | 20Kg | ||||
| Performance Parameters List of Adjusting type(Type E) | ||||||
| DCL-MZZ | 18Nm | 3r | 1.2Kg | DC24V | Type MZZ | |
| DCL-10GE | 30S/0~100Nm | 15S/0~100Nm | 0~90°Adjustable | 4.5Kg | DC24V±10% | Type GE |
| DCL-40GE | 30S/100~600Nm | 15S/100~400Nm | 9.5Kg | |||
Features
- 1/4 turn operation with self-locking
- Modulating type available with electric positioning system
- Automate ball valve and butterfly valve to adjust or cut off flow
- Class F insulating motor
- Heavy duty motor with thermal overload protection/duty rate 80%
- Over 10000 times full range life cycle with full rated load
- Resistance to extra low and high temperature and high moisture environment
- Two auxiliary limit switches to confirm valve position
- Standard manual handle
- Emergency local power off button optional
- Self-locking all metal gear with soft nitriding treatment, no additional brake needed
- CSA listed/UL complied/CE marked/RoHS 3.0 tested
