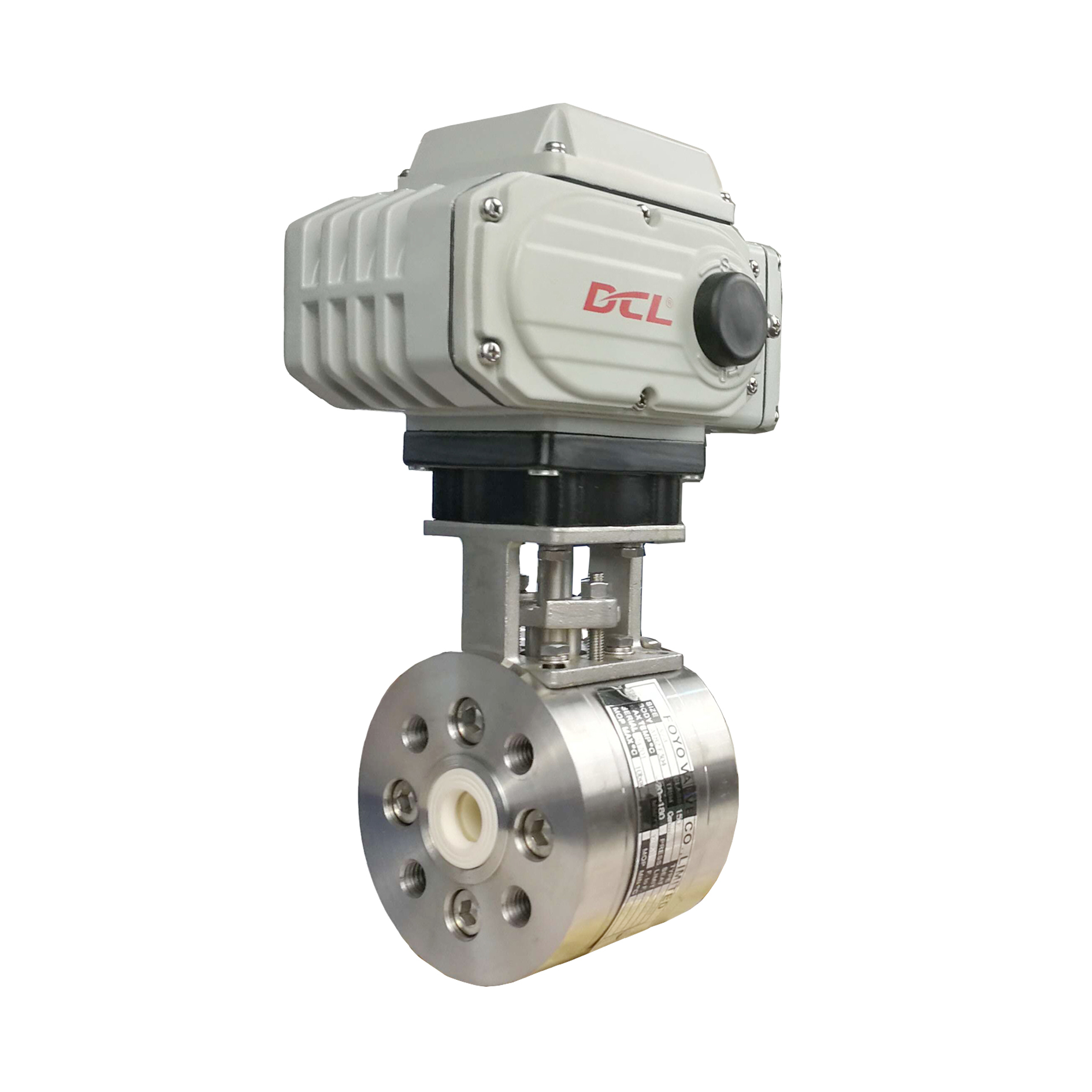

2-Way / 3-Way Clamp Connection Electric Actuated Stainless Steel Ball Valve
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
Description
DCL’s electric 3-way ball valves with clamp connection design are widely used in the water-cooling systems of wind power installations.
Wind farms are typically located in harsh environments such as offshore areas, mountain tops, and deserts, where conditions can include strong winds, extreme temperatures, and air containing salt or sulfur compounds. Routine inspection and maintenance in such environments are often difficult or even impossible. Therefore, equipment used in wind farms must feature exceptional stability and durability, with a service life of at least 8–10 years.
DCL electric actuators are built to meet these demanding conditions and have successfully passed a series of rigorous environmental reliability tests, including:
- 500-hour neutral salt spray test
- Start-up tests at -40°C and 60°C
- 200,000-cycle endurance test under rated load
- Vibration resistance test
- EMC (Electromagnetic Compatibility) performance test
To ensure leak-free operation even after frequent switching, DCL’s 3-way clamp-type stainless steel ball valves adopt a gland structure with a triple sealing ring design. The clamp connection allows for quick installation and easy replacement during maintenance.
Certified by CSA and UL, DCL’s electric valves are also fully compliant for export to North America.
Specification
| Actuator Type | Butterfly Valve(≤PN1.0MPa) | Ball Valve(≤PN1.6MPa) | Vent Valve(≤PN0.1MPa) |
|---|---|---|---|
| DCL-02 | ≤DN40 | ≤DN32 | |
| DCL-05 | DN50~65 | DN40 | DN50~80 |
| DCL-10 | DN80~100 | DN50~65 | DN100~200 |
| DCL-20 | DN125~150 | DN80~100 | DN250~300 |
| DCL-40 | DN200 | DN125 | DN350~450 |
| DCL-60 | DN250 | DN150 | DN500~600 |
| DCL-100 | DN300 | DN200 | DN700~800 |
| DCL-160 | DN350~400 | DN250 | DN900 |
| DCL-250 | DN450~600 | DN300~350 | DN1000~1200 |
Ball valve
- Connection: Clamp type
- Body: SS304/CF3M
- Treatment: Sanitary optional
- Way type: T type or L type optional
- Size: DN 32 to DN 100 (1 1/4" to 4")
Electric Actuator
- Type: On-off or Modulating with 4-20mA input/output signal
- Power Supply: 220VAC or 24VDC optional
- Torque: 50Nm to 600Nm
- Manual override with Allen wrench or hand wheel
- Direct mounting with ISO5211 multi flange
