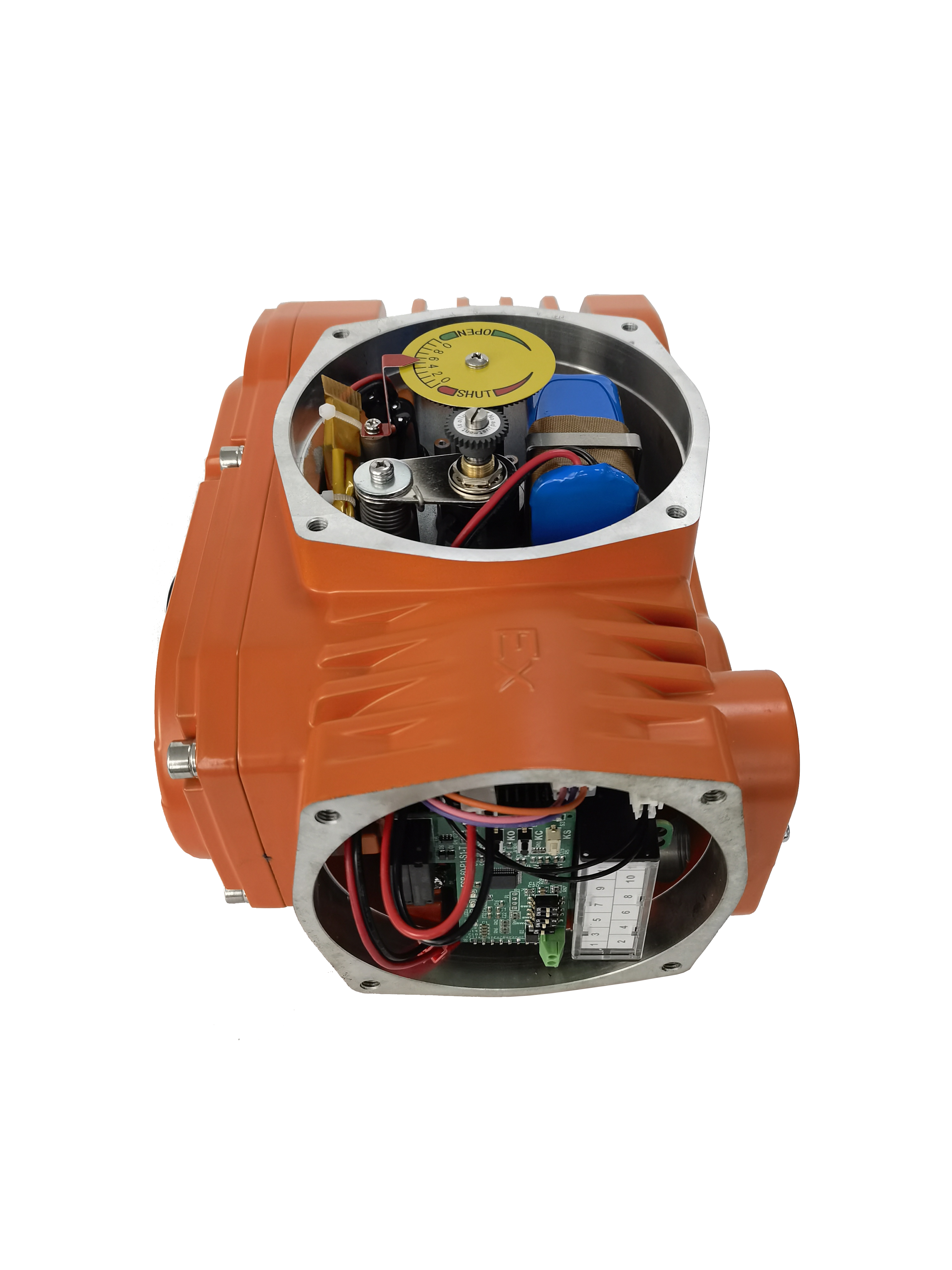

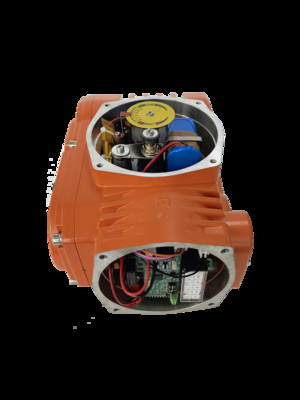

Explosion Proof Electric Actuator IP68 CSA Power-off Reset Modbus
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard Torque | 50Nm To 600Nm | Standard Time | 20s To 45s |
|---|---|---|---|
| Output Signal | 4-20mA | Explosion Proof Grade | ExdIICT4 |
| Protection Grade | IP68 NEMA 4X | Total Weight | 3kg To 10kg |
| Motor Power | 6W To 90W | Ambient Temperature | -25℃~+55℃ / -13°F~+131°F |
| Power Supply | 24VAC/110VAV/220VAC/380VAC | Installation Angle | 360° |
Product Description
Explosion-Proof IP68 CSA Power-off Reset Modbus Electric Actuator
Description:
DCL explosion-proof electric actuators are widely applied in high-risk industries such as petroleum, chemical, and metallurgy due to their exceptional reliability, durability, and after-sales service, earning high trust and preference from customers.
Through the optional power-off reset function, the electric actuator can drive the valve to a pre-configured safety position in the event of a power failure. This safety position can be configured to be fully closed, fully open, or to maintain its current position.
Features:
- All power-off reset components are built-in, maintaining the compact and space-saving design of the DCL electric actuator.
- Equipped with robust surge protection circuitry, capable of withstanding 1kV lightning surge waveforms, ensuring outdoor operation without damage.
- Features 4kV EFT-resistant interface circuits, guaranteeing stable and reliable valve opening adjustment in complex electromagnetic environments.
- Supports Modbus-RTU fieldbus communication.
- CEATEXIECExSAERCRoHSCSA Certification
-
IP68 rating effectively resolves the chronic issues of low protection and poor performance associated with traditional explosion-proof products.
-
The high-quality aluminum alloy housing provides superior protective capability.
Specification:
| Actuator Type | Standard Time/Torque | Optional Time/Torque | Turning Angle(Max.range) | Total Weight | Power Supply | Selected Control Circuit |
|---|---|---|---|---|---|---|
| DCL-Ex05 | 20S/50Nm | 4S/20Nm 10S/30Nm 60S/50Nm | 0~360°Adjustable | 3.0Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex10 | 30S/100Nm | 15S/50Nm 60S/100Nm | 0~90°Adjustable | 5.0Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex20 | 30S/200Nm | 15S/100Nm 60S/200Nm | 0~90°Adjustable | 5.5Kg | DC24V/AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex40 | 30S/400Nm | 15S/200Nm 60S/400Nm | 0~90°Adjustable | 9.5Kg | DC24V/AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex60 | 45S/600Nm | 0~90°Adjustable | 10Kg | DC24V/AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| Actuator Type | Butterfly Valve(≤PN1.0MPa) | Ball Valve(≤PN1.6MPa) | Vent Valve(≤PN0.1MPa) |
|---|---|---|---|
| DCL-Ex05 | DN50~65 | DN40 | DN50~80 |
| DCL-Ex10 | DN80~100 | DN50~65 | DN100~200 |
| DCL-Ex20 | DN125~150 | DN80~100 | DN250~300 |
| DCL-Ex40 | DN200 | DN125 | DN350~450 |
| DCL-Ex60 | DN250 | DN150 | DN500~600 |
