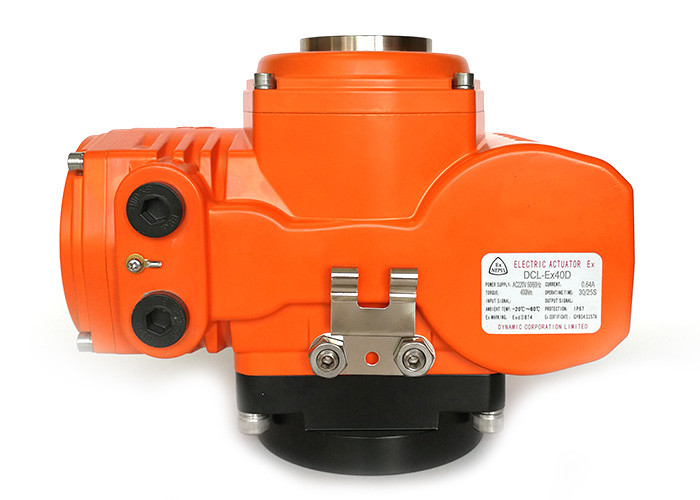

ExⅡCT4 200Nm Explosion Proof Quarter Turn Electric Actuator

  • ExⅡCT4 200Nm Explosion Proof Quarter Turn Electric Actuator
  • ExⅡCT4 200Nm Explosion Proof Quarter Turn Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67/ATEX/IECEx/UL
Model Number DCL-Ex20
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Explosion Proof Valve Actuator Type On-off, Modulating
Protection Class IP67 Type Quarter Turn Electric Actuator
Medium Gas/Oil/Water/Other Material Of Seal Surface Soft Sealed
Rated Current 0.19A~3.12A Connection Form Flange
High Light

ExⅡCT4 Quarter Turn Electric Actuator

,

Explosion Proof Quarter Turn Electric Actuator

,

200Nm Explosion Proof Actuator
Leave a Message
Product Description

ExⅡCT4 200Nm Quarter Turn Electric Actuator, explosion proof actuator



Features

  1. Name: Explosion Proof Valve Actuator
  2. Type: On-off, Modulating
  3. Type: Quarter Turn Electric Actuator
  4. Motor Power: 25W/30W/40W
  5. Material Of Seal Surface: Soft Sealed
  6. Connection Form: Multi-Flange
  7. Power: DC24V/AC110V/AC380V/AC220V
  8. Standard Time/Torque: 30S/200Nm
  9. Protection Class: IP67
  10. Ambient Temperature: -20℃~+60℃
  11. Medium: Gas/Oil/Water/Other
  12. Rated Current: 0.19A~3.12A


Specification



Type DCL-Ex20
Power DC24V AC110V AC380V AC220V
Motor Power 25W 40W 30W 40W
Rated Current 3.12A 0.63A 0.19A 0.35A
Standard Time/Torque 60S/200Nm 30S/200Nm
Optional Time/Torque 30S/100Nm 15S/100Nm 15S/100Nm 60S/200Nm
Turning Angle 0～90° Adjustable
Available Control Circuit Type of A,B,C,D,E,F,G,H,
Total Weight 5.5kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC
Withstand Voltage Class DC24V: 500VAC 1 minute,AC110V/AC220V: 1500VAC 1 minute,AC380V: 1800VAC 1 minute
Protection Class IP67
Expiosive-proof grade ExⅡBT4Gb
Installation Angle 360° at any angle
Electric Interface 2-M20×1.5explosion-proof plug,clients should install corresponding explosion-proof cable connector when using according to the cable selected.
Ambient Temperature -30～+60℃
Optional Function Over-torque Protector/Heater
