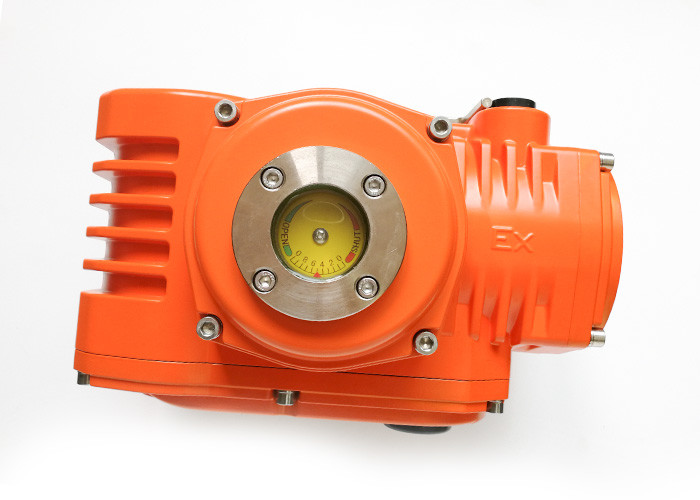

CSA 90 Degree Turn ExdIICT4 150Nm Explosion Proof Actuator

  • CSA 90 Degree Turn ExdIICT4 150Nm Explosion Proof Actuator
  • CSA 90 Degree Turn ExdIICT4 150Nm Explosion Proof Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP68/IECEx/ATEX/UL
Model Number All explosion proof electric actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Torque 50Nm To 600Nm Standard Time 20s To 45s
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC Motor Power 6W To 90W
Protection Grade IP68 NEMA 4X Total Weight 3kg To 10kg
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Installation Angle 360°
High Light

90 Degree Turn Explosion Proof Actuator

,

CSA Explosion Proof Actuator

,

150Nm Explosion Proof Electric Actuator
Leave a Message
Product Description

90° Turn ExdIICT4 Explosion Proof Electric Actuator, CSA certified 50Nm-600Nm



Features:

  • Quarter turn with proportional to input control signal, mechanical limits
  • Auto-calibrating with continuously output position monitoring signal as standard
  • Multi input signal switchable in one smart control pack
  • Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
  • Fully potted resin plastic packaged controller resistance to vibration and moisture
  • Stable operation on extra high/low temperature with high humidity
  • All metal gears with self-locking worm gear
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested



Description

DCL anti-explosion electric actuators’ enclosure are special casted by larger tonnage die casting machine than common series actuator, to ensure even very small stomas are not existed. The shell thickness is thicker than common shell to suffer gas explosion inside actuator. The quality of cylinder stop surface is the key part to guarantee explosion proof. Scratches, mistake tolerances, shorter stop length, rust points and cracks are all definitely not allowed on this surface. Thus all shells are 100% checked by DCL after shipping from suppliers.

Actuator are officially tested by CSA to meet ATEX, UL and CSA standard and can be used in different regions all around the world, including Europe, north America and any other places.



Specification:



Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-Ex05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 3.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex10 30S/100Nm 15S/50Nm 60S/100Nm 0~90°Adjustable 5.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 5.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H

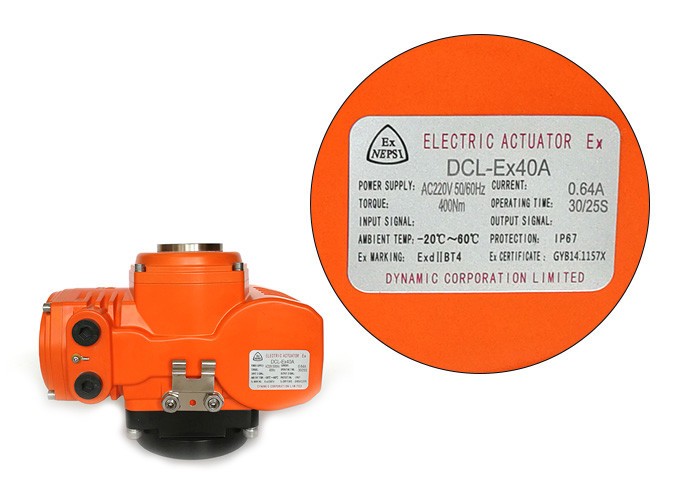

DCL-Ex40 30S/400Nm 15S/200Nm 60S/400Nm 0~90°Adjustable 9.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex60 45S/600Nm   0~90°Adjustable 10Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-Ex05 DN50~65 DN40 DN50~80
DCL-Ex10 DN80~100 DN50~65 DN100~200
DCL-Ex20 DN125~150 DN80~100 DN250~300
DCL-Ex40 DN200 DN125 DN350~450
DCL-Ex60 DN250 DN150 DN500~600
