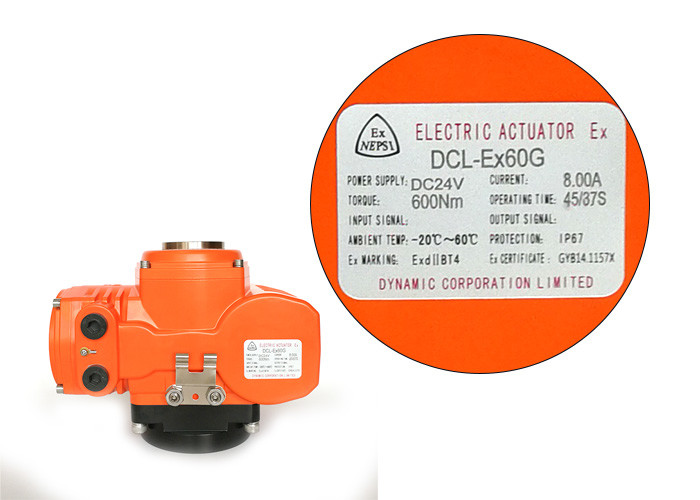

Fully Enclosed Motor DC24V 600Nm Explosion Proof Electric Actuator
| Place of Origin | WUHAN,CHINA |
|---|---|
| Brand Name | DCL |
| Certification | CE/ROHS/CSA/IP68/IECEx/ATEX/UL |
| Model Number | All explosion proof electric actuator |
| Minimum Order Quantity | 1pc |
| Packaging Details | carton/pallet |
| Delivery Time | 7 working days |
| Payment Terms | D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 2000PCS/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Explosion Proof Electric Actuator | Standard Time | 20s To 45s |
|---|---|---|---|
| Power Supply | 24VAC/110VAV/220VAC/380VAC/24VDC | Type | Heavy Duty Actuator |
| Motor Power | 6W To 90W | Feature | Fully Enclosed High Performance Motor |
| High Light | CSA Explosion Proof Electric Actuator,380VAC Explosion Proof Electric Actuator,IP68 waterproof valve actuator |
||
Product Description
Heavy duty explosion proof electric actuator / fully enclosed high performance motor
Specification:
| Actuator Type | Standard Time/Torque | Optional Time/Torque | Turning Angle(Max.range) | Total Weight | Power Supply | Selected Control Circuit |
| DCL-Ex05 | 20S/50Nm | 4S/20Nm 10S/30Nm 60S/50Nm | 0~360°Adjustable | 3.0Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex10 | 30S/100Nm | 15S/50Nm 60S/100Nm | 0~90°Adjustable | 5.0Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex20 | 30S/200Nm | 15S/100Nm 60S/200Nm | 0~90°Adjustable | 5.5Kg | DC24V/AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex40 | 30S/400Nm | 15S/200Nm 60S/400Nm | 0~90°Adjustable | 9.5Kg | DC24V/AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex60 | 45S/600Nm | 0~90°Adjustable | 10Kg | DC24V/AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| Actuator Type | Butterfly Valve(≤PN1.0MPa) | Ball Valve(≤PN1.6MPa) | Vent Valve(≤PN0.1MPa) |
| DCL-Ex05 | DN50~65 | DN40 | DN50~80 |
| DCL-Ex10 | DN80~100 | DN50~65 | DN100~200 |
| DCL-Ex20 | DN125~150 | DN80~100 | DN250~300 |
| DCL-Ex40 | DN200 | DN125 | DN350~450 |
| DCL-Ex60 | DN250 | DN150 | DN500~600 |
Descriptions
DCL actuators use self-designed motors that is non-ventilated and full enclosed with high start torque. VC motors are squirrel-cage asynchronous induction motor. DC motors are permanent magnet brush motor. All motors from suppliers must be type tested by DCL to confirm every specification, such as the power, voltage-current curve, speed-torque curve and especially the temperature rise during heavy duty applications. Due to the very compact size of actuator, the temperature rise of motor must be low, to make sure the outer shell’s temperature will not go beyond 135℃ or 300.6F.
All actuators have got CSA certifications/ATEX certifications and IECEx certificates.
Heavy duty explosion proof electric actuator / fully enclosed high performance motor
| Name: | Explosion Proof Electric Actuator |
| Standard Time: | 20s To 45s |
| Type: | Heavy Duty Actuator |
| Protection Grade: | IP68 NEMA 4X |
| Ambient Temperature: | -25℃~+55℃ / -13°F~+131°F |
| Feature: | Fully Enclosed High Performance Motor |
| Standard Torque: | 50Nm To 600Nm |
| Power Supply: | 24VAC/110VAV/220VAC/380VAC/24VDC |
| Motor Power: | 6W To 90W |
| Total Weight: | 3kg To 10kg |
| Installation Angle: | 360° |
Features:
- Quarter turn operation with mechanical limits
- ExdIICT4 grade for ATEX and Class 1 Zone 1, Group C, D T4 grade for Class 1 Division 1
- Watertight and whether proof IP68 and NEMA 4X high pressure die cast aluminum alloy enclosure
- S2 short-time duty for on-off type with duty cycle 70% and 15mins non-stop operation
- S4 intermittent duty for modulating type with duty cycle 70% and 1200 starts/hour
- All metal gears with self-locking bronze alloy worm gear
- Stainless steel visual valve position indicator with 10mm hard tempered glass
- Manual override for emergency issue
- CSA certification per UL and CSA standard/ATEX certified
