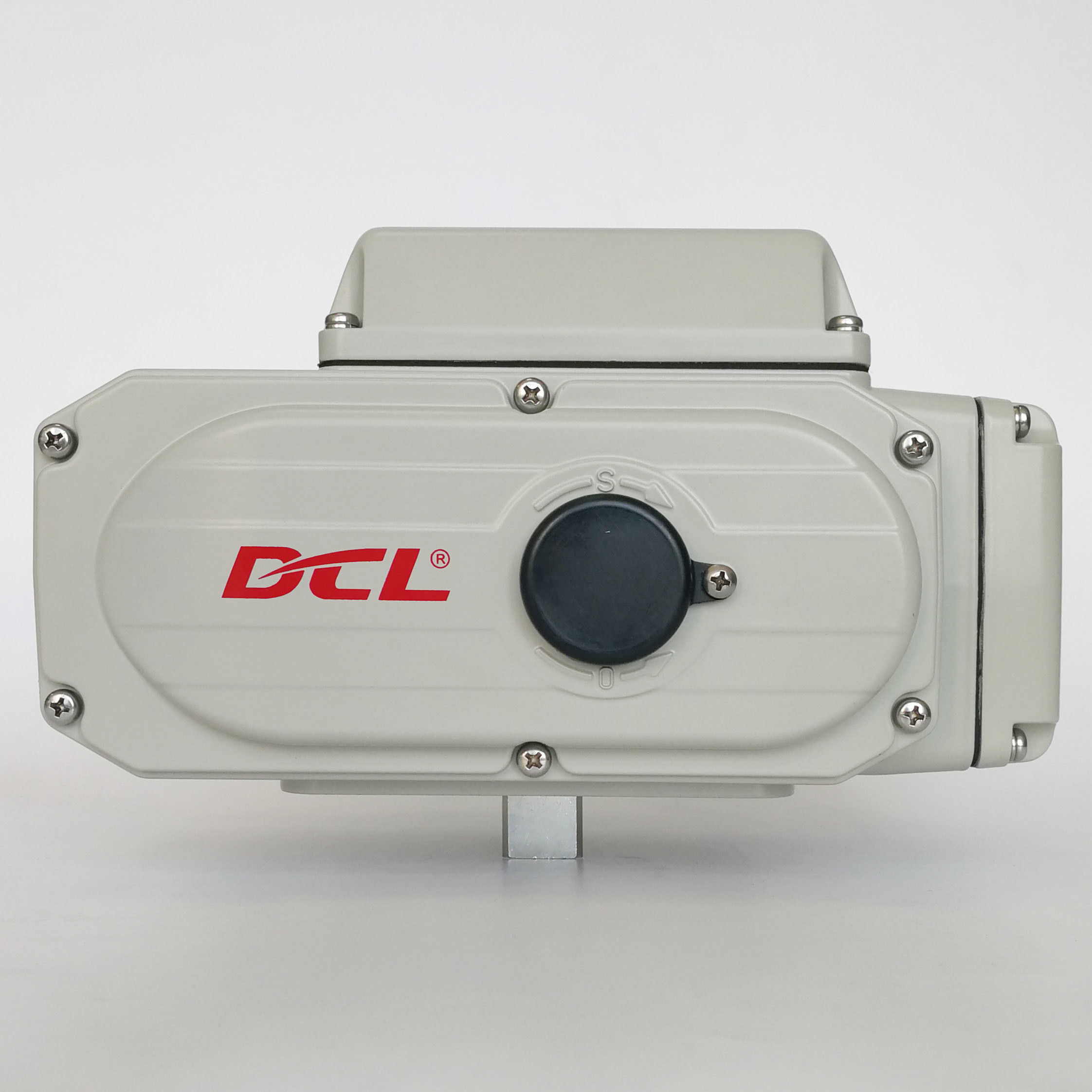

Permanent Lubricated 380v 500Nm 3 Phase Actuator
|Standard Time/Torque||30S To 75S/100Nm To 2500Nm/885in.lbs To 22125in.lbs||Installation Angle||360°|
|Total Weight||4.5KG To 20KG||Motor Power||15W To 140W|
|Ambient Temperature||-25℃~+55℃ / -13°F~+131°F||Protection Grade||IP67 NEMA4/4X|
500Nm 3 Phase Actuator,
380v Quarter turn actuator,
DCL Waterproof Valve Actuator
Emergency power off power button added 3 phase actuator with Heavy duty motor with overload protection
- 90° operation, middle position optional
- Non ventilation heavy duty motor with overheat protection
- Corrosion resistances housing with rust passivation aluminum alloy and thermally bonded polyester coating
- All 40Cr alloy spur gears, hard copper alloy worm gear, metal tapered roller bearings
- Permanent lubricated without maintenance for over 10000 full range life cycles
- Local button to cut off power when emergency issue happens for manual operation
- Valve position indicator/flat or convex
- ISO5211 multi flange mounting
- Allen wrench manual override/handwheel optional
- CSA certified per UL standard/CE marked
DCL electric actuators are compact but rugged to reach military industrial standard. All metal gears, housing and fully enclosed heavy duty squirrel-cage asynchronous induction motor make actuator can frequently run from open to close with super long life with constantly overload vibration. Not like actuators those may use plastic gears or bearings, DCL broad its applications to heavy industry field, even nuclear power plant and warship, where must be used very safely and stably. While also not like actuators with very huge volume or super weight that cost high, these small size actuators are also widely used for civil field with limit installation space and budget.

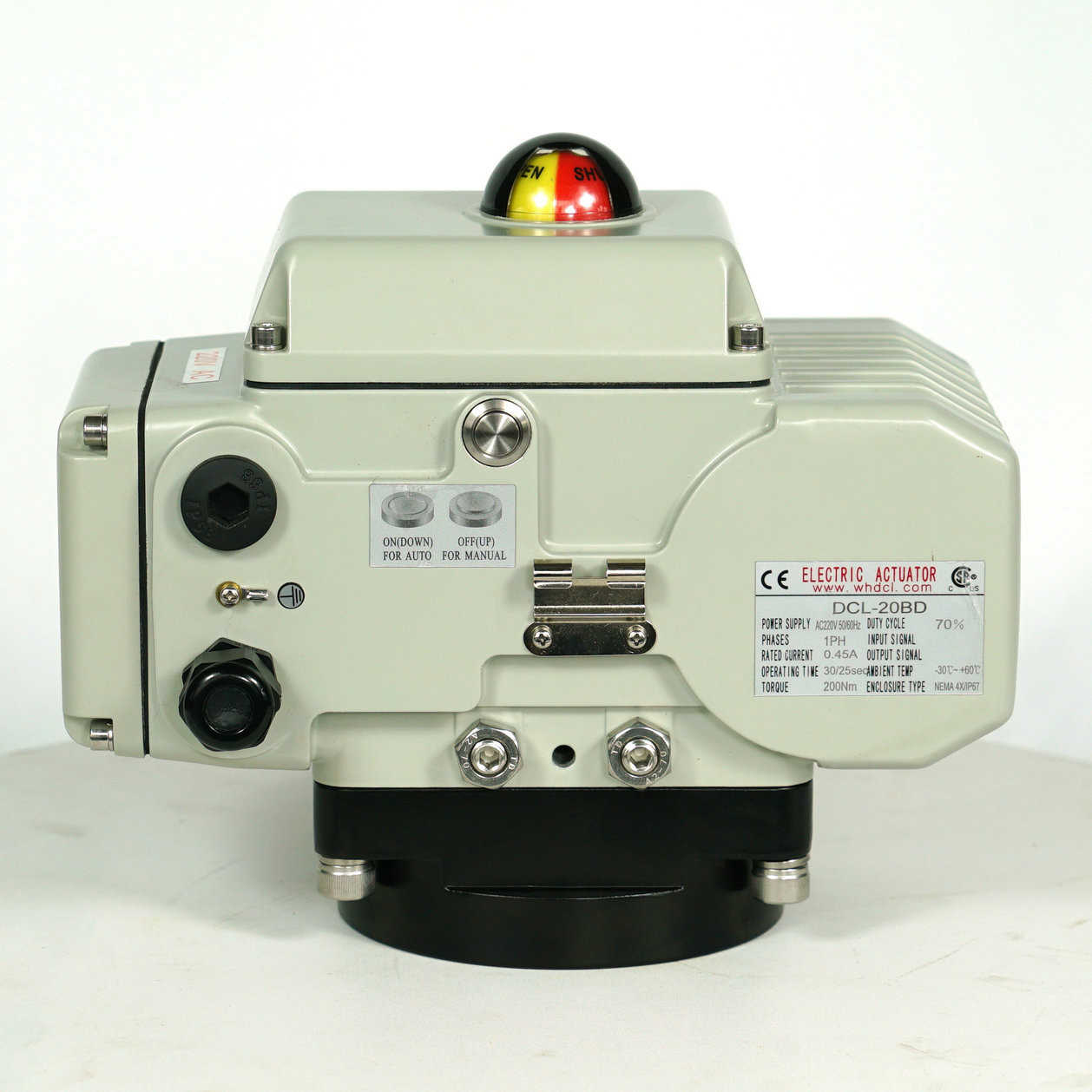

DCL can add standard handwheel to its electric actuators, both for common type or explosion proof type. To ensure the safety of manual handling, an emergency power off button is also available to avoid mistake operation. The power off button is on the back of actuator and very easy to reach. Sometimes, we can not confirm the actuator is powered or not, we just press the button. Commonly the handwheel is disconnect states with worm gear, when press handwheel in, it connects to worm gear and can drive the output drive and valve.
|Actuator Type||Standard Time/Torque||Optional Time/Torque||Turning Angle(Max.range)||Total Weight||Power Supply||Selected Control Circuit|
|DCL-02||15S/18Nm||7S/9Nm 60S/18Nm||0~90°Adjustable||1.2Kg||DC24V/AC24V AV110V/AC220V||Types of A/B/E/G|
|DCL-05||20S/50Nm||4S/20Nm 10S/30Nm 60S/50Nm||0~360°Adjustable||2.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-10||30S/100Nm||15S/50Nm 60S/100Nm||0~360°Adjustable||4.5Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-20||30S/200Nm||15S/100Nm 60S/200Nm||0~90°Adjustable||9Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-100||30S/1000Nm||15S/500Nm||0~90°Adjustable||19Kg||AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/H|
|Performance Parameters List of Adjusting type(Type E)|
