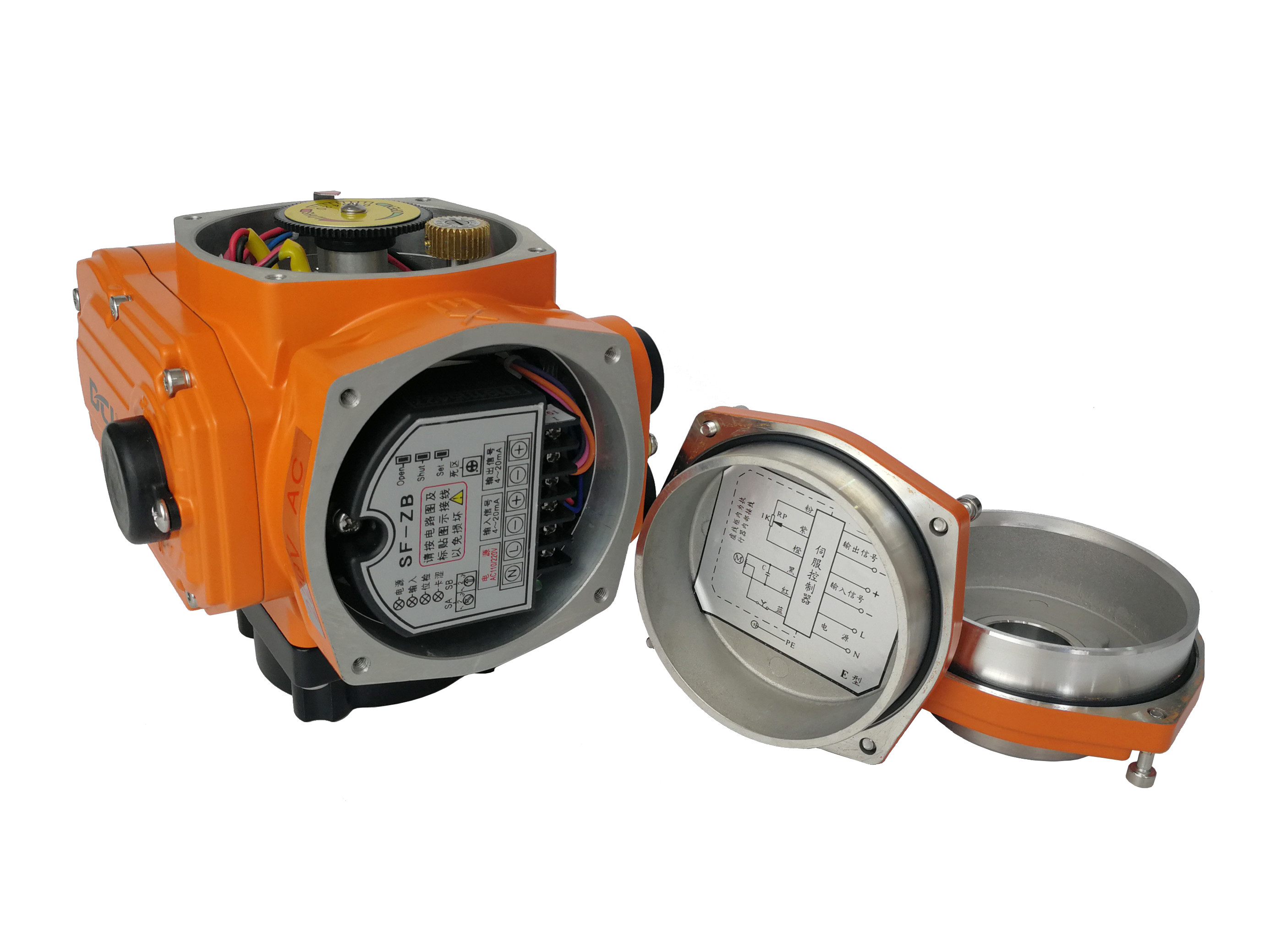

NEMA 4 10000 Times Explosion Proof Valve Actuator
|Place of Origin||WUHAN,CHINA|
|Model Number||All explosion proof electric actuator|
|Minimum Order Quantity||1pc|
|Delivery Time||7 working days|
|Payment Terms||D/P, T/T, Western Union, MoneyGram|
|Standard Torque||50Nm To 600Nm||Standard Time||20s To 45s|
|Power Supply||24VAC/110VAV/220VAC/380VAC/24VDC||Motor Power||6W To 90W|
|Protection Grade||IP68 NEMA 4X||Total Weight||3kg To 10kg|
|Ambient Temperature||-25℃~+55℃ / -13°F~+131°F||Installation Angle||360°|
explosion proof valve actuator,
DCL Explosion Proof Actuator,
IP68 waterproof valve actuator
Explosion proof electric actuator / NEMA 4 / 4X with soft nitriding addressing gear
- Quarter turn operation with mechanical limits
- Rugged IP68 and NEMA 4X aluminum enclosure with 100% under water sealing test.
- Explosion-proof surface and explosive pressure resistance per ATEX, UL and CSA standard
- CR40 alloy steel spur gears with soft nitriding to improve hardness and abrasion resistance
- Fully enclosed squirrel-cage asynchronous motor with fire treatment
- Self-locking bronze alloy worm gear
- Stainless steel visual valve position indicator with high strength tempered glass
- Manual override with Allen wrench or handwheel
- ExdIICT4 grade per ATEX/CSA/UL standard
DCL explosion proof electric actuators can reach 10000 times full range open and close life cycle with rated load and 200000 starts for modulating type. Spur gears are made of CR40 alloy steel with soft nitriding. Compared to powder metallurgy gears, CR40 alloy steel gear is harder and tougher. Commonly, gears are processed by blackening. But DCL newly adopt soft nitriding treatment to improve strength and abrasion resistance gears comparing to blackening. This soft nitriding process can decrease friction noise and highly increase gear surface anti-corrosion capability. Moreover, this new process is also more friendly to environment.
Actuators have got CSA certification per ATEX/CSA/UL standard.
|Actuator Type||Standard Time/Torque||Optional Time/Torque||Turning Angle(Max.range)||Total Weight||Power Supply||Selected Control Circuit|
|DCL-Ex05||20S/50Nm||4S/20Nm 10S/30Nm 60S/50Nm||0~360°Adjustable||3.0Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-Ex10||30S/100Nm||15S/50Nm 60S/100Nm||0~90°Adjustable||5.0Kg||DC24V/AC24V AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-Ex20||30S/200Nm||15S/100Nm 60S/200Nm||0~90°Adjustable||5.5Kg||DC24V/AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-Ex40||30S/400Nm||15S/200Nm 60S/400Nm||0~90°Adjustable||9.5Kg||DC24V/AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|DCL-Ex60||45S/600Nm||0~90°Adjustable||10Kg||DC24V/AV110V/AC220V/AC380V||Types of A/B/C/D/E/F/G/H|
|Actuator Type||Butterfly Valve(≤PN1.0MPa)||Ball Valve(≤PN1.6MPa)||Vent Valve(≤PN0.1MPa)|
