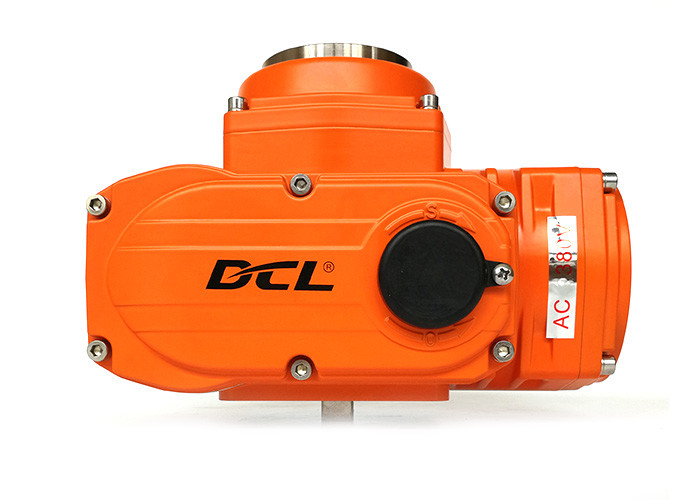

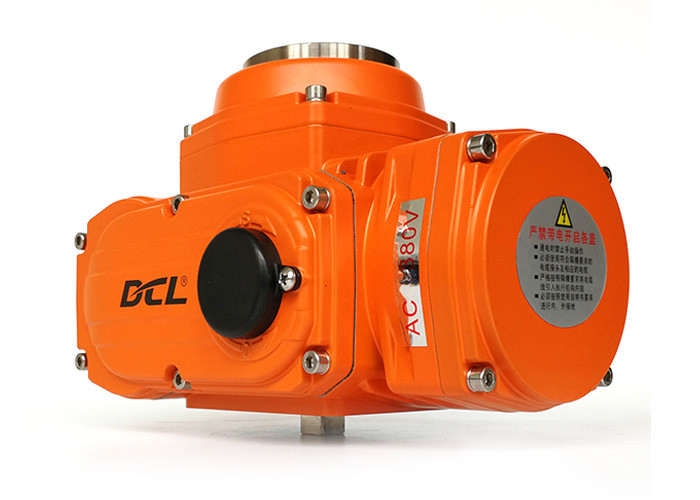

Watertight Modulating 24VDC Motor Explosion Proof Actuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard Torque | 0Nm To 600Nm | Standard Time | 20s To 45s |
|---|---|---|---|
| Input Signal | 4-20mA/2-10V/1-5V | Output Signal | 4-20mA |
| Explosion Proof Grade | ExdIICT4 / Group C, D T4 | Protection Grade | IP68 NEMA 4X |
| Power Supply | 24VDC | Total Weight | 3kg To 10kg |
| Motor Power | 13W To 70W | Installation Angle | 360° |
| Ambient Temperature | -25℃~+55℃ / -13°F~+131°F | ||
| High Light | DCL Explosion Proof Electric Actuator,IP68 waterproof valve actuator,DCL anti explosion electric actuator |
||
Product Description
Modulating type explosion proof electric actuator with DC motor
Features
- Modulating type powered by 24VDC, quarter turn operation
- Torque can be precisely setting within a certain range
- Heavy duty DC brush motor with lower temperature rise, longer life, provide high start torque and very small inertia force
- Torque test control and over torque protection by current
- Compact smart resin plastic packaged proportional control pack installed
- IP 68 watertight robust aluminum alloy enclosure, protection against dust and water
- Stainless steel visual valve position indicator
- Standard ISO5211 multi-flange installation
- UL standard for Zone and Division System/ATEX/CE/IECEx/RoHS 3 complied
Description
DCL-Ex10GE/Ex40GE are 24VDC power motorized electric actuator. Full enclosed DC brush motor with flameproof surface ensure sparks will not go to another cavity. Fully potted controller to help protect the electronics from vibration and moisture. Cylinder stop type connection surfaces with flame proof gap and length comply to ATEX, UL and CSA standard. Valve position indicator is covered with 10mm tempered glass that can keep strength in extra high and extra low temperature, to ensure clear vision even when fire happens. Anti-condensation heater is optional to protect actuator against moist. Enclosures and covers are 100% tested by DCL before acceptable from suppliers to ensure machining precise.
Explosion proof electric actuators have passed CSA tests and been certified by CSA. CE/ATEX/RoHS 3.0 have been tested and complied.
