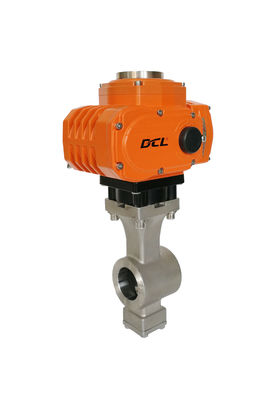

DCL H Three Phase ATEX 50Hz Explosion Proof Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67/ATEX/IECEx/UL
Model Number DCL-Ex05H/Ex10H/Ex20H/Ex40H/Ex60H
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Torque 50Nm To 600Nm Standard Time 20s To 45s
Power Supply 380VAC Explosion Proof Grade ExdIICT4/ExdⅢC T130
Protection Grade IP68 NEMA 4X Total Weight 3kg To 10kg
Motor Power 6W To 40W Installation Angle 360°
Ambient Temperature -25℃~+55℃ / -13°F~+131°F
High Light

24VDC motor explosion proof actuator

,

24V Explosion Proof Electric Actuator

,

DCL Explosion Proof Actuator

Leave a Message
Product Description

3-phase AC motorized explosion proof electric actuator / ATEX standard



Features

  • 90° quarter turn operation
  • Modulating type available with electric positioning system
  • Class F insulating motor with thermal overload protection
  • Rugged IP68 hard die cast aluminum alloy enclosure/100% under water test
  • Two auxiliary limit switches to confirm valve position
  • Visual valve position indicator with high strength glass
  • Self-locking all metal gear with soft nitriding treatment, no additional brake needed
  • CSA certification per UL and CSA standard/CE/RoHS/ATEX/SIL 3



Description

DCL H type control circuit and 3 phase AC motor with fire treat is specially designed for explosion proof actuator that can powered by 380VAC/440VAC, 50Hz/60Hz commonly used in heavy industry, such as power plant and steel plant. Similar to single phase powered actuator, on receipt of a continuous voltage signal, the 3 phase motor with lower power runs and via a rugged all metal gear drive rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches and output a full open dry contact signal. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.

All connection surfaces between enclosures are designed per ATEX and UL standard and precisely machined & tested before assembling to ensure explosion proof grade. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive.



Specification:

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-Ex05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 3.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex10 30S/100Nm 15S/50Nm 60S/100Nm 0~90°Adjustable 5.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 5.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex40 30S/400Nm 15S/200Nm 60S/400Nm 0~90°Adjustable 9.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex60 45S/600Nm   0~90°Adjustable 10Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
Actuator Type Butterfly Valve(PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-Ex05 DN50~65 DN40 DN50~80
DCL-Ex10 DN80~100 DN50~65 DN100~200
DCL-Ex20 DN125~150 DN80~100 DN250~300
DCL-Ex40 DN200 DN125 DN350~450
DCL-Ex60 DN250 DN150 DN500~600
