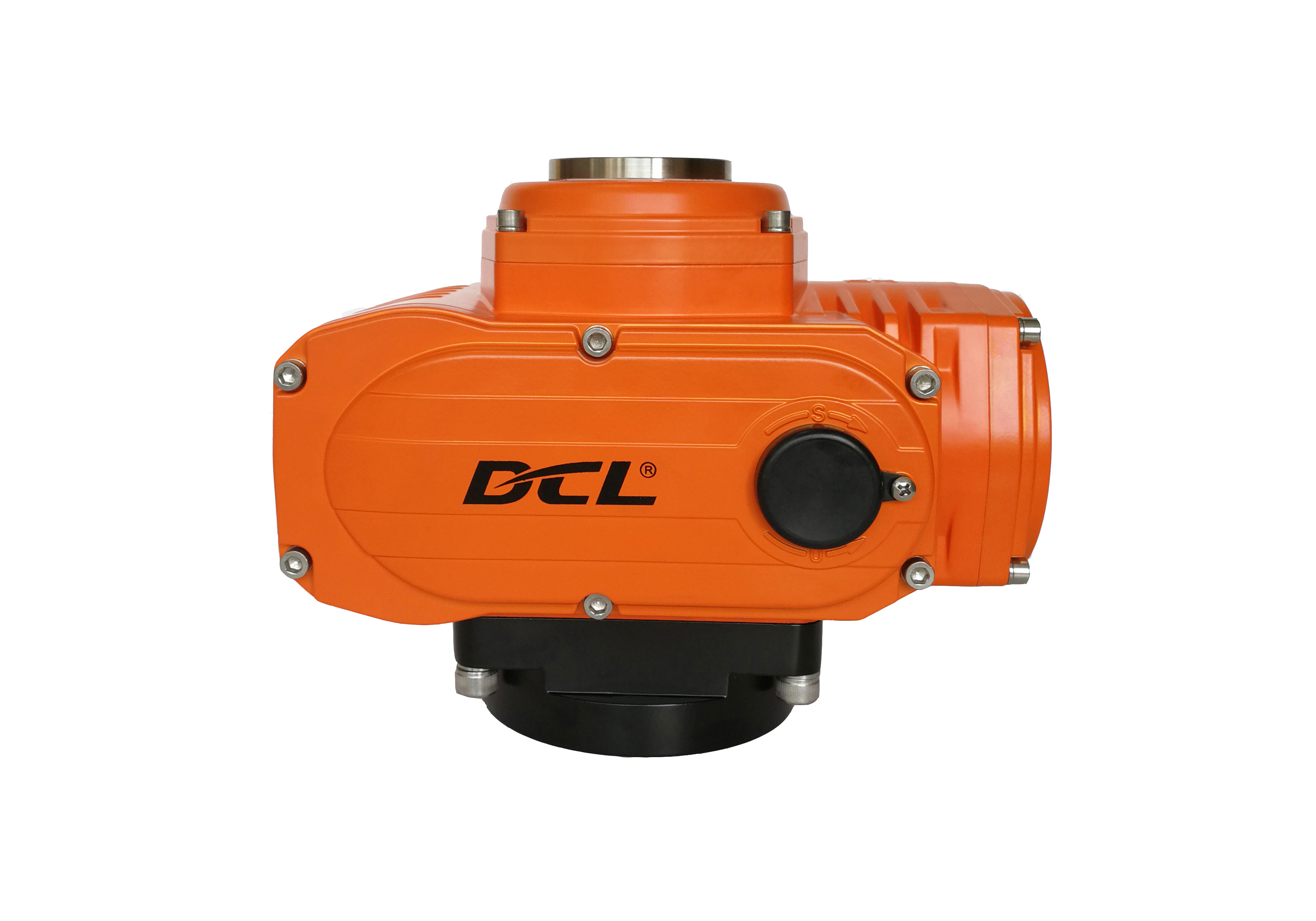

Quarter Turn DCL-Ex10 CSA Explosion Proof Electric Actuator

  • Quarter Turn DCL-Ex10 CSA Explosion Proof Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP68/IECEx/ATEX/UL
Model Number DCL-Ex10/Ex20/Ex40/Ex60
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Torque 100Nm To 600Nm Standard Time 30s To 45s
Total Weight 5kg To 10kg Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC
Motor Power 15W To 90W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Installation Angle 360° Sealing Grade IP68 NEMA4X
High Light

NEMA4X explosion proof actuator

,

DCL anti explosion electric actuator

,

CSA Explosion Proof Electric Actuator
Leave a Message
Product Description



DCL-Ex10 Ex20 dimension and parameters.pdf



Over torque protection small packaged explosion proof electric actuator



Features

  • Quarter turn operation with mechanical limits
  • Heavy duty motor with thermal overload protection
  • Rugged IP68/NEMA 4X aluminum alloy housing with powder coating
  • Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
  • Over torque protection is available
  • Anti-condensation heater is optional
  • Standard ISO5211 direct installation
  • Manual override with Allen wrench or handwheel
  • CSA certification



Description

DCL explosion proof electric actuator can add over torque protection function inside cavity. Disc spring made in Germany with very long life span and very small deformation with frequently presses, are used to keep the over torque value set to be stable and no drift after long time operation.

Actuator can be used for over 90% explosive gas environment except for colliery. Motors and electronics are fire treated. The machining precise of the connection surface are strictly controlled and inspected from supplier to ensure the flameproof gap is small enough to block spark inside actuator. Aluminum housing is hard die casted with larger tonnage than common series electric actuator to be more dense and can suffer much larger explosive pressure.

CSA tests per UL and CSA standard, both for Zone system and Division system. CSA certification is obtained in 2022.



Specification:



Type Ex05E Ex10E Ex20E Ex40E Ex60E
Power AC110V/AC220V
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm
Acting Time 20S 30S 30S 30S 45S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W
Rated Current 0.24/0.15A 0.57/0.30A 0.63/0.35A 1.12/0.64A 1.18/0.67A
Total Weight 3.0kg 5.0kg 5.5kg 9.5kg 10.0kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance 100MΩ/500VDC
Withstand Voltage Class 1500VAC 1minutes
Protection Class IP68
Explosive-proof grade Exd II CT4Gb
Installation Angle 360°at any angle
Electric Interface

2-M20*1.5 explosion-proof plug,clients should install corresponding explosion-proof cable connector

when using according to the cable selected.
Ambient Temperature -20℃~+60℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch
Remark Any other input or output signal needed, please specified in purchase order.
