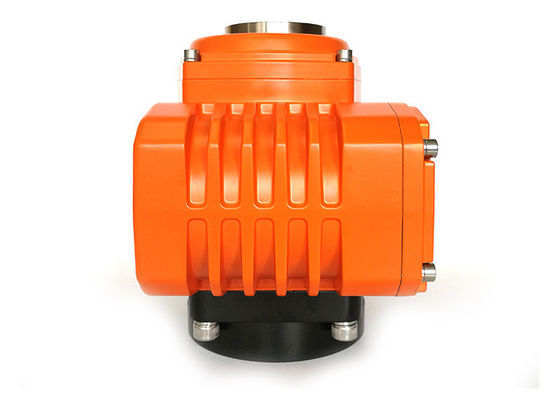

ExdⅡC T4 Compact IP68 Explosion Proof Electric Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP68/IECEx/ATEX/UL
Model Number DCL-Ex10/Ex20/Ex40/Ex60
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Torque 20Nm To 600Nm Standard Time 30s To 45s
Total Weight 5kg To 10kg Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC
Motor Power 15W To 90W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Installation Angle 360° Protection Grade IP68 NEMA4X
High Light

ExdIIBT4 explosion proof valve actuator

,

IP68 Explosion Proof Electric Actuator

,

600Nm explosion proof valve actuator

Leave a Message
Product Description



DCL-Ex10 Ex20 dimension and parameters.pdf



ExdⅡC T4 grade compact explosion proof electric actuator / quarter turn / IP68



Features

  • Quarter turn operation with mechanical limits
  • Cylinder stop type connection surfaces of every housing cover, flame proof gap and length complied to UL and CSA standard
  • Class 1 Zone 1 AExdIICT4 grade and Class 1 Division 1, Group C, D T4.
  • Double lip skeleton oil seal and O-ring seal to ensure protection grade to IP68.
  • 10mm high strength glass lens for valve position indicator, keep strong hardness both in low temperature(-22F) and high temperature(140F).
  • Hard die cast aluminum alloy enclosure to ensure actuator's resistance of high explosion pressure(>2.2 MPa).
  • Non-ventilated motor with fire treatment.
  • Duty rate is 70%, S2 short time duty with continuous operation less than 15mins and S4 intermittent type operation with 1200times/hour.
  • ISO5211 multi flange mounting.
  • CSA certification per UL standard/ATEX marked



Description

DCL explosion proof electric actuators are widely used in potential environment of flammable and explosive, such as petroleum, chemical, power plant, liquid gas, winery and metallurgy etc. To ensure workers are away from danger, explosion proof is a must. For different industries, zones and divisions, different explosion proof grade is required.

Actuators with ExdIICT4 and Group C, D T4 grade can be used in 90% explosive gas atmospheres except for colliery. The maximum surface temperature of actuator is less than 135℃ and 300.6F during severe duty applications. Over 10 years of safety operations in China, now all series anti explosion actuators have passed rigorous test process of CSA and been certified in 2022.



Specification:




Type
DCL-Ex10
  DC24V AC24V AC110V AC380V AC220V
Motor Power 25W 25W 25W 15W 25W
Rated Current 2.20A 2.12A 0.57A 0.10A 0.30A
Standard Time/Torque 30S/100Nm
Optional Time/Torque 15S/50Nm 15S/50Nm 60S/100Nm
Turning Angle 0900 Adjustable
Available Control Circuit Type of A,B,C,D,E,F,G,H,
Total Weight 5kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC
Withstand Voltage Class DC24V/AC24V: 500VAC 1 minute,AC110V/AC220V: 1500VAC 1 minute,AC380V: 1800VAC 1 minute
Protection Class IP68
Expiosive-proof grade ExⅡCT4Gb
Installation Angle 3600 at any angle
Electric Interface 2-M20×1.5explosion-proof plug,clients should install corresponding explosion-proof cable connector when using according to the cable selected.
Ambient Temperature -20+60
Optional Function Over-torque Protector/Heater

 ExdⅡC T4 Compact IP68 Explosion Proof Electric Actuator 0ExdⅡC T4 Compact IP68 Explosion Proof Electric Actuator 1
