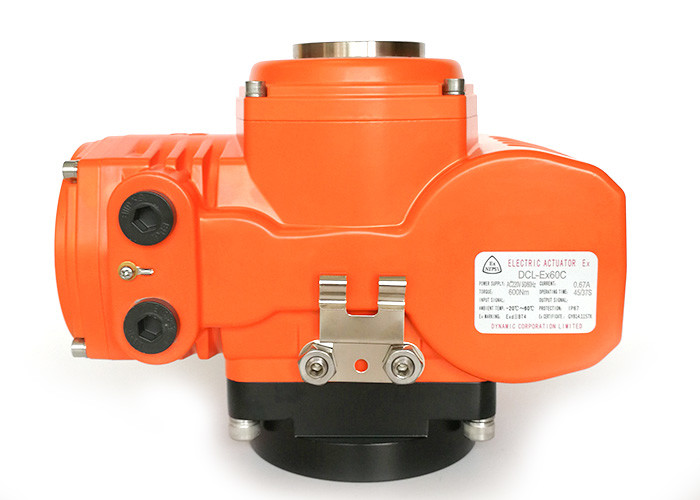

600Nm 90W Explosion proof valve actuator IP68

  • 600Nm 90W Explosion proof valve actuator IP68
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP68/ATEX/IECEx/UL
Model Number DCL-Ex60

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power DC24V/AC110V/AC380V/AC220V Standard Time/Torque 45S/600Nm
Type On-off, Modulating Protection Class IP67
Ambient Temperature -20℃~+60℃ Motor Power 40W/70W/90W
Medium Gas/Oil/Water/Other Material Of Seal Surface Soft Sealed
Rated Current 0.29A~8.0A Connection Form Flange
Leave a Message
Product Description

1. Description

DCL explosion proof electric actuators are widely used in potential environment of flammable and explosive, such as petroleum, chemical, power plant, liquid gas, winery and metallurgy etc. To ensure workers are away from danger, explosion proof is a must. For different industries, zones and divisions, different explosion proof grade is required.

Actuators with ExdIICT4 and Group C, D T4 grade can be used in 90% explosive gas atmospheres except for colliery. The maximum surface temperature of actuator is less than 135℃ and 300.6F during severe duty applications. Over 10 years of safety operations in China, now all series anti explosion actuators have passed test process of CSA and been certified in 2022.


2. Specification

Type DCL-Ex60
  DC24V AC110V AC380V AC220V
Motor Power 70W 90W 40W 90W
Rated Current 8.00A 1.18A 0.29A 0.67A
Standard Time/Torque 45S/600Nm
Optional Time/Torque ----------------------------------- -----------
Turning Angle 0～90° Adjustable
Available Control Circuit Type of A,B,C,D,E,F,G,H,
Total Weight 10kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC
Withstand Voltage Class DC24V: 500VAC 1 minute,AC110V/AC220V: 1500VAC 1 minute,AC380V: 1800VAC 1 minute
Protection Class IP67
Expiosive-proof grade ExⅡCT4Gb
Installation Angle 360° at any angle
Electric Interface 2-M20×1.5explosion-proof plug,clients should install corresponding explosion-proof cable connector when using according to the cable selected.
Ambient Temperature -20～+60℃
Optional Function Over-torque Protector/Heater





3. Features

  • Quarter turn operation with mechanical limits
  • Cylinder stop type connection surfaces of every housing cover, flame proof gap and length complied to UL and CSA standard
  • Class 1 Zone 1 AExdIICT4 grade and Class 1 Division 1, Group C, D T4.
  • Double lip skeleton oil seal and O-ring seal to ensure protection grade to IP68.
  • 10mm high strength glass lens for valve position indicator, keep strong hardness both in low temperature(-22F) and high temperature(140F).
  • Hard die cast aluminum alloy enclosure to ensure actuator's resistance of high explosion pressure(＞2.2 MPa).
  • Non-ventilated motor with fire treatment.
  • Duty rate is 70%, S2 short time duty with continuous operation less than 15mins and S4 intermittent type operation with 1200times/hour.
  • ISO5211 multi flange mounting.
  • CSA certification per UL standard/ATEX marked
