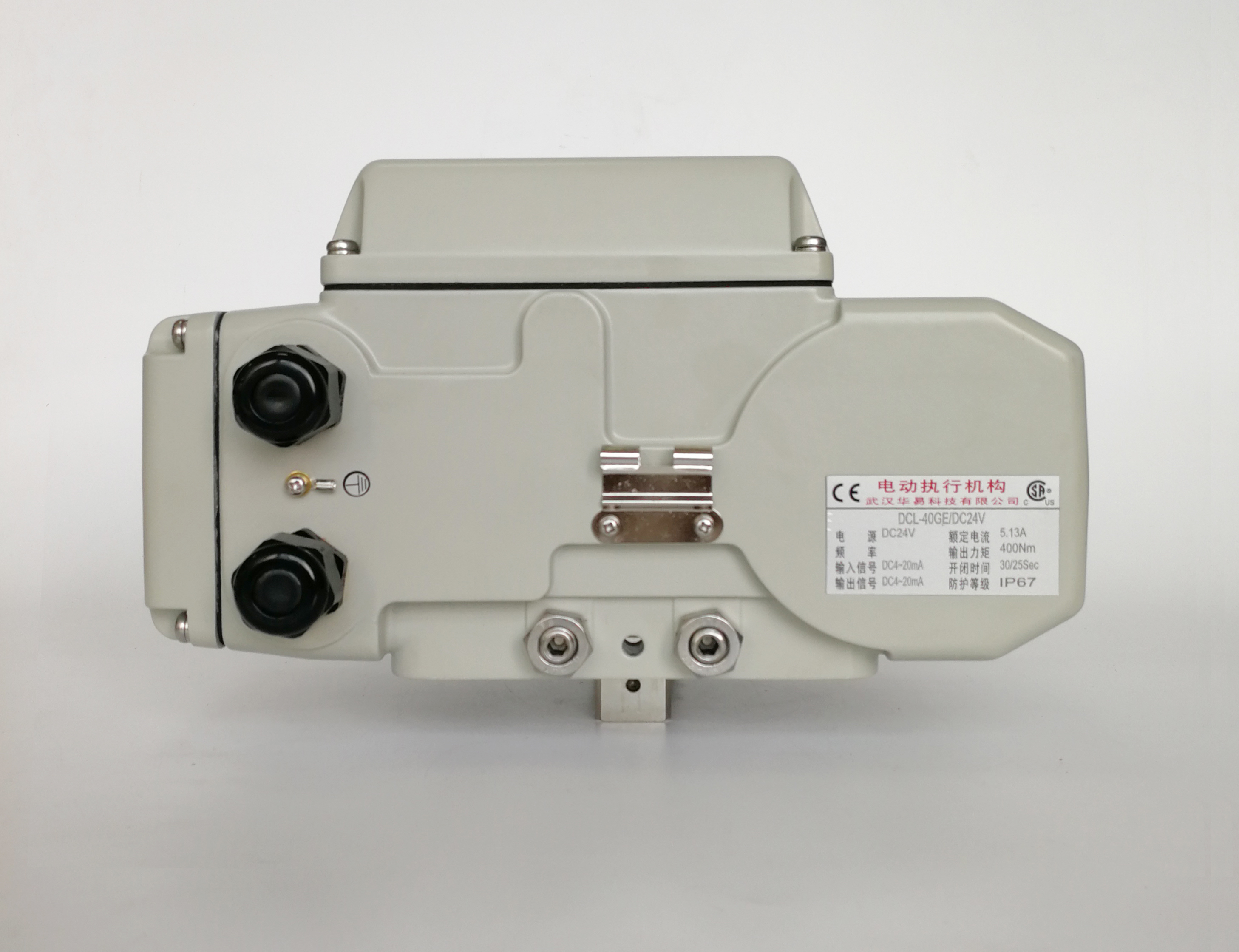

100Nm Adjustable 360° 4~20mA IP67 24V DC Motorized Rotary Actuator

  • 100Nm Adjustable 360° 4~20mA IP67 24V DC Motorized Rotary Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-10GE/40GE
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P,T/T,Western Union,MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name DC Motorized Rotary Actuator Feature Thermal Overload Protection
Power Supply 24VDC Installation Angle 360°
Motor Power 30W/70W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Type Quarter Turn Actuator Waterproof Weatherproof IP67 Electric Actuator
Highlight

100Nm DC rotary actuator

,

360° adjustable motorized actuator

,

IP67 waterproof rotary actuator
Leave a Message
Product Description

DC motorized rotary actuator with F-class insulation rate motor / thermal overload protection


Description

All DCL electric actuators are equipped with specially formulated copper alloy worm gears. Unlike conventional gears that only feature a surface copper plating, DCL’s worm gears are one-piece castings crafted entirely from bronze alloy—this integrated design substantially boosts overall structural strength and wear resistance.
In electric actuators, the final-stage worm or spur gear is typically the most vulnerable component. Directly connected to the output shaft, it bears the maximum torque and friction, meaning its durability directly dictates the actuator’s service life. To address this critical point, DCL has engineered a larger-diameter worm gear with an extended radius. This design effectively reduces the force exerted on each gear tooth under the same torque load, and when combined with the full-bronze alloy construction, it delivers exceptional reliability and prolonged service life.
Additionally, gear runout has a significant impact on both transmission noise and mechanical lifespan. DCL’s dedicated Supplier Quality Engineering (SQE) team implements rigorous incoming quality control for all components. Every housing cover, bearing, gear, and electronic part undergoes thorough inspection prior to warehousing, ensuring consistent performance and long-term durability across the entire range of DCL electric actuators.

Specification:

Performance Parameters


Type DCL-10GE DCL-40GE
　 DC24V±10% DC24V±10%
Motor Power 30W 70W
Max Current 3.3A 1.8A 8.9A 6.6A
Action Time 15S 30S 15S 30S
Output Torque 0～100Nm Optional 100～400Nm Optional 100～600Nm Optional
Total Weight 4.5kg 9.5kg
Input Signal 4～20mADC
Output Signal 4～20mADC
Basic Error no more than ±1%
Reciprocating Error No more than 1%
Dead Space 0.5~5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Turning Angle 0～900 Adjustable
Insulating Resistance 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minutes
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -25～+55℃
Optional Function Heater/Passive contact switch/Dome indicator



Features

  • Quarter turn operation modulated by 24VDC power
  • Torque can be precisely setting within a certain range
  • Multi input signal switchable in one smart control pack
  • Auto-calibrating with continuously output position monitoring signal as standard
  • Heavy duty DC brushless motor low temperature rising, longer life, provide high start torque and very small inertia force
  • Torque test control and over torque protection by current
  • Weatherproof IP 67 robust aluminum alloy enclosure, protection against dust and water
  • All metal gears with self-locking worm gear
  • ISO5211 direct installation
  • UL standard/CSA listed/CE marked/RoHS 3 complied
