NEMA 7 220VAC 250Nm Explosion Proof Electric Actuator

  • NEMA 7 220VAC 250Nm Explosion Proof Electric Actuator
  • NEMA 7 220VAC 250Nm Explosion Proof Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IECEx/ATEX
Model Number All explosion proof electric actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Torque 50Nm To 600Nm Standard Time 20s To 45s
Sealing Grade IP68/NEMA4X/NEMA 7 Total Weight 3kg To 10kg
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Motor Power 6W To 90W
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC Installation Angle 360°
Highlight

250Nm Explosion Proof Electric Actuator

,

220VAC Explosion Proof Electric Actuator

,

NEMA 7 explosion proof valve actuator
Leave a Message
Product Description

High pressure die cast aluminum housing explosion proof electric actuator / IP68



Features:

  • Turning angle ≤360° adjustable with electric limit switches
  • Explosion proof grade ExdIICT5/T6 for Zone system and Group C, D T5/T6 for Division system
  • Stainless steel visual valve position indicator with 10mm tempered glass lens
  • Hard die cast aluminum alloy enclosure to resistance to high explosive pressure inside
  • Heavy duty fully enclosed squirrel-cage asynchronous motor with fire treatment
  • Manual override with Allen handle/handwheel optional
  • Double lip skeleton oil seal and O-ring seal to ensure protection grade to IP68
  • Standard ISO 5211 direct mounting



Description

DCL anti-explosion electric actuators’ enclosure are special casted by larger tonnage die casting machine than common series actuator, to ensure even very small stomas are not existed. The shell thickness is thicker than common shell to suffer gas explosion inside actuator. The quality of cylinder stop surface is the key part to guarantee explosion proof. Scratches, mistake tolerances, shorter stop length, rust points and cracks are all definitely not allowed on this surface. Thus all shells are 100% checked by DCL after shipping from suppliers.

Actuator are officially tested by CSA to meet ATEX, UL and CSA standard and can be used in different regions all around the world, including Europe, north America and any other places.



Specification:



Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-Ex05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 3.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex10 30S/100Nm 15S/50Nm 60S/100Nm 0~90°Adjustable 5.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 5.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex40 30S/400Nm 15S/200Nm 60S/400Nm 0~90°Adjustable 9.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex60 45S/600Nm   0~90°Adjustable 10Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-Ex05 DN50~65 DN40 DN50~80
DCL-Ex10 DN80~100 DN50~65 DN100~200
DCL-Ex20 DN125~150 DN80~100 DN250~300
DCL-Ex40 DN200 DN125 DN350~450
DCL-Ex60 DN250 DN150 DN500~600

Electromagnetic Exd II BT4Gb 400Nm Explosion Proof Valve Actuator

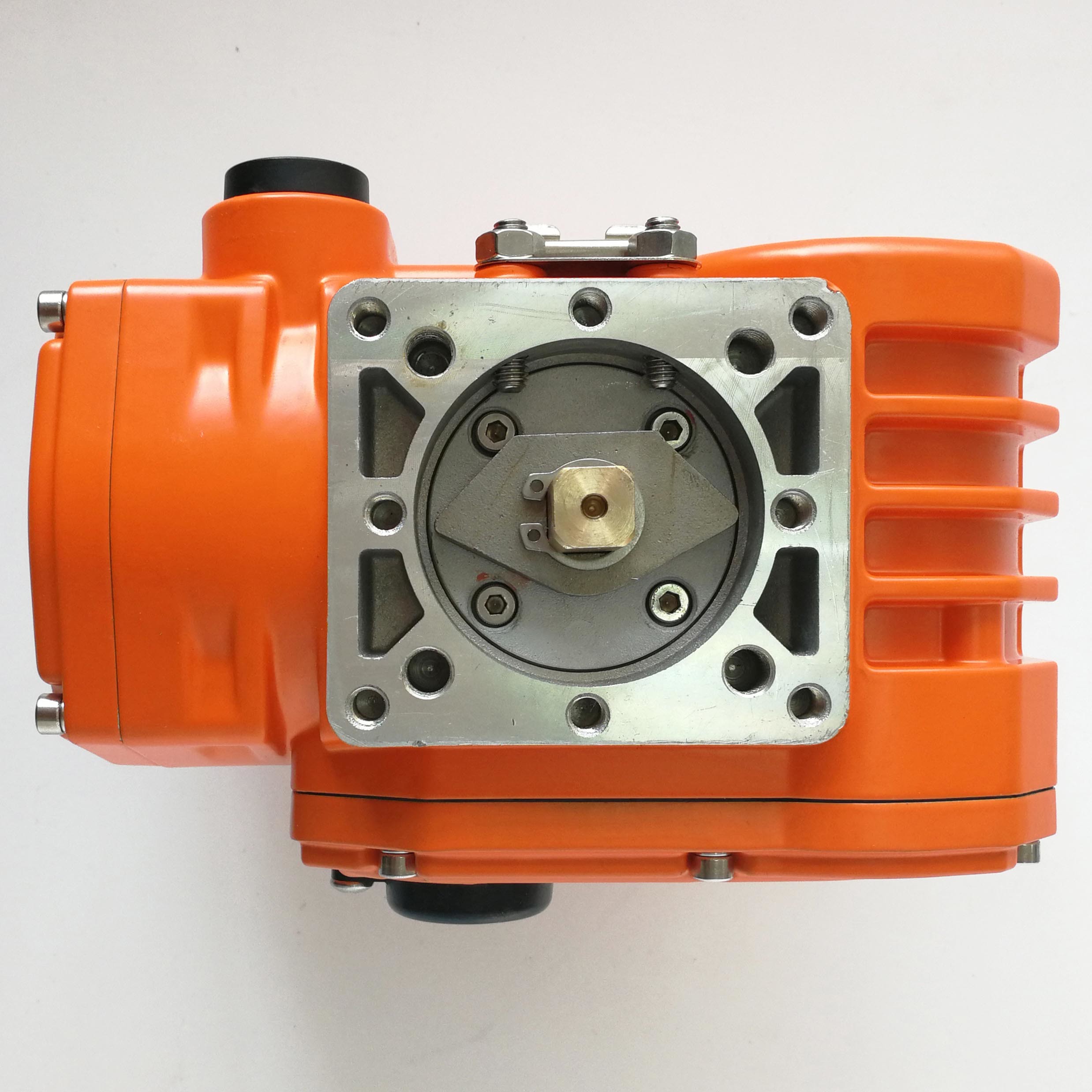

NEMA 7 220VAC 250Nm Explosion Proof Electric Actuator 1
