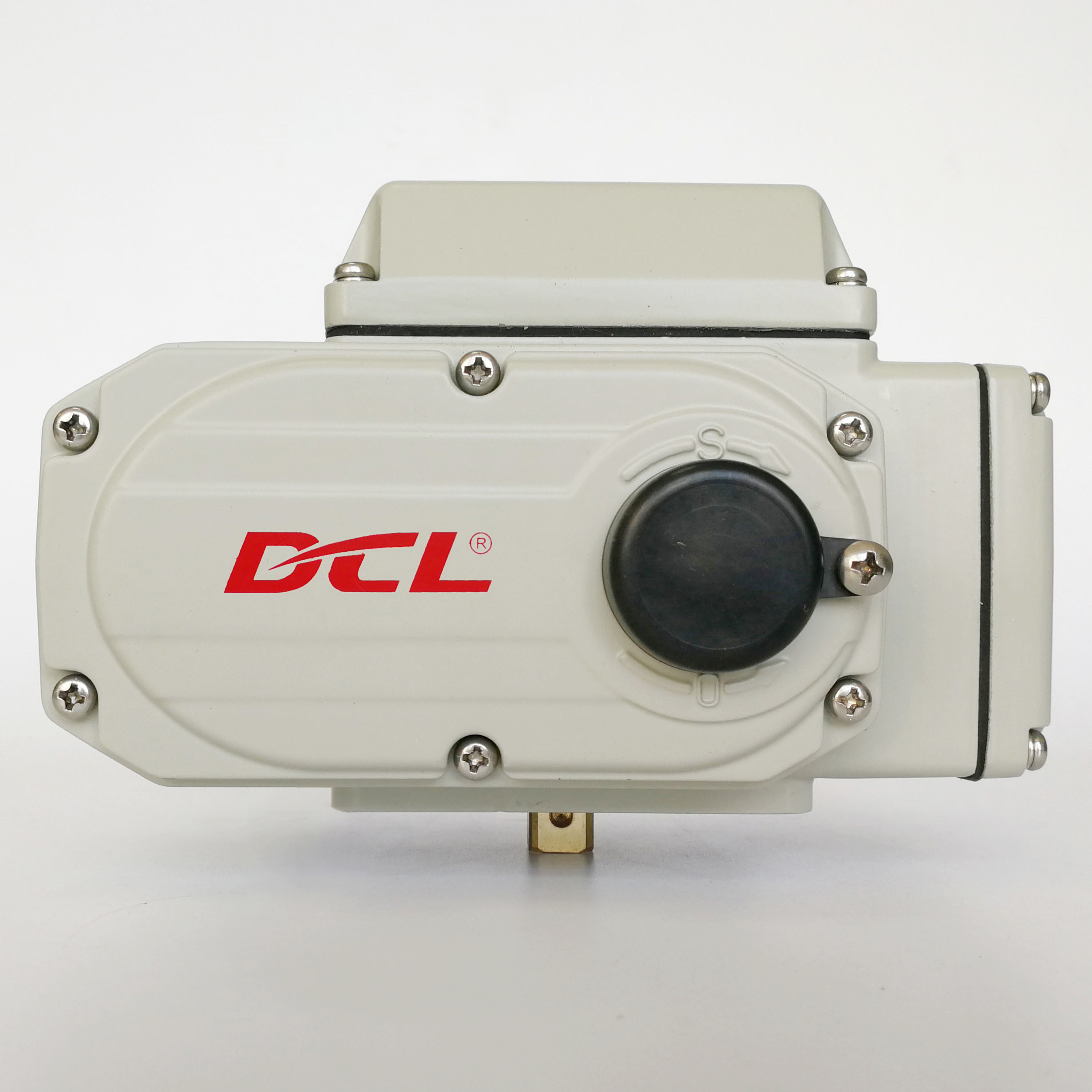

Waterproof 24VDC 70W Motorized Valve Actuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | DC Motorized Rotary Actuator | Action Time | 15S/30S |
---|---|---|---|
Type | Smart Electric Actuator | Power Supply | 24VDC |
Installation Angle | 360° | Motor Power | 30W/70W |
Total Weight | 4.5KG/9.5KG | Protection Grade | IP67 Waterproof |
High Light | 70W motorized valve actuator,Rotary valve Actuator |
DC Motorized rotary actuator with damping character is zero time / start-up current reduced
Features
- Torque can be precisely setting within a certain range
- Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
- Torque test control and over torque protection by current
- Two more limit switches to confirm valve position
- World-leading EMC, 100% passed EFT, ESD and Surge tests
- Stable operation on extra high/low temperature with high humidity
- Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
- All metal gears with self-locking worm gear
- Manual override with Allen wrench or handwheel
- ISO5211 direct installation
- UL standard/CSA listed/CE marked/RoHS 3 complied
Specification:
Name: | DC Motorized Rotary Actuator |
Output Torque: | 0~400Nm |
Output Signal: | 4-20mADC |
Power Supply: | 24VDC |
Motor Power: | 30W/70W |
Ambient Temperature: | -25℃~+55℃ / -13°F~+131°F |
Action Time: | 15S/30S |
Input Signal: | 4-20mADC |
Type: | Smart Electric Actuator |
Installation Angle: | 360° |
Total Weight: | 4.5KG/9.5KG |
Protection Grade: | IP67 NEMA4/4X |
Description
DCL smart electric actuator’s dead space is adjustable. Dead space determines the actuator’s sensitivity to input signal. Smaller dead space means more sensitive. But more sensitive does not always mean better. Actually, if input signal is susceptible to external interference, a larger dead space can avoid frequently error starts of actuator and extend its life cycle and stability. On the other hand, if input signal is pure and accuracy control is also required, then a smaller dead space is better.
Another fact to influence valve positioning accuracy is the gap between gears, especially the machining accuracy of the worm gears. Our SQE uses professional testing equipment to detect and ensure every gear’s quality from supplier. Moreover, many special designs and assembling process controls are insisted to make sure no oscillation of gears and low noise with different loads. DCL set the benchmark of compact electric actuator industry of China.
Performance Parameters | ||||
Type | DCL-10GE | DCL-40GE | ||
DC24V±10% | DC24V±10% | |||
Motor Power | 30W | 70W | ||
Max Current | 3.3A | 1.8A | 8.9A | 6.6A |
Action Time | 15S | 30S | 15S | 30S |
Output Torque | 0~100Nm Optional | 100~400Nm Optional | 100~600Nm Optional | |
Total Weight | 4.5kg | 9.5kg | ||
Input Signal | 4~20mADC | |||
Output Signal | 4~20mADC | |||
Basic Error | no more than ±1% | |||
Reciprocating Error | No more than 1% | |||
Dead Space | 0.5~5.0% adjustable | |||
Damping Characteristic | 0 times | |||
Repeating Error in Actuator | ≤1% | |||
Turning Angle | 0~900 Adjustable | |||
Insulating Resistance | 100MΩ/250VDC | |||
Withstand Voltage Class | 500VAC 1 minutes | |||
Protection Class | IP67 | |||
Installation Angle | 3600 at any angle | |||
Electric Interface | Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line | |||
Ambient Temperature | -25~+55℃ | |||
Optional Function | Heater/Passive contact switch/Dome indicator |
