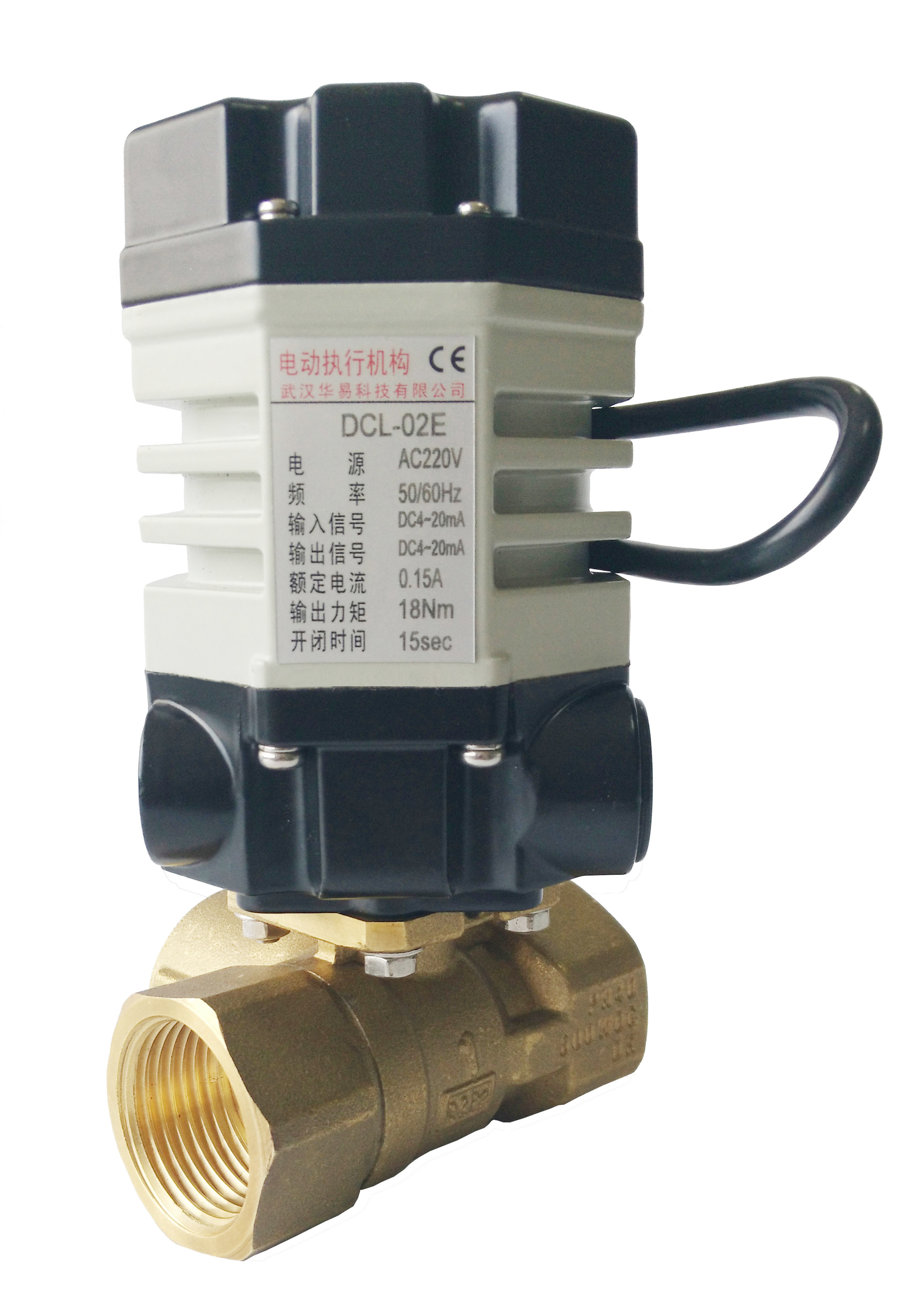

1200 Times / Hour 15S 18Nm DC Rotary Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-02G
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name DC Rotary Actuator Standard Time/Torque 15S/18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm Total Weight 1.2KG
Type S4 Intermittent Duty Rate Feature 1200 Times / Hour Operation
High Light

18Nm DC Rotary Actuator


CE Rotary valve Actuator

Leave a Message
Product Description

S4 intermittent duty rate DC rotary actuator with 1200times/hour operation




DCL-02 type electric actuators are the smallest aluminum alloy housing actuators which can be proportional driven by current or voltage signal. Mini control board are self-designed for the body with self-calibrating and problem self-checking functions. The patented hollow shaft design makes the actuator very compact, but can output super torque. Two stage spur gears and double worm gear ensure the end gear will not become abrasion when frequently open and close. Actuator can be used to automate not only ball valve, but also butterfly valve with self-locking gear train.

Actuators are rigorous tested and certified by CSA per UL and CSA standard. Tested by SGS per CE and RoHS 3 requirements.




Performance Parameters
Type DCL-02 DCL-MZZ(Multiple turns)
Power DC24V AC24V AC110V AC220V DC24V
Motor Power 8W 6W 6W 6W 20W
Rated Current 0.7A 1.3A 0.3A 0.15A 1.1A
Standard Time/Torque 15S/18Nm 18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm
Turning Angle or turns 0900 3r/min
Available Control Circuit Type G Type of A,B Type of A,B ,E ,
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute 500VAC 1minute
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25+55
Fuse 2A 3A 1A 1A 2A




  • 1/4 turn operation with mechanical limits
  • Torque can be precisely setting within a certain range
  • Heavy duty DC brush motor with lower temperature rise, longer life, provide high start torque and very small inertia force
  • All bronze alloy worm sector gear is very durable and resistance to high force friction
  • Two electric limit switches to confirm valve position, no additional brake required
  • Corrosion protection robust aluminum alloy with thermally bonded polyester coating
  • Torque test control and over torque protection by current
  • Over 10000 time full open and close life cycles with full rated load with duty rate 80%
  • Self-locking when power off
  • Strong gear train with soft nitriding metal gears
  • Standard ISO5211 multi-flange installation
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested
