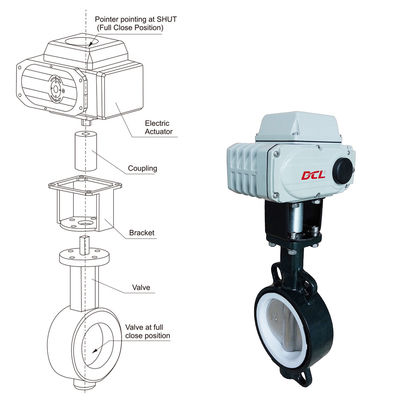

Compact 24VDC 100Nm PVC Butterfly Valve Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-G Series
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name DC Rotary Actuator Standard Time 20s To 45s
Input Signal 4-20mA Or 2-10V Operation Quarter Turn Operation
Design Compact Actuator Power Supply 24VDC / 12VDC Optional
Installation Angle 360° Protection Grade IP67 NEMA4/4X
High Light

PVC butterfly valve actuator

,

100Nm DC rotary actuator

Leave a Message
Product Description

Dead - beat DC rotary actuator when position fixed / 4-20mA or 2-10V input signal



Description



DCL compact electric actuators are most commonly used in HVAC field with butterfly valve. In many building automation systems, electric actuators are widely used to control indoor temperature, air conditioner air volume, water flow, condensate flow and hydraulic balance etc.

DCL use heavy duty motor with 80% duty rate that can do more frequently control to make temperature more accuracy. Very long operation life makes after sell maintenance become easy and cost saving. Also, it can be installed indoor or outdoor with resistance to severe environment. Dehumidify heater is optional to help protect actuator against damage caused by condensation. All HVAC used electric actuator are tested to rigorous UL and CSA standards and certified by CSA and CE & RoHS tested by SGS.





Specification:


Name: DC Rotary Actuator
Standard Time: 20s To 45s
Operation: Quarter Turn Operation
Power Supply: 24VDC / 12VDC Optional
Motor Power: 13W To 70W
Installation Angle: 360°
Standard Torque: 50Nm To 600Nm
Input Signal: 4-20mA Or 2-10V
Design: Compact Actuator
Total Weight: 1.2KG To 10KG
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Protection Grade: IP67 NEMA4/4X
Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm   10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm   19.5Kg
DCL-250 75S/2500Nm   20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm   3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg



Features

  • Quarter turn operation with compact design
  • ISO 5211 multi flange mounting well coupled to soft seal, metal seal, PVC butterfly valve
  • Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
  • Self-locking worm gear drive prevents back driving to keep no leak of valve
  • Handle or handwheel for manual operation
  • Visual position indicator for butterfly valve turning angle
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested



Weather Proof 360° CSA Quarter Turn Electric Actuator
