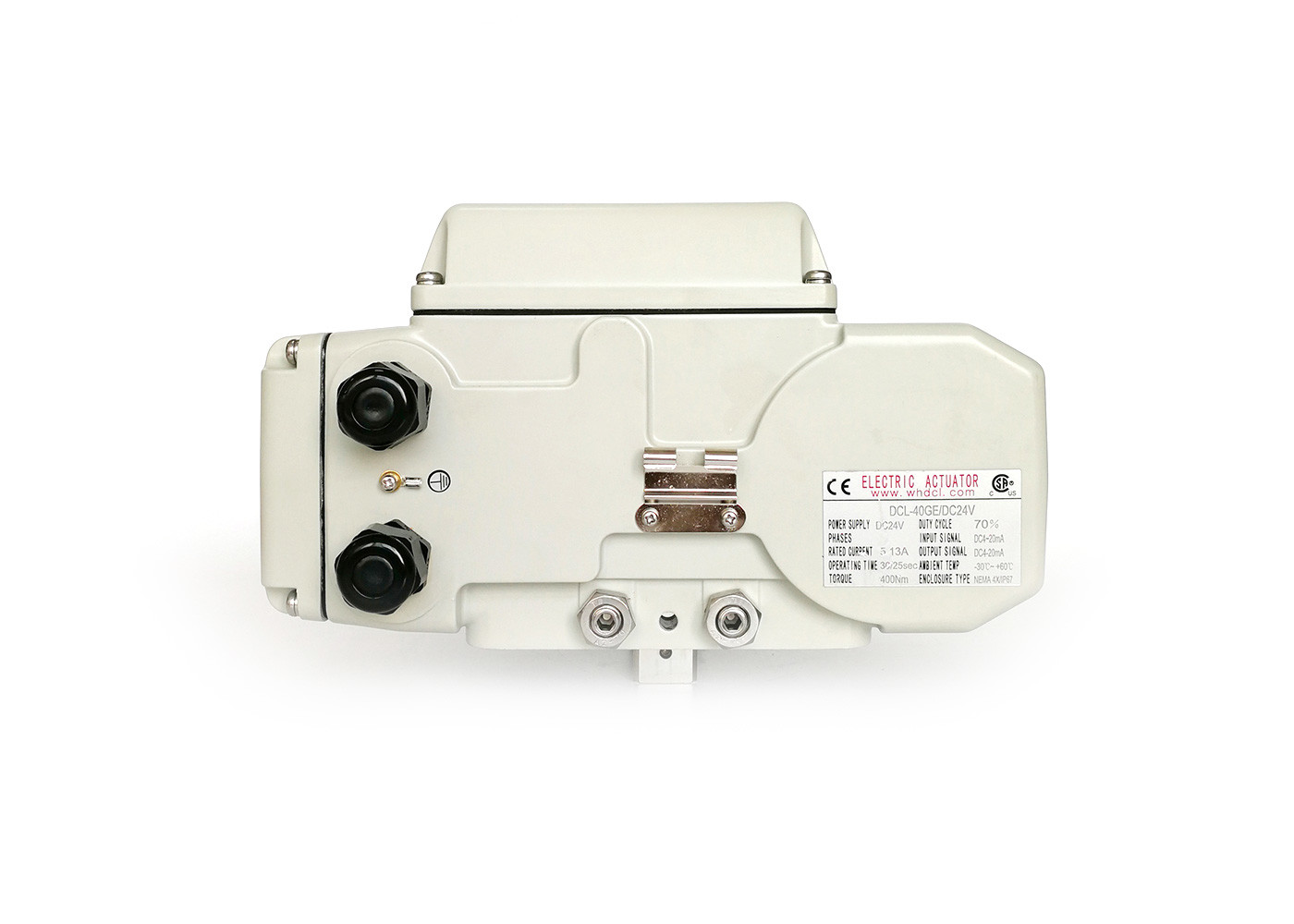

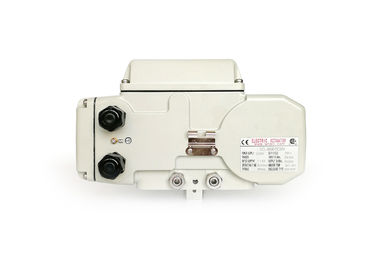

Anti Condensation 24VDC Quarter Turn Electric Actuator

  • Anti Condensation 24VDC Quarter Turn Electric Actuator
  • Anti Condensation 24VDC Quarter Turn Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-10GE/40GE
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Action Time 15S/30S Output Torque 0~400Nm
Input Signal 4-20mADC Output Signal 4-20mADC
Power Supply 24VDC Installation Angle 360°
Motor Power 30W/70W Total Weight 4.5KG/9.5KG
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
High Light

24VDC Quarter turn actuator

,

400Nm DC rotary actuator
Leave a Message
Product Description

PTC electronic heating component added anti-condensation DC rotary electric actuator



Features

  • Quarter turn operation modulated by 24VDC power
  • PTC electronic heating component to prevent condensation in actuator
  • One-way breathing apparatus is optional
  • Heavy duty DC brushless motor with low temperature rise during production
  • Compact smart resin plastic packaged drive controller
  • Stable operation on extra high/low temperature with high humidity
  • Weatherproof IP 67 robust aluminum alloy enclosure with powder coated
  • Self-locking worm gear train, no additional brake needed
  • UL standard/CSA listed/CE marked/RoHS 3 complied



Description

DCL series anti-condensation electric actuator are widely used in high temperature and humidity environment. Sometimes, opening cover to do wiring and adjustment is unavoidable for customer. Thermostatically controlled heater is necessary for humid environment with big day/night temperature difference.

Patented one-way breathing apparatus can avoid repeated condensation after heater powered off, since it only allows water molecules go from inside to outside of actuator while reverse movement is not possible. Thus, actuator is perfectly protected from damage of condensation.





Specification

Performance Parameters
Type DCL-10GE DCL-40GE
　 DC24V±10% DC24V±10%
Motor Power 30W 70W
Max Current 3.3A 1.8A 8.9A 6.6A
Action Time 15S 30S 15S 30S
Output Torque 0～100Nm Optional 100～400Nm Optional 100～600Nm Optional
Total Weight 4.5kg 9.5kg
Input Signal 4～20mADC
Output Signal 4～20mADC
Basic Error no more than ±1%
Reciprocating Error No more than 1%
Dead Space 0.5~5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Turning Angle 0～900 Adjustable
Insulating Resistance 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minutes
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -25～+55℃
Optional Function Heater/Passive contact switch/Dome indicator
