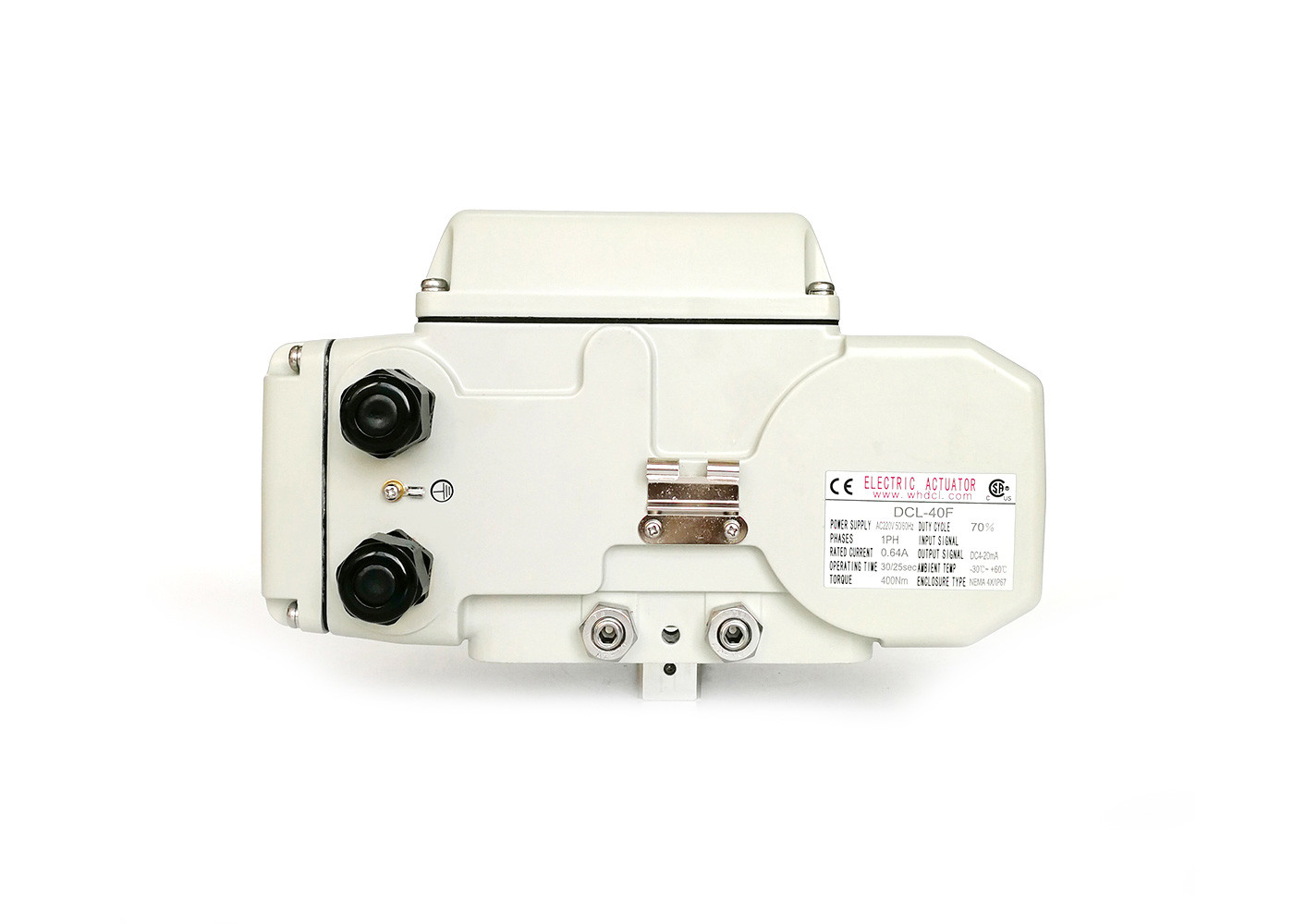

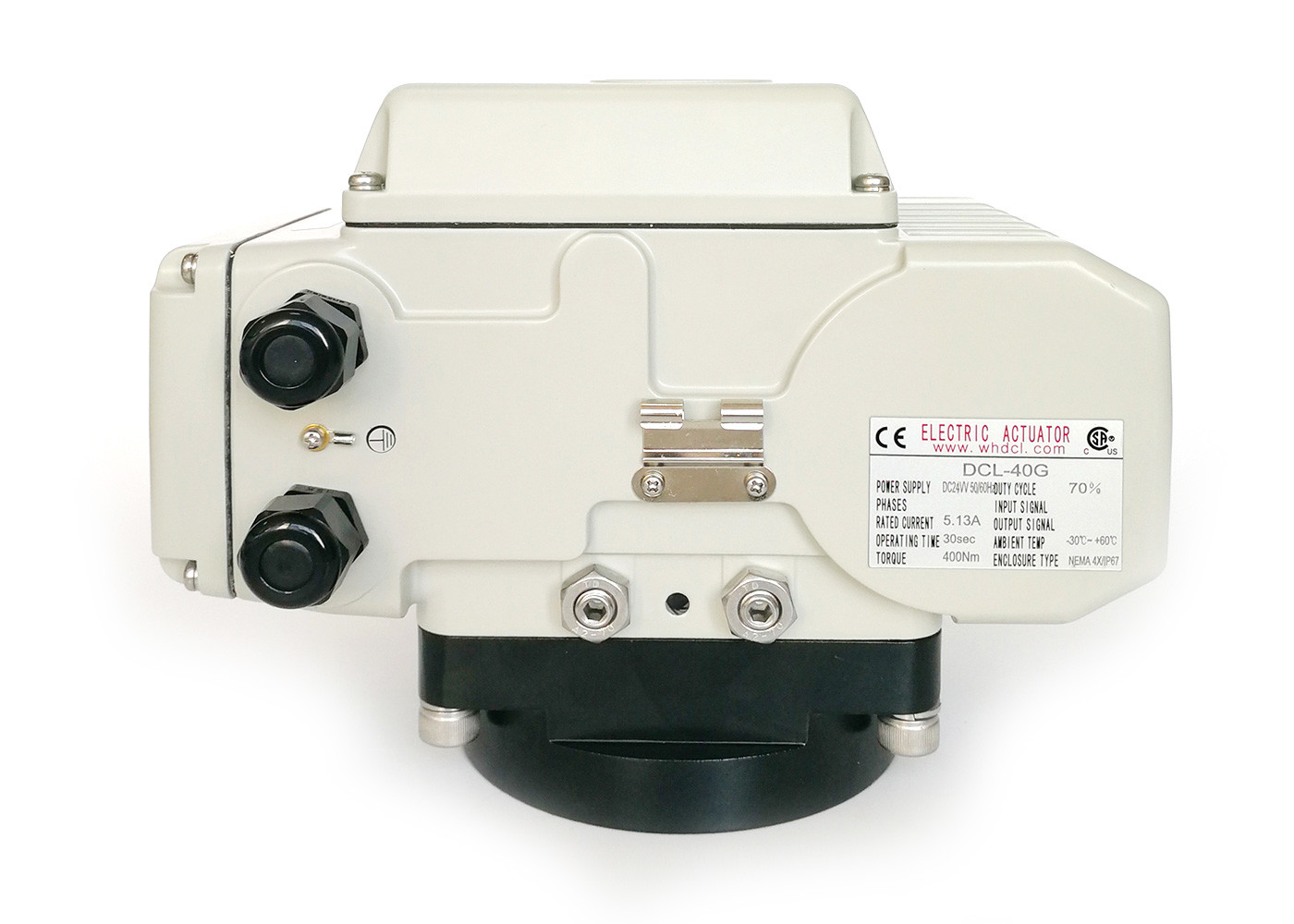

Two Auxiliary Limit Switches 400Nm NEMA4 DC Rotary Actuator
|Action Time||15S/30S||Output Torque||0~400Nm|
|Input Signal||4-20mADC||Output Signal||4-20mADC|
|Power Supply||24VDC||Installation Angle||360°|
|Motor Power||30W/70W||Total Weight||4.5KG/9.5KG|
|Ambient Temperature||-25℃~+55℃ / -13°F~+131°F||Protection Grade||IP67 NEMA4/4X|
NEMA4 DC rotary actuator,
400Nm DC rotary actuator
DC rotary actuator with passive contact switch/two auxiliary limit switches
- Quarter turn operation modulated by 24VDC power
- Torque can be precisely setting within a certain range
- Heavy duty DC brushless motor with low temperature rise during production
- Torque test control and over torque protection by current
- Compact smart resin plastic packaged drive controller
- Stable operation on extra high/low temperature with high humidity
- Weatherproof IP 67 robust aluminum alloy enclosure with powder coated
- All metal gears with self-locking worm gear
- Manual override with Allen wrench or handwheel
- ISO5211 direct installation
- UL standard/CSA listed/CE marked/RoHS 3 complied
DCL electric actuators are compact but rugged to reach military industrial standard. All metal gears, housing and fully enclosed heavy duty squirrel-cage asynchronous induction motor make actuator can frequently run from open to close with super long life with constantly overload vibration. Not like actuators those may use plastic gears or bearings, DCL broad its applications to heavy industry field, even nuclear power plant and warship, where must be used very safely and stably. While also not like actuators with very huge volume or super weight that cost high, these small size actuators are also widely used for civil field with limit installation space and budget.
DCL actuators are rigorous tested and certified by CSA complied to UL and CSA standard. CE marked by SGS.
|Output Torque||0～100Nm Optional||100～400Nm Optional||100～600Nm Optional|
|Basic Error||no more than ±1%|
|Reciprocating Error||No more than 1%|
|Dead Space||0.5~5.0% adjustable|
|Damping Characteristic||0 times|
|Repeating Error in Actuator||≤1%|
|Turning Angle||0～900 Adjustable|
|Withstand Voltage Class||500VAC 1 minutes|
|Installation Angle||3600 at any angle|
|Electric Interface||Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line|
|Optional Function||Heater/Passive contact switch/Dome indicator|
