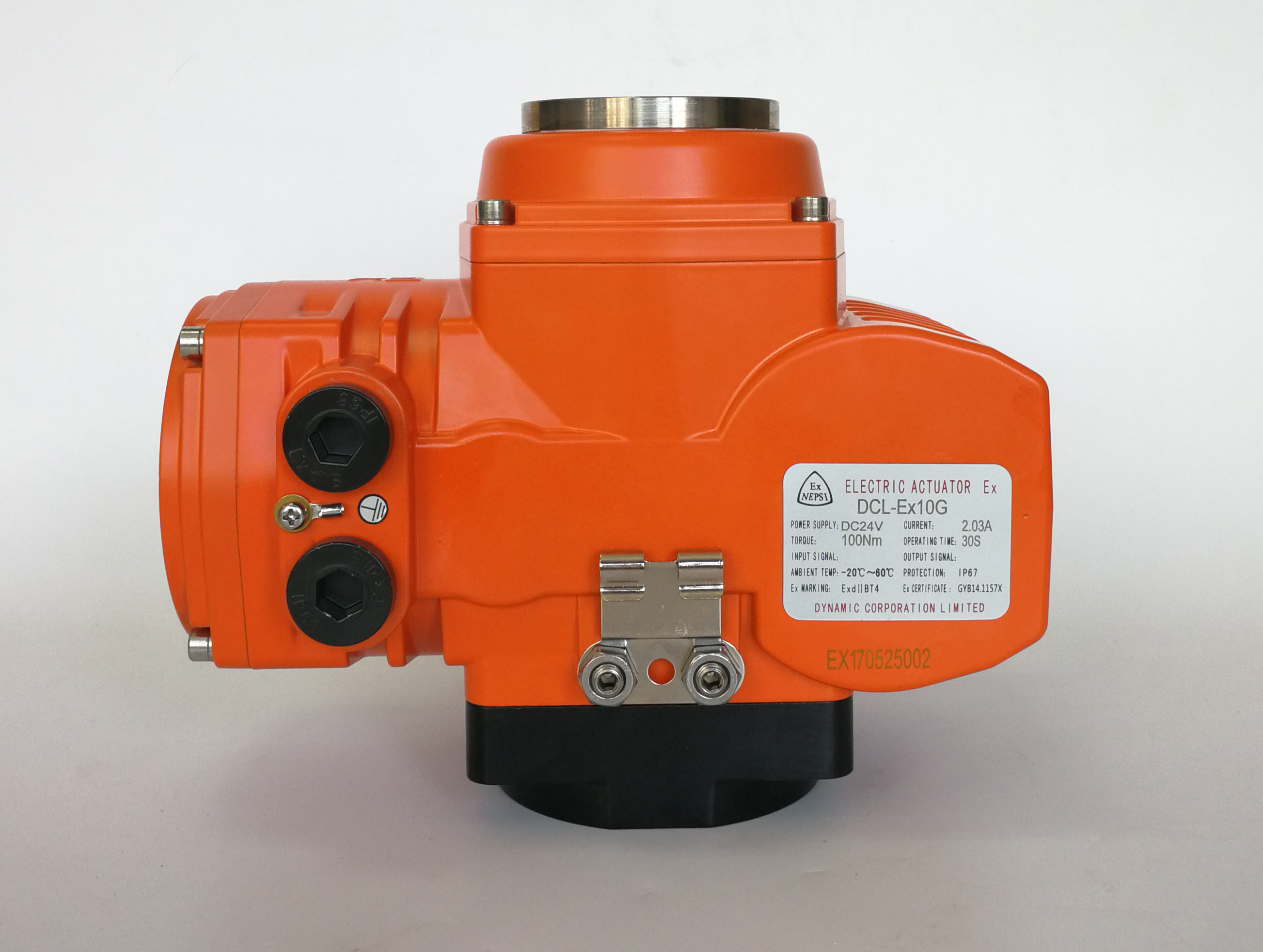

Modulating ExdⅡBT4 24V Explosion Proof Valve Actuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard Torque | 0Nm To 600Nm | Standard Time | 20s To 45s |
|---|---|---|---|
| Input Signal | 4-20mA/2-10V/1-5V | Output Signal | 4-20mA |
| Explosion Proof Grade | ExdIIBT4 / Group C, D T4 | Protection Grade | IP68 NEMA 4X |
| Power Supply | 24VDC | Total Weight | 3kg To 10kg |
| Motor Power | 13W To 70W | Installation Angle | 360° |
| Ambient Temperature | -25℃~+55℃ / -13°F~+131°F | ||
| High Light | 24V Explosion Proof valve actuator,ExdⅡBT4 valve actuator |
||
Product Description
Explosion proof DC rotary electric actuator / ExdⅡB T4 grade for Zone 1 and Division 1
Features
- Modulating type powered by 24VDC, quarter turn operation
- Torque can be precisely setting within a certain range
- Heavy duty DC brush motor with lower temperature rise, longer life, provide high start torque and very small inertia force
- Torque test control and over torque protection by current
- PTC electronic heating component to prevent condensation in actuator
- Compact smart resin plastic packaged proportional control pack installed
- IP 68 watertight robust aluminum alloy enclosure, protection against dust and water
- Self-locking worm gear train, no additional brake needed
- UL standard for Zone and Division System/ATEX/CE marked/RoHS 3 complied
Description
DCL-Ex10GE/Ex40GE are 24VDC power motorized electric actuator. Full enclosed DC brush motor with flameproof surface ensure sparks will not go to another cavity. Fully potted controller to help protect the electronics from vibration and moisture. Cylinder stop type connection surfaces with flame proof gap and length comply to ATEX, UL and CSA standard. Valve position indicator is covered with 10mm tempered glass that can keep strength in extra high and extra low temperature to ensure clear vision even when fire happens. Anti-condensation heater is optional to protect actuator against moist. Enclosures and covers are 100% tested by DCL before acceptable from suppliers to ensure machining precise.
DCL explosion proof electric actuators are widely used for explosive gases environment. High temperature may ignite the flammable gases out of actuator. T4 grade requires the highest enclosure outside surface’s temperature must be less than 135℃(300F), in whatever conditions. Considering a buffer for errors may happen, the temperature set for motor power down is 125℃(282F). PTC overheat protector is embedded in the motor winding-trips, where is the highest temperature rise part of whole actuator, instead of out of motor, to 100% ensure outer surface temperature will not go beyond required T4 grade.
Explosion proof electric actuators are in process of CSA tests and will be certified by CSA in Q3 2020. CE/ATEX/RoHS 3.0 have been tested and complied.
Specification
| Actuator Type | Standard Time/Torque | Optional Time/Torque | Turning Angle(Max.range) | Total Weight | Power Supply | Selected Control Circuit |
| DCL-Ex05 | 20S/50Nm | 4S/20Nm 10S/30Nm 60S/50Nm | 0~360°Adjustable | 3.0Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex10 | 30S/100Nm | 15S/50Nm 60S/100Nm | 0~90°Adjustable | 5.0Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex20 | 30S/200Nm | 15S/100Nm 60S/200Nm | 0~90°Adjustable | 5.5Kg | DC24V/AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex40 | 30S/400Nm | 15S/200Nm 60S/400Nm | 0~90°Adjustable | 9.5Kg | DC24V/AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-Ex60 | 45S/600Nm | 0~90°Adjustable | 10Kg | DC24V/AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| Actuator Type | Butterfly Valve(≤PN1.0MPa) | Ball Valve(≤PN1.6MPa) | Vent Valve(≤PN0.1MPa) |
| DCL-Ex05 | DN50~65 | DN40 | DN50~80 |
| DCL-Ex10 | DN80~100 | DN50~65 | DN100~200 |
| DCL-Ex20 | DN125~150 | DN80~100 | DN250~300 |
| DCL-Ex40 | DN200 | DN125 | DN350~450 |
| DCL-Ex60 | DN250 | DN150 | DN500~600 |
