DN25 Sanitary Ball Valve

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
High Light

DN25 Sanitary ball valve


1/4 turn Sanitary ball valve

Leave a Message
Product Description

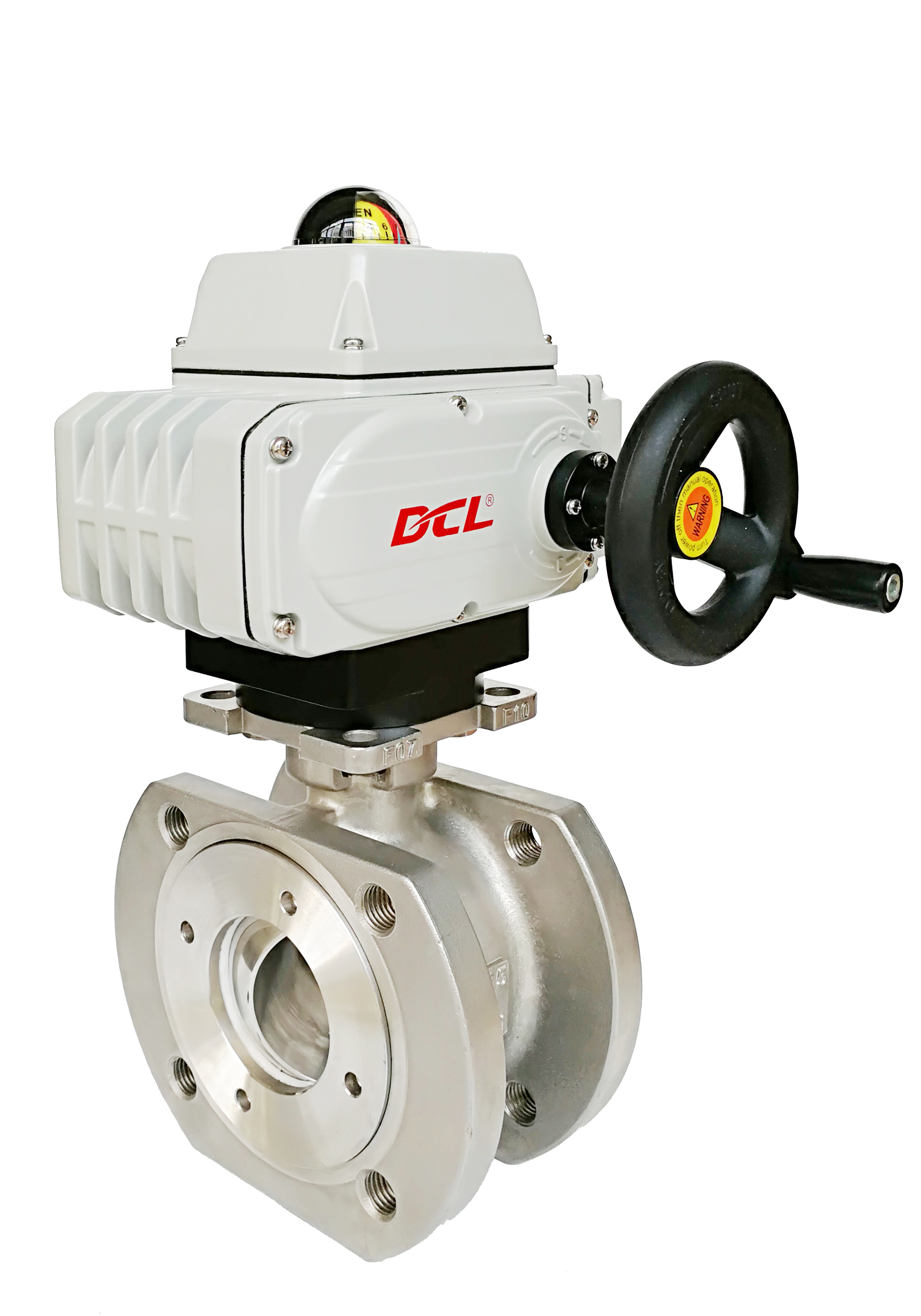

High purity electric actuated ball valve for chemistry / gas / food & beverage / pharmacy

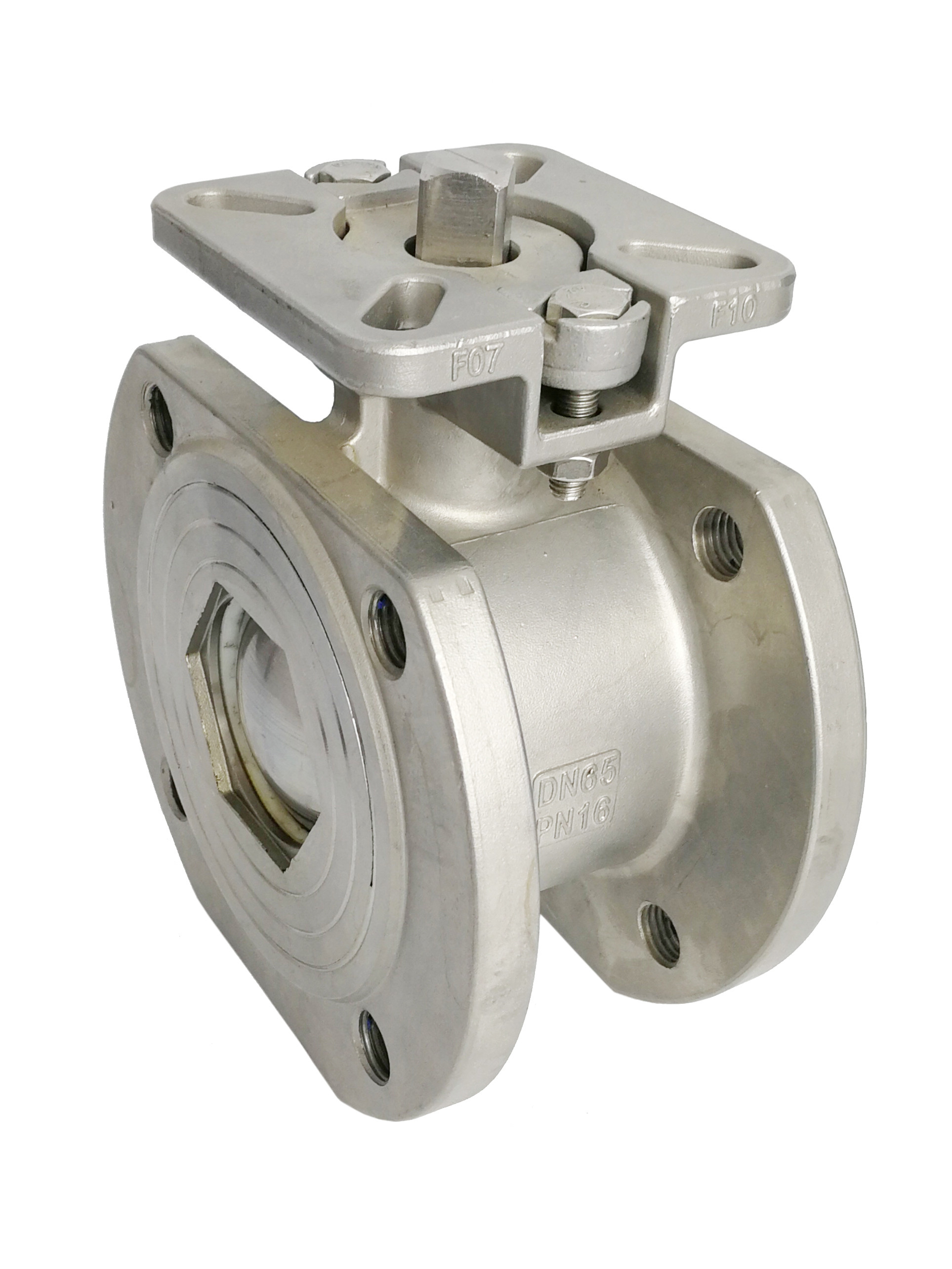

Sanitary ball valve

  • SS304(SF8), SS304L(SF3), SS316(SF8M), SS316L(SF3M) material available
  • Standard electronic polishing to make surface smooth and clean
  • Acid and high temperature resistance
  • Size from DN25 to DN100, 1” to 4”
  • PTFE seal standard
  • Blowout proof stem
  • Top flange ISO 5211 direct mounting

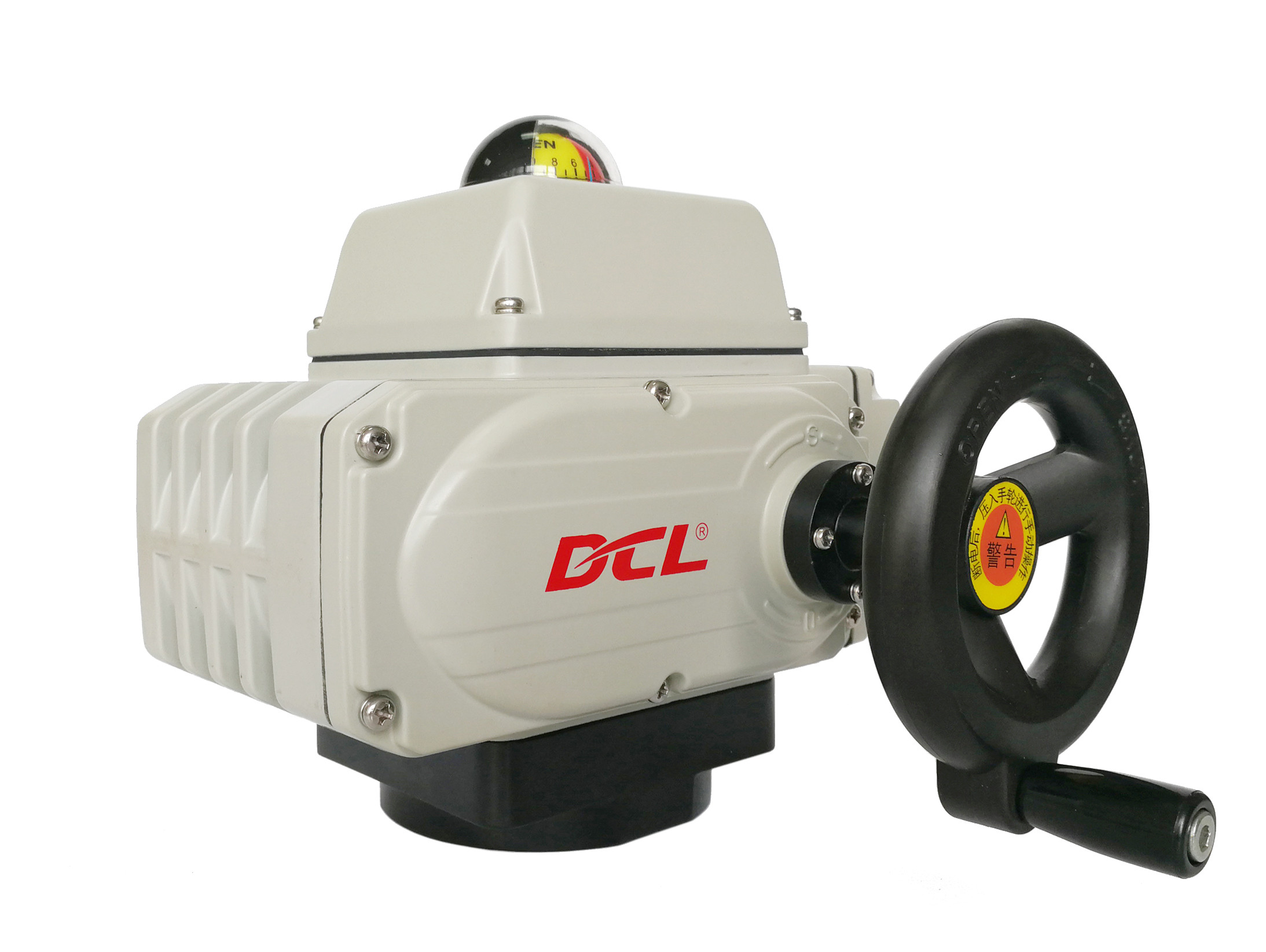

Electric actuator

  • 1/4 turn operation with mechanical limits
  • All bronze alloy worm sector gear is very durable and resistance to high force friction
  • Over 10000 time full open and close life cycles with full rated load with duty rate 80%
  • Corrosion protection robust aluminum alloy with thermally bonded polyester coating
  • Visual valve position indicator
  • Two electric limit switches to confirm valve position, no additional brake required
  • Allen handle manual override
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested



DCL electric sanitary ball valves are widely used for winery, beverage and pharmacy industries etc., those who require very strict sanitary environments. So the material of valve must be stainless steel. Electronic polishing is standard process for sanitary valves, to avoid medium accumulation area and potential pollution.




Actuator Type Butterfly Valve(PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200
