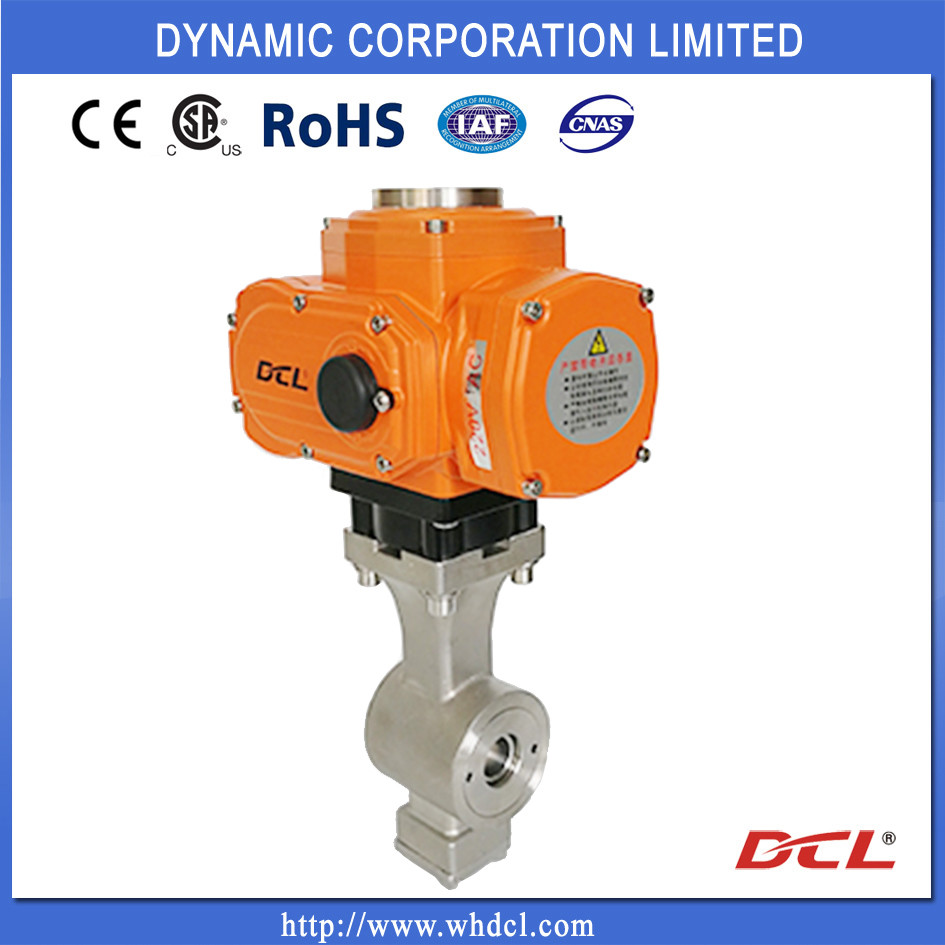

Direct Mounting Actuator CF3M Electric Actuated Ball Valve
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | CF3M Electric Actuated Ball Valve,240psi Electric Actuated Ball Valve |
||
|---|---|---|---|
Product Description

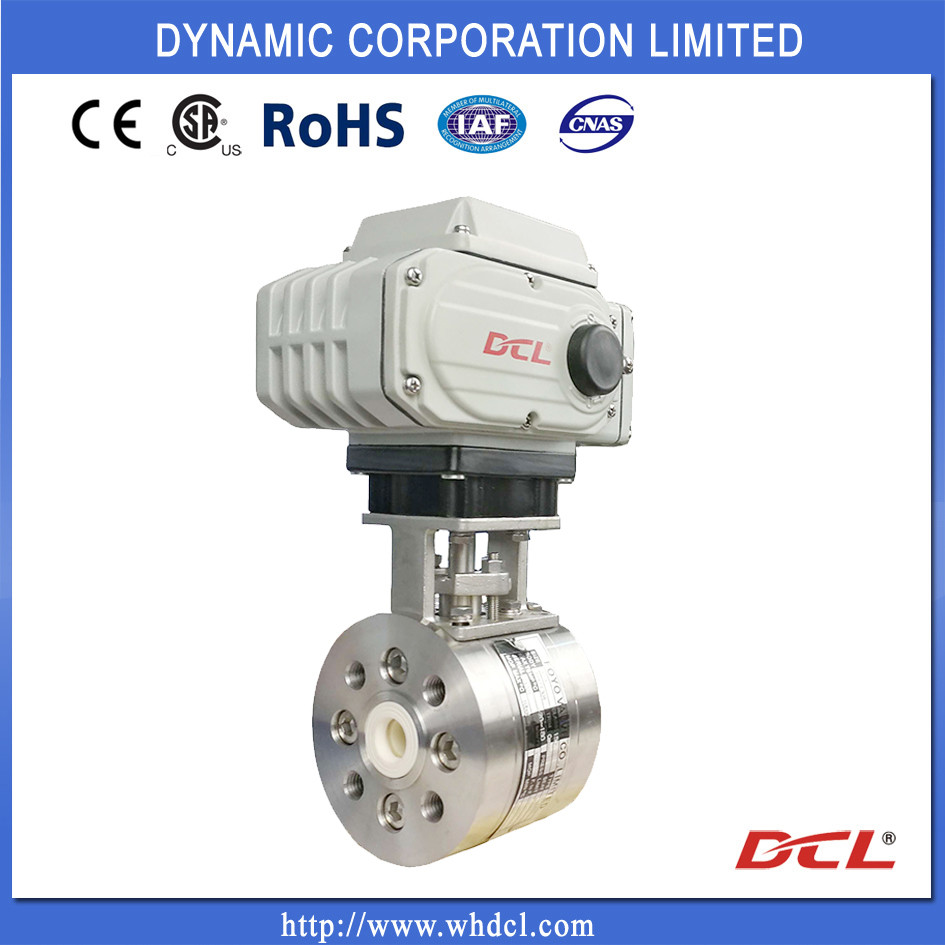

Electric actuated ultra-short electric actuated ball valve / wafer type / direct mounting with actuator
Specification
| Actuator Type | Butterfly Valve(≤PN1.0MPa) | Ball Valve(≤PN1.6MPa) | Vent Valve(≤PN0.1MPa) |
| DCL-02 | ≤DN40 | ≤DN32 | |
| DCL-05 | DN50~65 | DN40 | DN50~80 |
| DCL-10 | DN80~100 | DN50~65 | DN100~200 |
| DCL-20 | DN125~150 | DN80~100 | DN250~300 |
| DCL-40 | DN200 | DN125 | DN350~450 |
| DCL-60 | DN250 | DN150 | DN500~600 |
| DCL-100 | DN300 | DN200 | DN700~800 |
| DCL-160 | DN350~400 | DN250 | DN900 |
| DCL-250 | DN450~600 | DN300~350 | DN1000~1200 |
Features
Ultra-short ball valve
- Thin type super short integral design for 2-way and 3-way ball valve
- WCB carbon steel, CF8(SS304), CF8M(SS316), CF3M (SS316L) stainless steel available
- Pipe pressure from 1.6Mpa to 10Mpa, 240psi to 1500psi.
- Tapered stem seal design and V ring packing to accomplish superior leak protection
- High cycle ISO 5211 mounting pad for easy automation
- Blowout proof stem design
- Wafer type and flanged type available
- Size from DN15 to DN150, 1/2” to 6”
Electric actuator
- 90° operation with adjustable mechanical limits
- Heavy duty induction motor with thermal overload protection
- Over 10000 times full range long time life cycle with full rated loaded
- High performance electromagnetic compatibility (EMC), passed 4000VAC EFT, 4000VAC ESD, 2500VAC power surge tests for modulating type
- Continuous stable operation in 85℃/85% humidity test for 640 hours
- All metal gear train with all bronze alloy worm gear, self-locking at any position
- Rugged IP67 aluminum alloy enclosure with powder coated
- Visual position indicator, flat or dome view available
- Manual override with Allen wrench or Handwheel
- CSA certificated per UL and CSA standard/CE marked/RoHS 3.0 tested
Description
DCL super short electric actuated ball valves are widely used from chemical, pharmaceutical, winery and brewery industries. Both valves and actuators are very compact and light weighted. The distance between seat and end is shorter to make the media retention to be lower. Even after long time use, the flow and the torque of valves will not change too much. So ultra-short ball valves are very suitable for medium containing fine particles.
