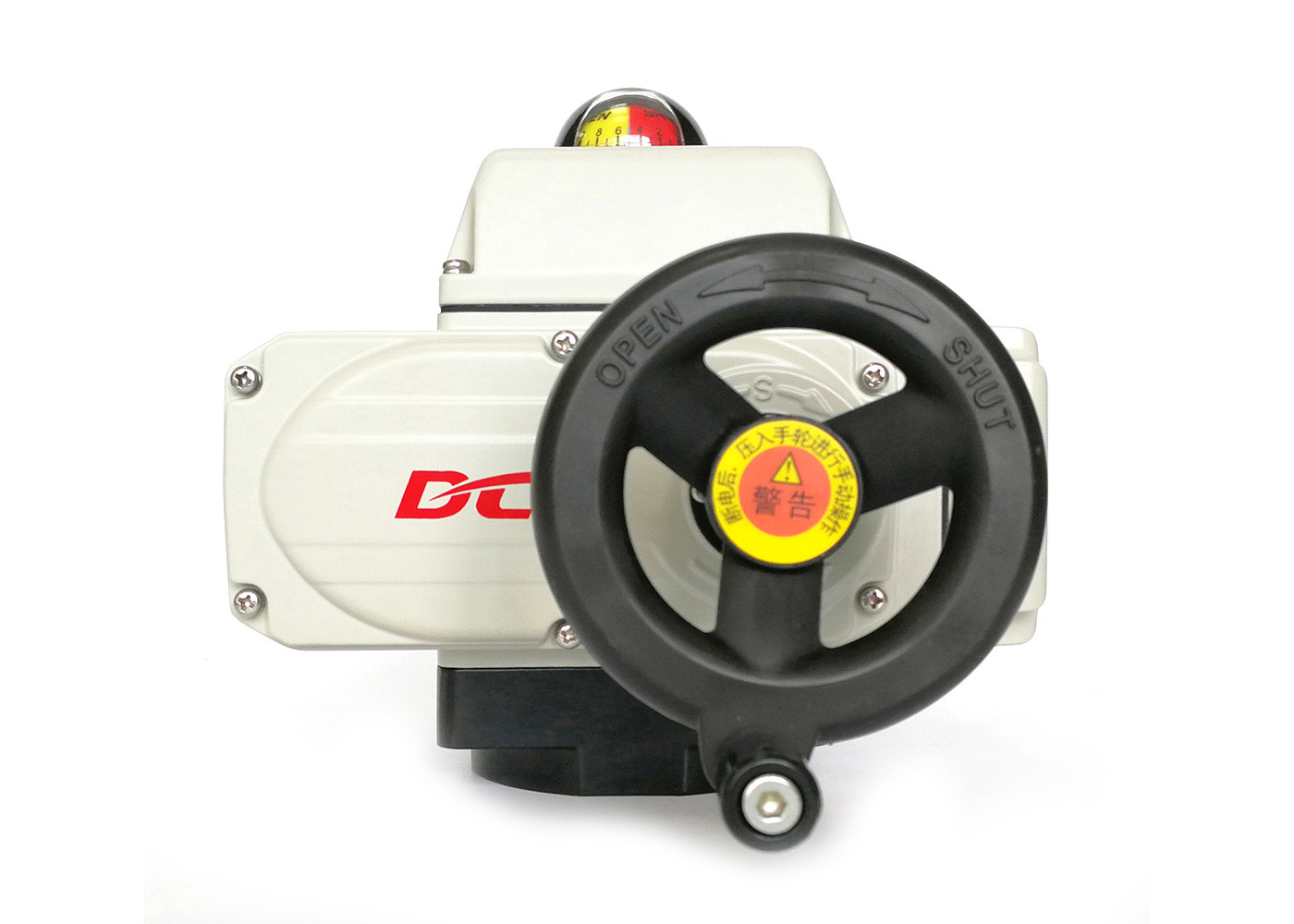

80Nm / 2S 90W Quick Open Electric Actuator

  • 80Nm / 2S 90W Quick Open Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-K40
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power AC24V/AC110V/AC220V Standard Torque 80Nm/2S ; 160Nm/4S ; 330Nm/8S
Type On-off Protection Class IP67
Ambient Temperature -25℃~+55℃ Motor Power 90W
Medium Gas/Oil/Water/Other Material Of Seal Surface Soft Sealed
Rated Current 6.80A/1.12A/0.57A Connection Form Flange
Leave a Message
Product Description

Features

  • 1/4 turn operation with adjustable mechanical limits
  • Two auxiliary limit switches to confirm valve position
  • Antirust passivation aluminum alloy enclosure with external power coated
  • Non-ventilated motor with high starting torque and small inertia force
  • All metal gear train and bronze alloy worm gear drive
  • Visual valve position indicator
  • Manual override
  • Standard ISO5211 direct installation



Description

DCL quick open electric actuators can add two SPDTs to confirm valve positions. All limit switches are made by Omron Japan, with 100,000 times life cycles and above. Patent designed block adjustment from upper side, not from side end, to save field adjustment time. All electronics and wiring components such as cables and terminals are tested and certified by CSA per UL/CSA standard, tested by SGS per CE standard, CE marked.



Specification

Type DCL-K40
Power Supply AC24V AC110V AC220V
Motor Power 90W
Max Current 6.80A 1.12A 0.57A
Torque/Time 80Nm/2S 160Nm/4S 330Nm/8S
Avaliable control circuit Types of A/B
Turning Angle 0～90° Adjustable
Total Weight 9.5kg
Insulating Resistance 100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute     AC110/220V:1500V 1minute
Protection Class IP67
Installation Angle 360° at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors
Ambient Temperature -25～+55℃
Optional Function Heater/Dome indicator/Handle




80Nm / 2S 90W Quick Open Electric Actuator 0         80Nm / 2S 90W Quick Open Electric Actuator 1

80Nm / 2S 90W Quick Open Electric Actuator 2
