24V DC Rotary Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-10GE/40GE
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Modulating Type DC Rotary Actuator Power Supply 24VDC
Type Quarter Turn Actuator Motor Heavy Duty DC Brushless Motor
Motor Power 30W/70W Feature Weatherproof
High Light

24V DC rotary actuator

,

70W DC rotary actuator

,

dcl Quarter turn actuator

Leave a Message
Product Description

DCL-10GE 40GE dimension and parameters.pdf

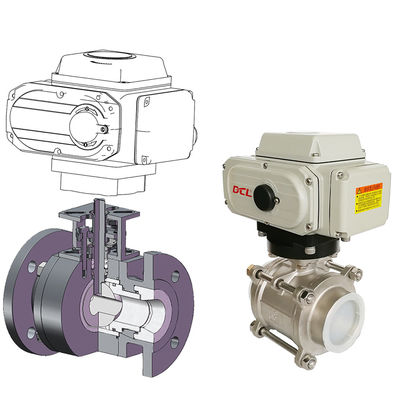

Water hammer phenomenon avoidable DC rotary actuator / modulating type



Specification:

Performance Parameters
Type DCL-10GE DCL-40GE
  DC24V±10% DC24V±10%
Motor Power 30W 70W
Max Current 3.3A 1.8A 8.9A 6.6A
Action Time 15S 30S 15S 30S
Output Torque 0100Nm Optional 100~400Nm Optional 100~600Nm Optional
Total Weight 4.5kg 9.5kg
Input Signal 420mADC
Output Signal 420mADC
Basic Error no more than ±1%
Reciprocating Error No more than 1%
Dead Space 0.5~5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator 1%
Turning Angle 0900 Adjustable
Insulating Resistance 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minutes
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -25+55
Optional Function Heater/Passive contact switch/Dome indicator
Action Time: 15S/30S
Name: Modulating Type DC Rotary Actuator
Output Signal: 4-20mADC
Motor: Heavy Duty DC Brushless Motor
Installation Angle: 360°
Total Weight: 4.5KG/9.5KG
Protection Grade: IP67 NEMA4/4X
Output Torque: 0~600Nm
Input Signal: 4-20mADC
Type: Quarter Turn Actuator
Power Supply: 24VDC
Motor Power: 30W/70W
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Feature: Weatherproof





Features

  • Quarter turn operation modulated by 24VDC power
  • Torque can be precisely setting within a certain range by control pack
  • Heavy duty DC brushless motor with low temperature rise during production
  • Torque test control and over torque protection by current
  • Compact smart resin plastic packaged drive controller
  • Weatherproof IP 67 robust aluminum alloy enclosure with powder coated
  • Manual override with Allen wrench or handwheel
  • Standard ISO5211 multi flange valve mounting
  • UL standard/CSA listed/CE marked/RoHS 3 complied



Description



Water hammer phenomenon is a pressure surge or wave caused when a fluid, usually a liquid but sometimes also a gas, in motion is forced to stop or change direction suddenly. This phenomenon commonly occurs when a valve closes suddenly at an end of a pipeline system, and a pressure wave propagates in the pipe. DC brushless motor equipped actuator can be used to lighten water hammer phenomenon when closing valve, Because DC brushless motor start from a very low speed with large torque, and gradually accelerate to normal speed. This can also reduce start-up current to extend life span.

Dehumidify heater is optional to protect actuator against condensation. Actuators are Actuators are tested to rigorous UL and CSA standards and certified by CSA.



Modulating DC Brushless Quarter Turn Electric Actuator
