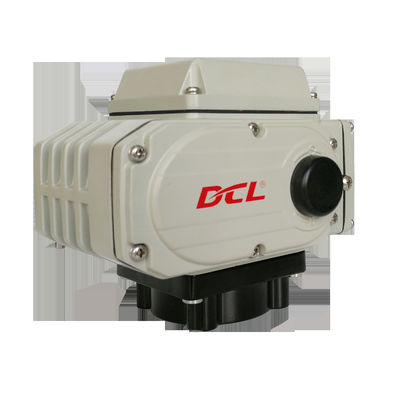

Modulating Adjustable 1200 Times IP67 Smart Electric Actuator

  • Modulating Adjustable 1200 Times IP67 Smart Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL E model
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Torque 50Nm To 2500Nm/442in.lbs To 22125in.lbs Standard Time 20S To 75S
Input Signal 4-20mADC/1-5VDC/2-10VDC Output Signal 4-20mADC
Power Supply 24VAC/110VAV/220VAC Total Weight 2.5KG To 20KG
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Motor Power 10W To 140W
Protection Grade IP67 NEMA4/4X Installation Angle 360°
High Light

IP67 Smart Electric Actuator

,

Modulating Smart Electric Actuator

,

adjustable modulating actuator
Leave a Message
Product Description

Modulating Electric Actuator, Adjustable 1200 Times IP67 Smart Electric Actuator





Description

DCL modulating type electric actuators are S4 intermittent periodic duty operation. Actuator sequential, identical starts, runs and rests cycles with rated load. As the starting current affects temperature rise, if motor is not proper designed, actuator will be easily shut down during high frequently starts by thermal overheat protector in motor and actuator body will be very hot.

In some industry fields those exists two types of input signals, or faces system upgrades, DCL smart modulating type electric actuator can be replacement without changing control pack.All adjustable actuators are rigorous tested by CSA per UL/CSA standard, and SGS per CE standard. Fire safe electric actuators with modulating function is also available.



Specification



Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-160E DCL-250E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 1600Nm 2500Nm
Acting Time 20S 30S 30S 30S 45S 30S 48S 75S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20℃~+55℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.
