Waterproof Micro Gas 1.1A Gate Valve Actuator

  • Waterproof Micro Gas 1.1A Gate Valve Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-MZZ
Minimum Order Quantity 1pc
Price USD200~270/PC
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Multi Turn Actuator Power DC24V
Protection Class IP67 Waterproof Ambient Temperature -25℃~+75℃
Medium Gas/Oil/Water/Other Connection Form Flange
Current 0.6A Environment Humidity ≤95%RH
High Light

Subminiature Multi Turn Actuator

,

1.1A Gate Valve Actuator

,

IP67 waterproof Electric Actuator
Leave a Message
Product Description

Multi-Turn Electric Actuator 24VDC with subminiature volune and super torque 18Nm, for pipe and valve



Multi turn valve actuator is a micro valve actuator that elaborately designed and manufactured by the most advanced technology, it mainly assemble with gate valve. This gate valve disc is wrapped in rubber that could cause deformation and compensation action to attain good seal effect, avoid leaking, rusting. It is widely us in water supply, building, petroleum, chemistry, food, pharmaceuticals, light textile, electrical, shipping industry, metallurgy, energy systems.



Specification:

Type DCL-MZZ
Power DC24V
Motor Power 20W
Rated Current 1.1A
Standard Time/Torque 18Nm
Optional Time/Torque ╲
Turning Angle 3r
Total Weight 1.2Kg
Insulating Resistance 100MΩ/250VDC
Withstand Voltage Class 500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25℃~+55℃
Fuse 2A



Technique Parameters:
1. Electric level, pulse control signal
2. Full-open , Full close postion output signal.
Electric level out put: DC 24V. Low Electric Level effective.
3. Voltage: DC24V±15%
4. Current: 0.6A
5. Output torque: 18Nm
6. Temperature: -25~75℃
7. Enviroment Humidity:≤95%RH





Application


DCL series electric actuator is widely used in the industrial field, such as petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and the automation system for the building, and is fully in customers' good graces and trust-worthy. Many customers in various industrial lines with their practice over the years confirm that DCL series products of electric actuator present outstanding in reliability, durability and after-sale service, as well as in quality.

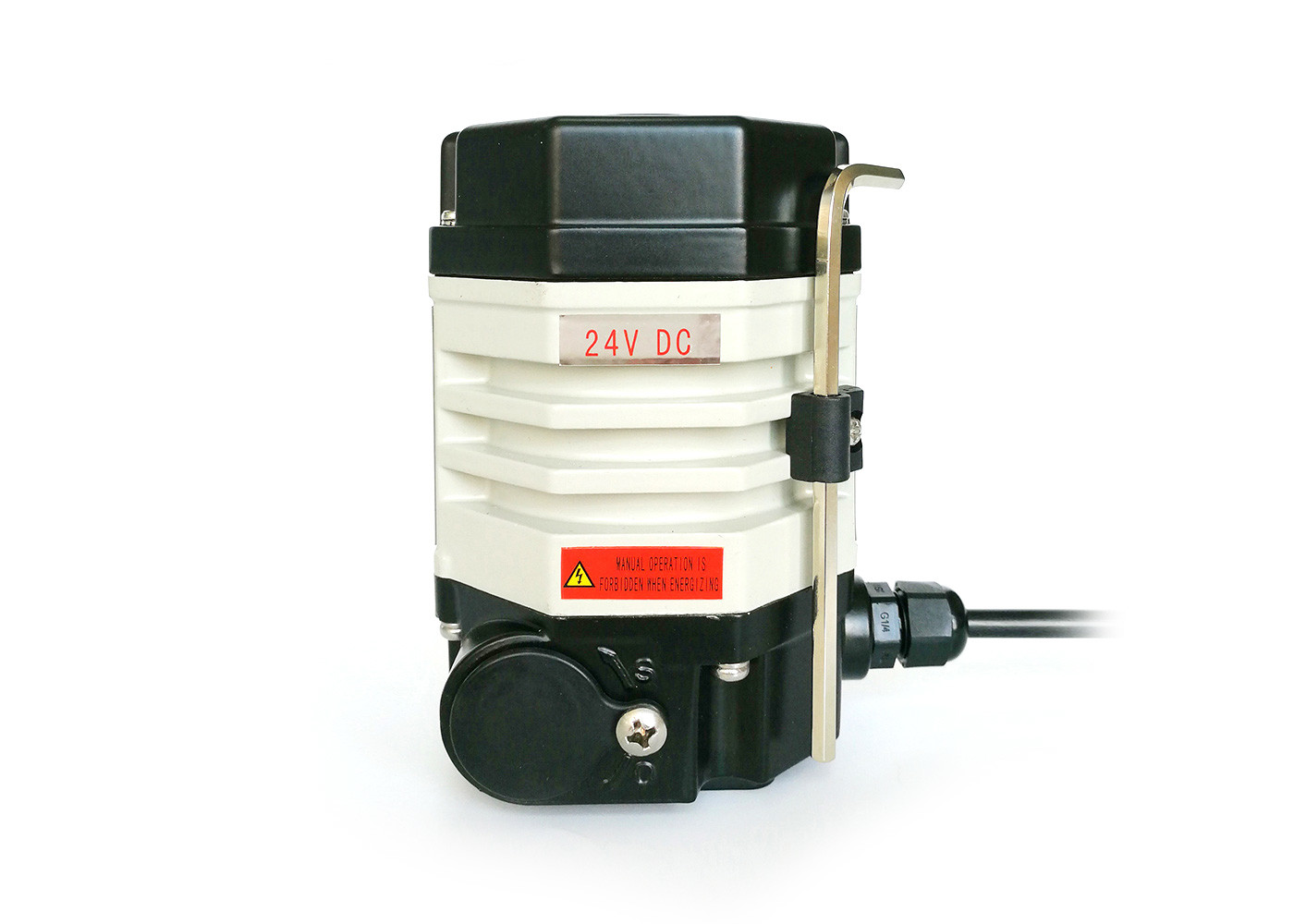

Waterproof Micro Gas 1.1A Gate Valve Actuator 0

Waterproof Micro Gas 1.1A Gate Valve Actuator 1

Company profile



Dynamic Corporation Limited is a stock holding/high-tech enterprise with self-support export authority, which is engaged in research, development, manufacture and sale for electric actuator, electric valve and its automatic control system. The main leading product, DCL series electric actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance, superior quality, easy operation and so on.
