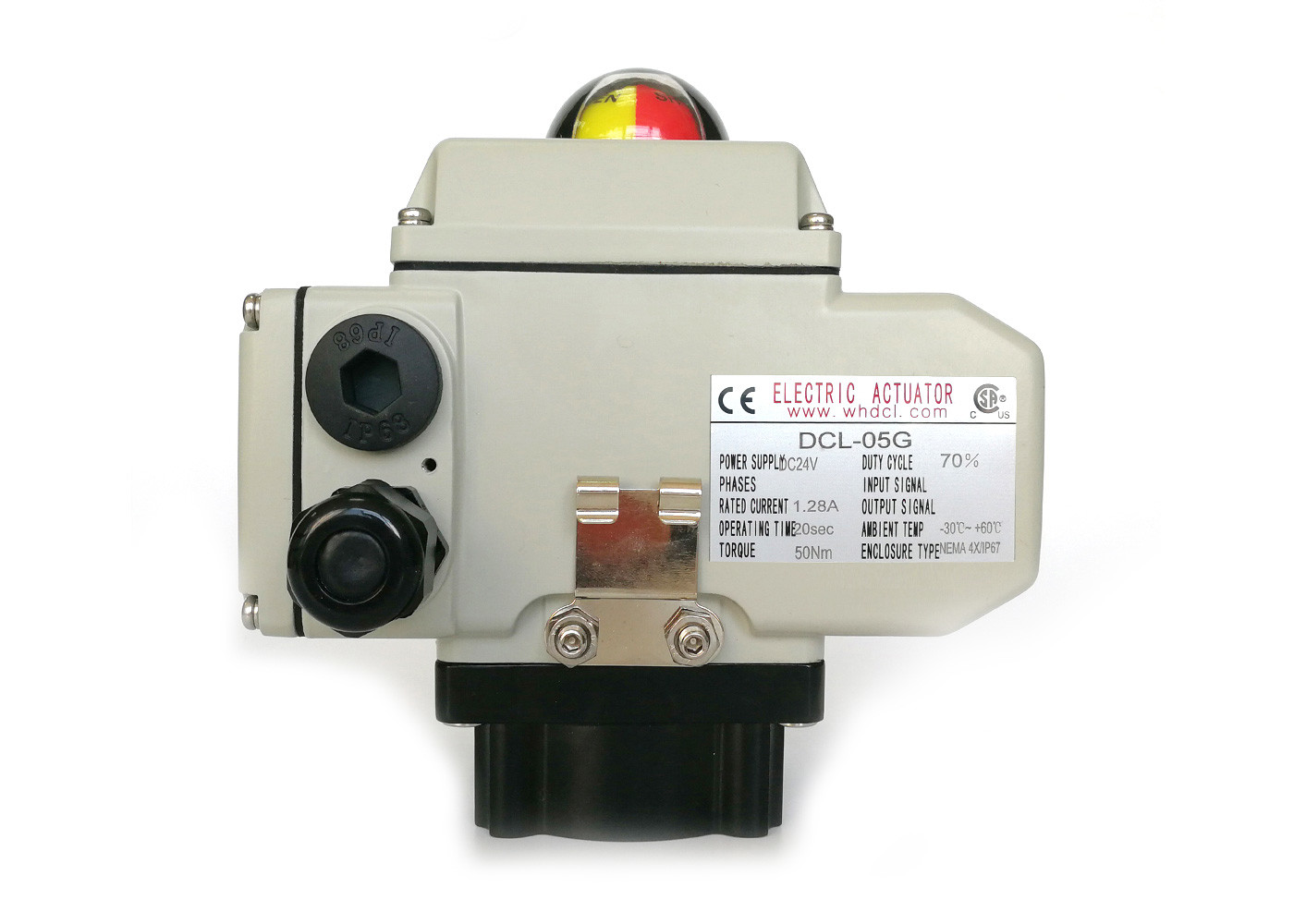

Damper Quarter Turn 50Nm CSA DC Rotary Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-G Series
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name DC Rotary Actuator Type Quarter Turn Actuator
Feature Compact Electric Actuator Standard Time 20s To 45s
Power Supply 24VDC / 12VDC Optional Use For Farm Ventilator
High Light

CSA DC rotary actuator

,

50Nm rotary actuator

Leave a Message
Product Description

Damper and ventilation louvre used DC rotary actuator / over 10000 life cycles / floating point control



Description



DCL compact electric actuators are widely used for damper control, such as farm ventilator,factory ventilator, boiler ventilator etc. We can also provide customized swinging arm production and waterproof cable connection. The compact and light weight design can be easily installed to any frame or supporter. Permanent lubricated worm gear do not need any field maintenance after installation. Self-locking function can keep damper at any position by shut off power.

Actuators are rigorous tested and certificated by CSA per UL and CSA standard, by SGS per CE and RoHS 3 standard.





Specification:



Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm   10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm   19.5Kg
DCL-250 75S/2500Nm   20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm   3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg
Name: DC Rotary Actuator
Standard Torque: 50Nm To 600Nm
Standard Time: 20s To 45s
Total Weight: 1.2KG To 10KG
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Protection Grade: IP67 NEMA4/4X
Type: Quarter Turn Actuator
Feature: Compact Electric Actuator
Power Supply: 24VDC / 12VDC Optional
Motor Power: 13W To 70W
Installation Angle: 360°





Features

  • Quarter turn operation with compact design
  • ISO 5211 multi flange mounting well coupled to soft seal, metal seal, PVC butterfly valve
  • Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
  • Self-locking worm gear drive prevents back driving to keep no leak of valve
  • Water proof IP67 and NEMA 4X aluminum alloy enclosure with C3 level corrosion resistance
  • Very compact size for 360° installation, with water proof connector and cable optional

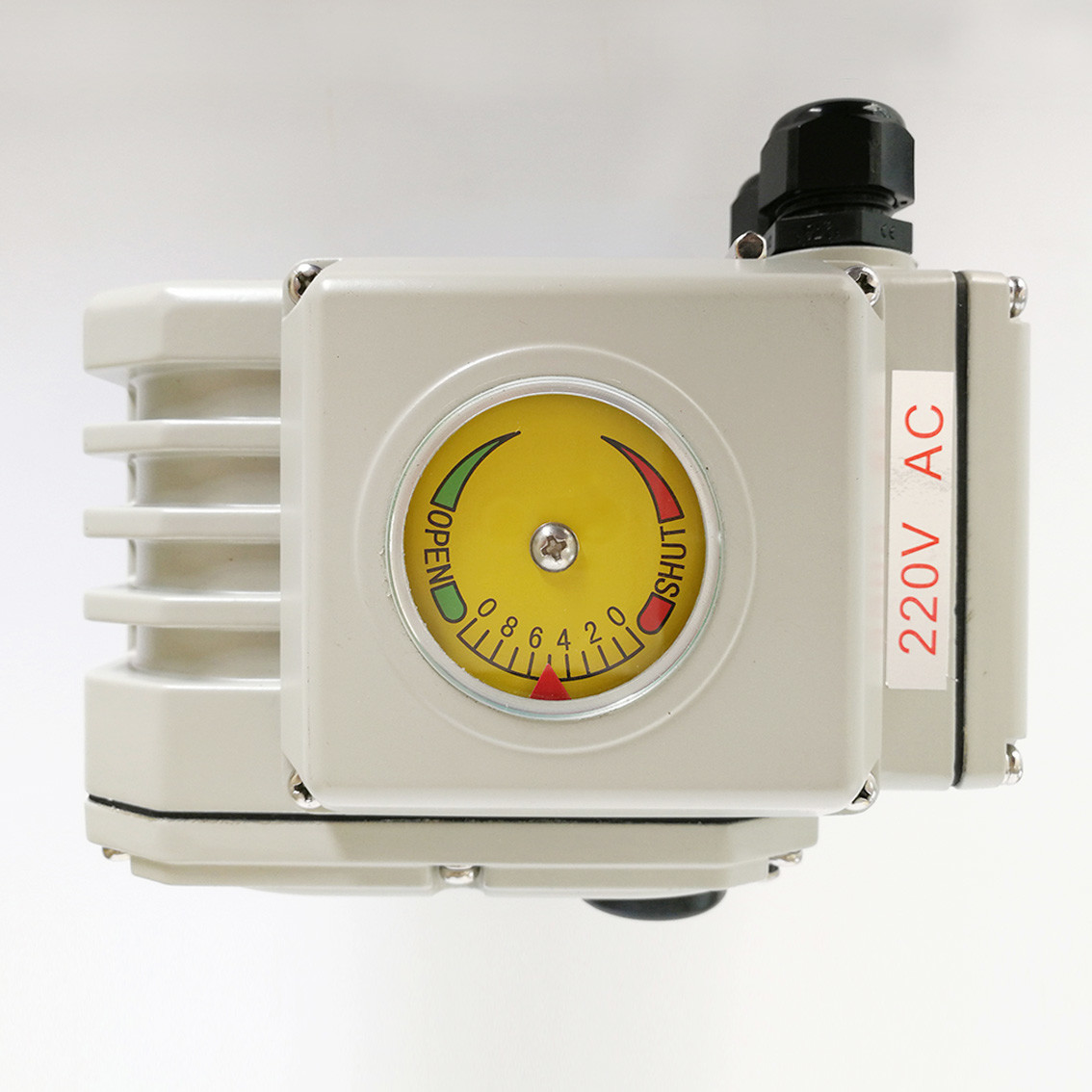

  • Visual position indicator, flat or convex optional
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested
