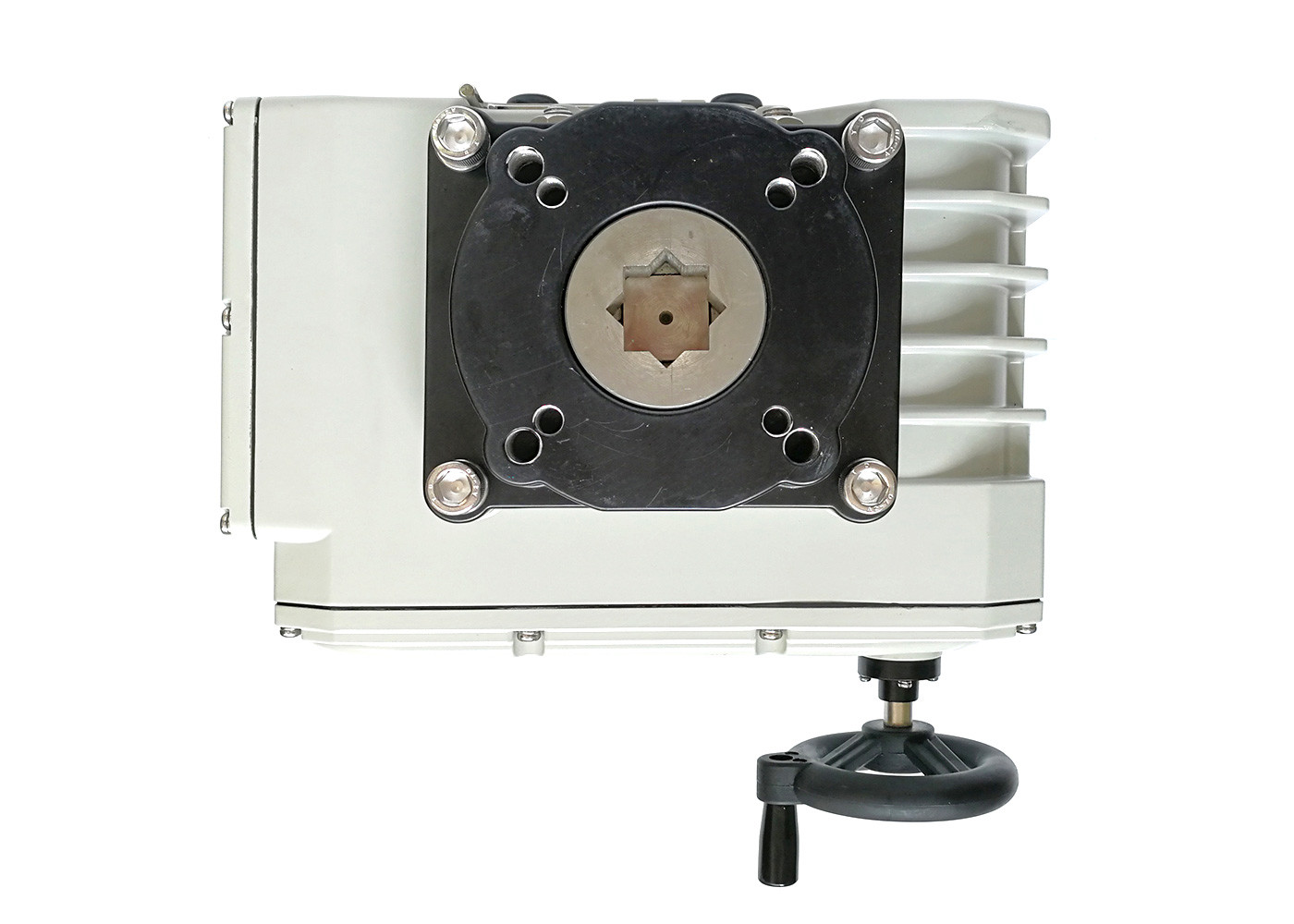

IP67 Waterproof 2500Nm 75S Compact Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL all electric actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name On Off Type Compact Actuator Standard Torque 18Nm To 2500Nm
Standard Time 15S To 75S Feature Over 10000 Full Range Life Cycles
Total Weight 1.2KG To 20KG Motor Power 6W To 140W
High Light

IP67 waterproof Compact Actuator

,

75S Compact Actuator

,

2500Nm Valve Actuator

Leave a Message
Product Description

On off type compact actuator with over 10000 full range life cycles in rated torque



Features

  • 1/4 turn operation with self-locking
  • Used for flap valve and ventilation butterfly valve as well, size up to DN1200/48”
  • Hard high pressure die cast aluminum housing with weather proof IP67 and NEMA 4X
  • Heavy duty motor with thermal overload protection/duty rate 80%
  • Over torque protection by torque test function of smart full potted controller
  • Over 10000 times full range life cycle with full rated load
  • Visual position indicator for valve turning angle
  • ISO 5211 multi flange mounting well coupled to soft seal, metal seal, PVC butterfly valve
  • Standard manual handle
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested



Specification:



Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm   10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm   19.5Kg
DCL-250 75S/2500Nm   20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm   3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg

Name: On Off Type Compact Actuator
Standard Time: 15S To 75S
Installation Angle: 360°
Protection Grade: IP67 NEMA4/4X
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Standard Torque: 18Nm To 2500Nm
Power Supply: 24VAC/110VAV/220VAC/380VAC/24VDC
Feature: Over 10000 Full Range Life Cycles
Total Weight: 1.2KG To 20KG
Motor Power: 6W To 140W





Description



DCL compact electric actuators are most commonly used in HVAC field with butterfly valve. In many building automation systems, electric actuators are widely used to control indoor temperature, air conditioner air volume, water flow, condensate flow and hydraulic balance etc.

Actuator has been rigorous tested by CSA per UL and CSA standard. The duty rate can be over 70% for all series. The EPS system is self-calibrating which virtually eliminates "hunting" and provides an output position monitoring signal as standard.



Weather Proof 360° CSA Quarter Turn Electric Actuator

Weather Proof 360° CSA Quarter Turn Electric Actuator
