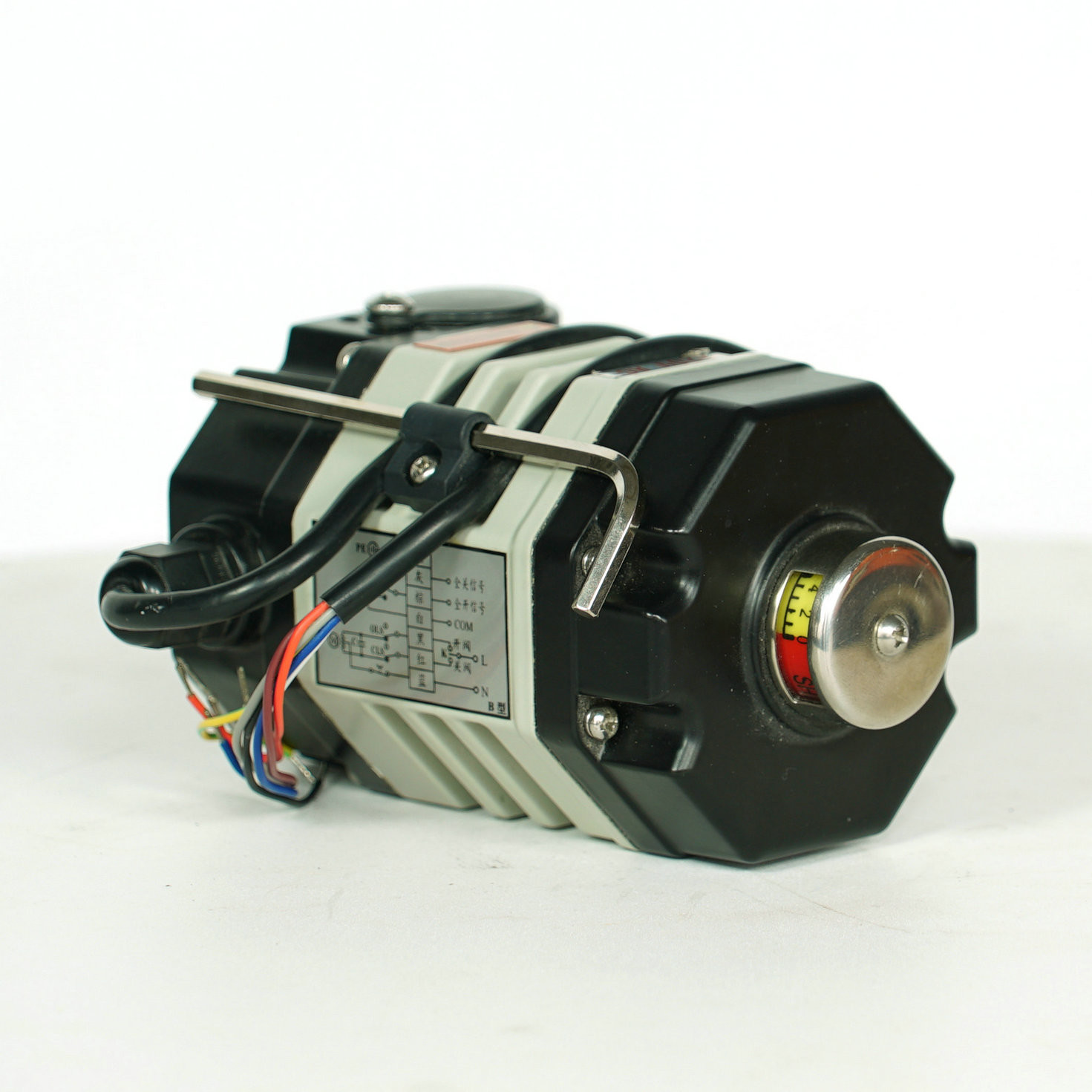

NEMA 4X Mini PVC Diaphragm Valve Multi Turn Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-MZZ
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Multi Turn Electric Actuator Standard Torque 5Nm To 18Nm
Use For PVC Diaphragm Valve Motor Power 6W To 10W
Protection Grade IP67 Weather Proof Feature Mini Size
High Light

24VDC Butterfly Valve Actuator

,

PVC Diaphragm Valve Actuator

,

NEMA 4X Valve Actuator

Leave a Message
Product Description

Mini size multi-turn electric actuator for PVC diaphragm valve/shut-off valve/needle valve



DCL-MZZ dimension and parameters.pdf



Features

  • Turns and torque can be set to match with different size of diaphragm valve
  • Heavy duty DC brushless motor provides large torque and high speed with small inertia force
  • High pressure die cast aluminum alloy housing with external power coated
  • IP 67/NEMA 4X sealing grade/weather proof for indoor and outdoor use
  • Smart mini control board inside to provide over current protection
  • Permanent lubricated gear drive without maintenance
  • Double direction over torque protection



Mini size multi-turn electric actuator for PVC diaphragm valve/shut-off valve/needle valve



Standard Torque: 5Nm To 18Nm
Turns: 3r/5r/7r Optional
Total Weight: 1.2KG
Power Supply: 24VDC
Installation Angle: 360°
Protection Grade: IP67 Weather Proof
Standard Speed: 5r/min
Use For: PVC Diaphragm Valve
Name: Multi Turn Electric Actuator
Motor Power: 6W To 10W
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Feature: Mini Size





Description

DCL-MZZ electric actuators can be used to motorize PVC diaphragm valves. PVC diaphragm valves are typically used for on-off control of abrasive or liquids with suspended solids and other media compatible with the materials of construction. Linear sealing motion provides linear flow control characteristics. Thus inching mode of actuator can be used to precisely control flow.

The double direction over torque protection function can prevent actuator over screwed the PVC valve. The over-torque shut off valve can make sure the valve sealing very well and open smoothly.
