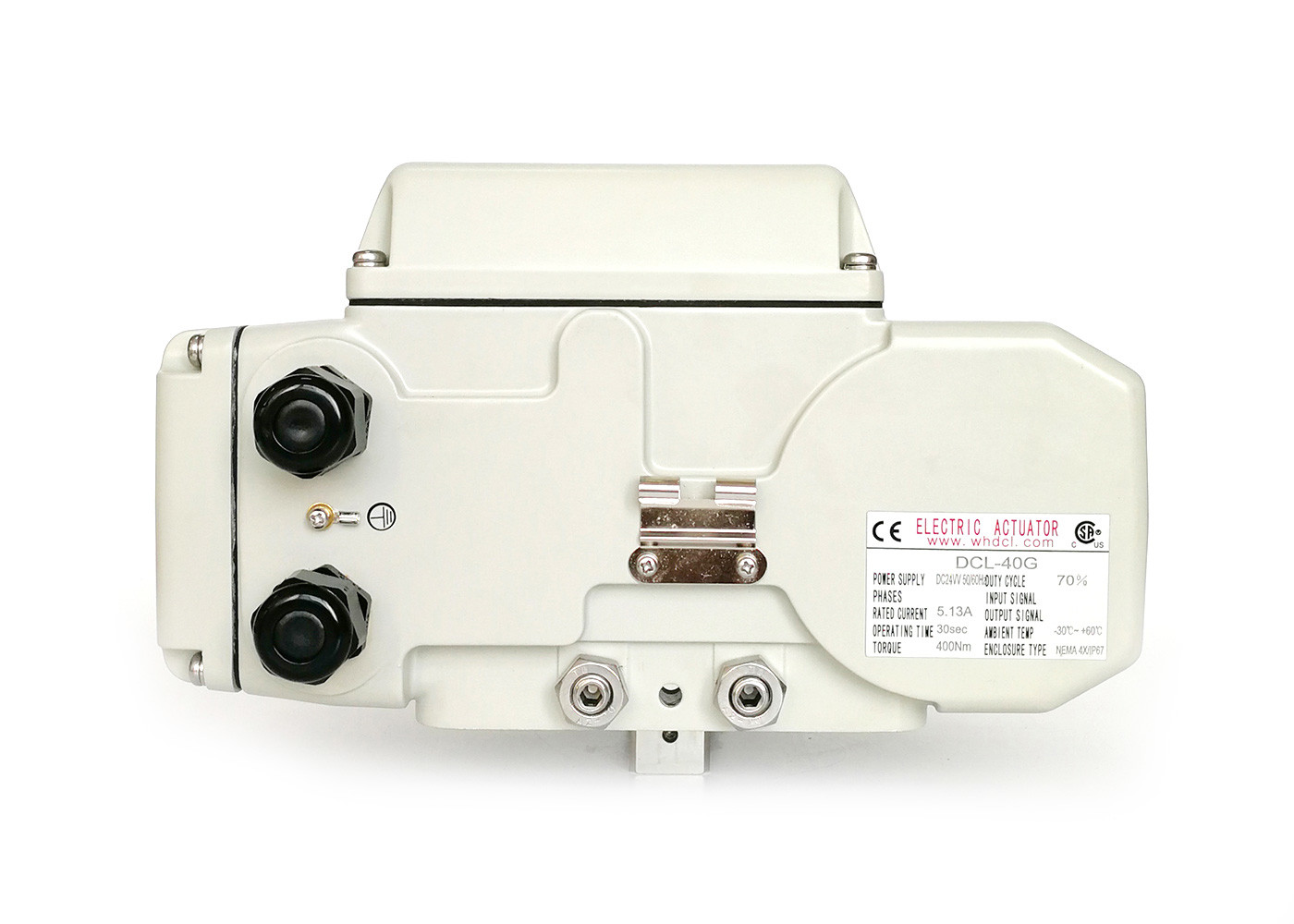

Compact Watertight DC24V IP68 Rotary Valve Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-10GE/40GE
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Action Time 15S/30S Output Torque 0~400Nm
Input Signal 4-20mADC Output Signal 4-20mADC
Power Supply 24VDC Installation Angle 360°
Motor Power 30W/70W Total Weight 4.5KG/9.5KG
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 NEMA4/4X
High Light

IP68 Rotary valve Actuator

,

DC24V valve Actuator

Leave a Message
Product Description

Compact watertight DC rotary actuator with protection against dust and water / IP68



Features

  • Quarter turn operation modulated by 24VDC power
  • Torque can be precisely setting within a certain range
  • Heavy duty DC brushless motor with low temperature rise during production
  • Compact smart resin plastic packaged drive controller
  • Stable operation on extra high/low temperature with high humidity
  • Weatherproof IP 67 robust aluminum alloy enclosure with powder coated
  • All metal gears with self-locking worm gear
  • UL standard/CSA listed/CE marked/RoHS 3 complied



Description

DCL compact electric actuators are most commonly used in HVAC field with butterfly valve. In many building automation systems, electric actuators are widely used to control indoor temperature, air conditioner air volume, water flow, condensate flow and hydraulic balance etc.

DCL use heavy duty motor with 80% duty rate that can do more frequently control to make temperature more accuracy. Very long operation life makes after sell maintenance become easy and cost saving. Also, it can be installed indoor or outdoor with resistance to severe environment. Dehumidify heater is optional to help protect actuator against damage caused by condensation. All HVAC used electric actuator are tested to rigorous UL and CSA standards and certified by CSA and CE & RoHS tested by SGS.





Specification



Performance Parameters
Type DCL-10GE DCL-40GE
  DC24V±10% DC24V±10%
Motor Power 30W 70W
Max Current 3.3A 1.8A 8.9A 6.6A
Action Time 15S 30S 15S 30S
Output Torque 0100Nm Optional 100~400Nm Optional 100~600Nm Optional
Total Weight 4.5kg 9.5kg
Input Signal 420mADC
Output Signal 420mADC
Basic Error no more than ±1%
Reciprocating Error No more than 1%
Dead Space 0.5~5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator 1%
Turning Angle 0900 Adjustable
Insulating Resistance 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minutes
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -25+55
Optional Function Heater/Passive contact switch/Dome indicator

Modulating DC Brushless Quarter Turn Electric Actuator
